UNPACK AND INSPECT
Remove the packing from the appliance and inspect for any damage. Ensure that the bricks are positioned correctly and not broken
(see illustration for proper brick arrangement). Make sure that the baffl e board, above the air tubes, is in place and undamaged. DO
NOT remove the baffl e board.
TOOLS AND MATERIALS NEEDED FOR INSTALLATION
You must choose one of the three offered kits:
A) Pedestal Kit (SA180P)
B) Leg Kit (SA180L)
C) Fireplace Insert (SA180i)
Refer to the instructions found inside each kit for proper assembly.
A 7/16” socket wrench
A 5/16” socket (Best if using a power drill and a socket bit)
A pair of pliers or channel-locks
A power drill with an 1/8” drill bit to install sheet metal screws into connector pipe.
Sheet metal screws
A non-combustible fl oor protector as specifi ed in this manual
All chimney and chimney connector components required for your particular venting installation.
PRE-ASSEMBLY

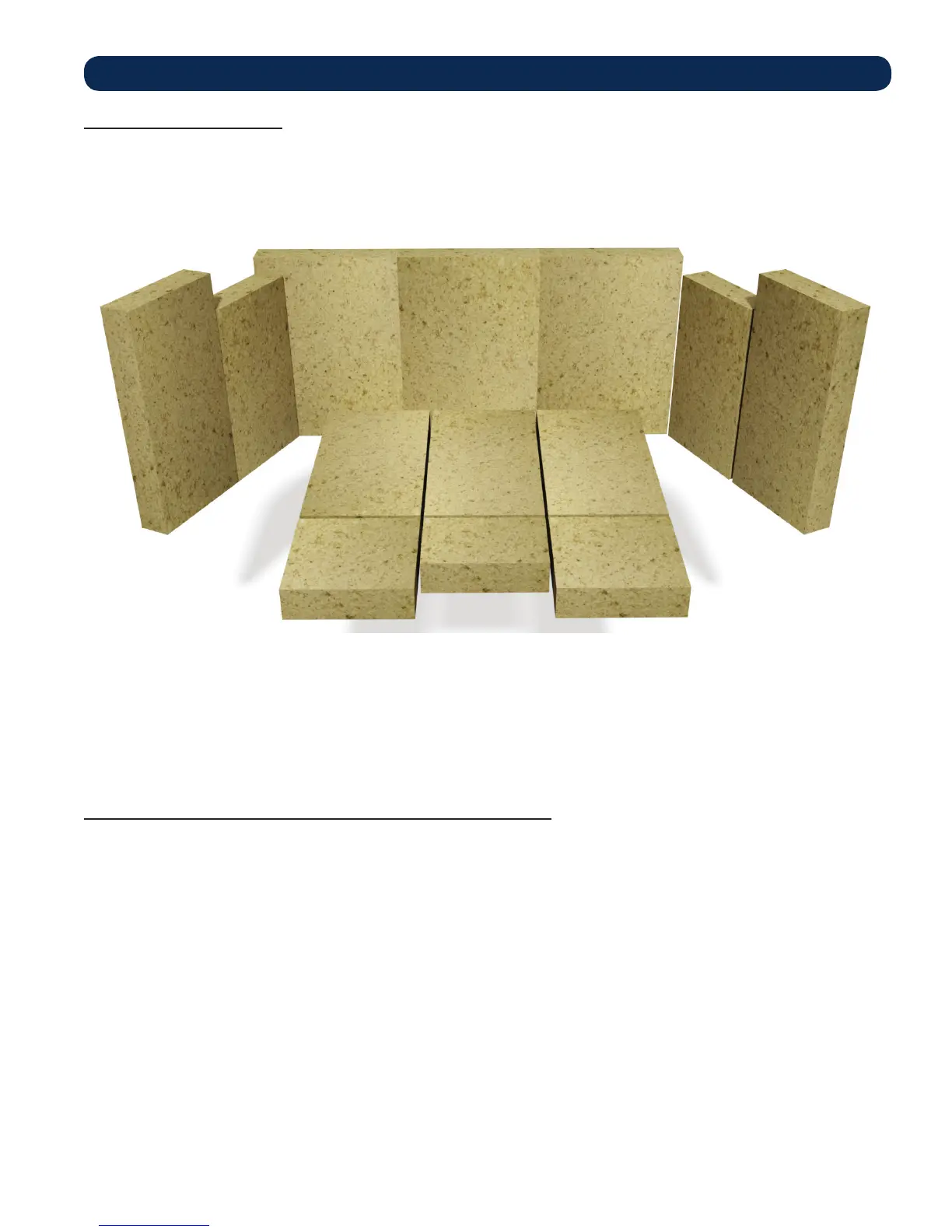

BRICK CONFIGURATION
