Ashley AW180 - Insert Stove Installation; Floor Protector

7
INSTALLATION
K
H
L
J
MM

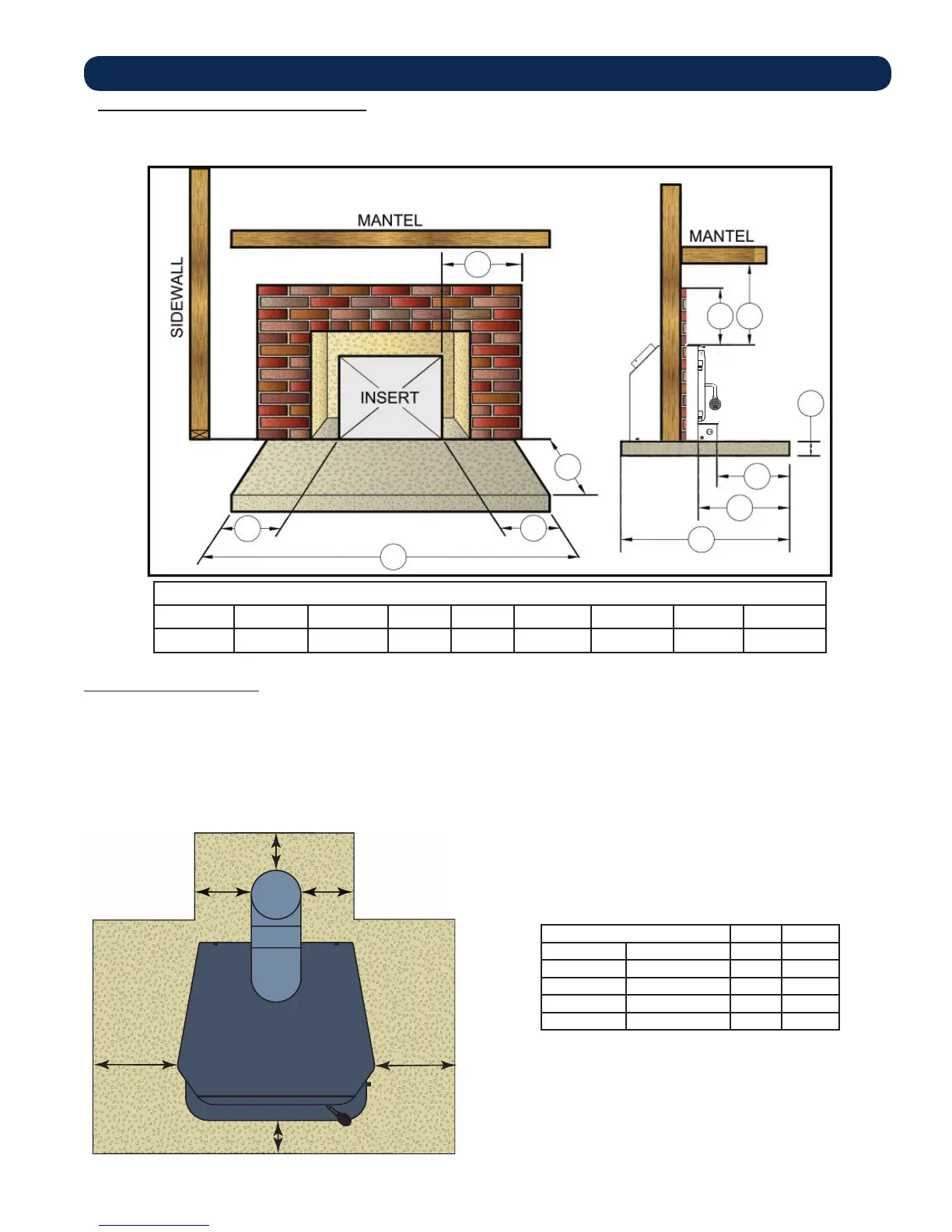

FLOOR PROTECTOR
The stove must be placed on solid concrete, solid masonry, or when installed on a combustible fl oor, on a Type 2 fl oor protector
listed to standard UL 1618 with a minimum R value of 1.03 and a minimum thickness of 1/2” or equivalent. The fl oor protector is
required to provide heat, live ember, and ash protection and must be of a non-combustible, continuous solid surface to protect against
infi ltration of live embers and ash. For UL Listed fl oor protectors, refer to manufacturers instructions for installation directions.
Manufacturers of listed fl oor protectors include Imperial Metal Products and Hy-C among others. To calculate R-Values for alternative
methods, see Alternate Floor Protector Calculation Methods in the back of this manual.
Dimension Inch mm
H* Front 9 229
J Flue rear 2 51
K** Left 8 203
L** Right 8 203
M Flue Side 2 51
 Canadian installations require 18” (457mm)
  Canadian installations require 8” (203mm)
INSERT STOVE INSTALLATION
The installer must attach a metal tag as required by UL1482 Clause 5.1.11 using screws or nails to the fi replace, in a location readily
visible should the fi replace insert be removed, if the fi replace has been modifi ed to accommodate the fi replace insert.
H
B
H
A
E
FG
D
A
I
C
Thermal Protection Requirements
ABCDEF GH I
9
48 32 1/2 9 16 21 8 12
