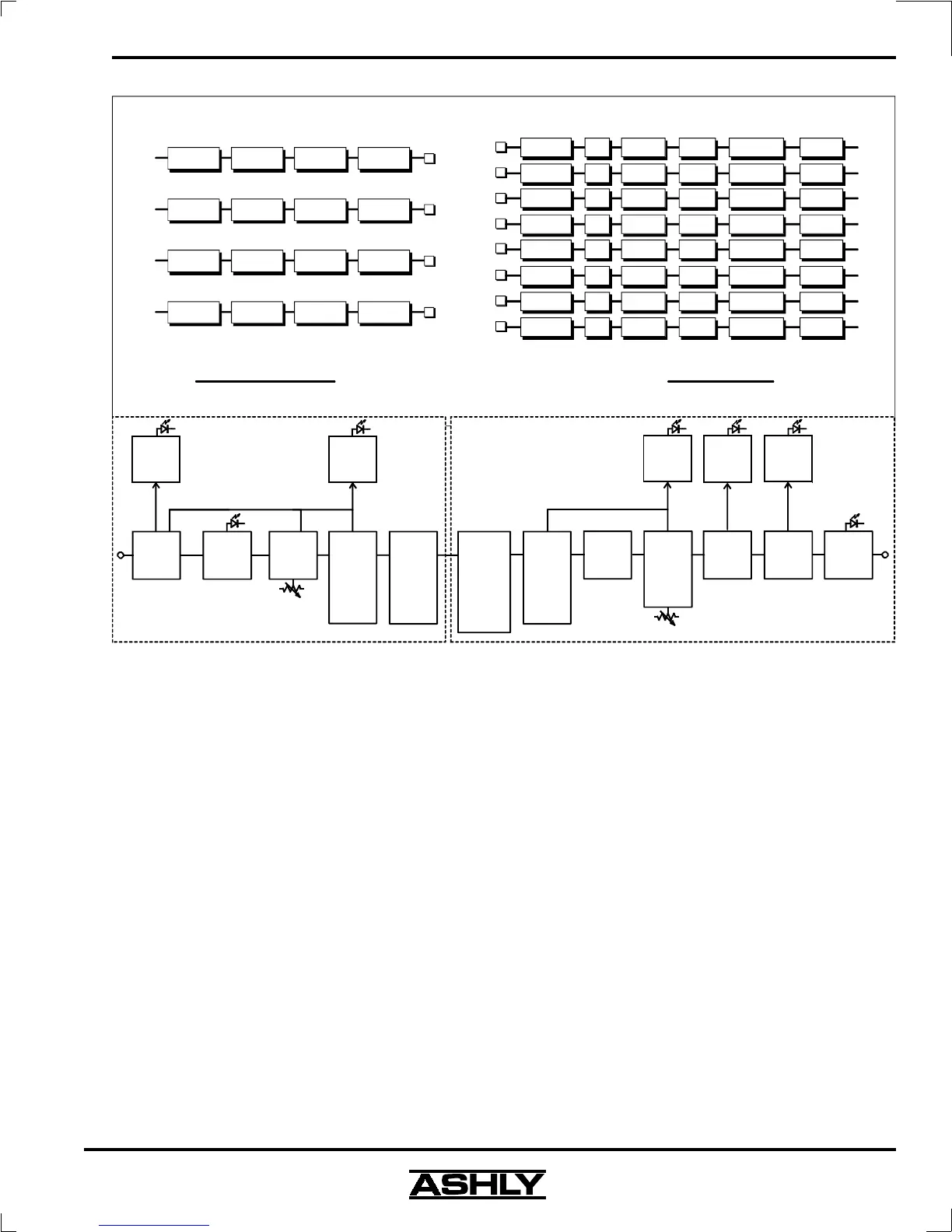

13. BLOCK DIAGRAM
A/D
Input
Mute
Input
EQ
Input
Meter
LEDs
Input Channels A - D
-40 to +12dB
Input
Gain
6 Bands of
Parametric,
1st Order LS ,
2nd Order LS
1st Order H S,
or
2nd Order HS
Input
Clip
Indicator
Output
EQ
4 Bands of
Parametric,
1st Order LS ,
2nd Order LS
1st Order H S,
or
2nd Order HS
-40 to +12dB
Output
Clip
Indicator
0-682ms
Xover
HPF/LPF
12dB BWort h
12dB Bessel
12 dB Link witz
18dB Bworth
18dB Bessel
24dB Bworth
24dB Bessel
24dB Linkwitz
48dB Bworth
48dB Bessel
48dB Linkwitz
Output
Dela
y
Output
Gain/
Phase
Invert
Output
Limiter
Output
Mute
Limiter
Threshold
LED
Software
Output
Meters
D/A
Output Channels 1 - 8
Route In
p
ut
Channels A-D
To Out
p
ut
Channels 1-8
in An
y
Combination
Routin
g
