ASI DataMyte 600 - Page 71

Rev 3 Page 71

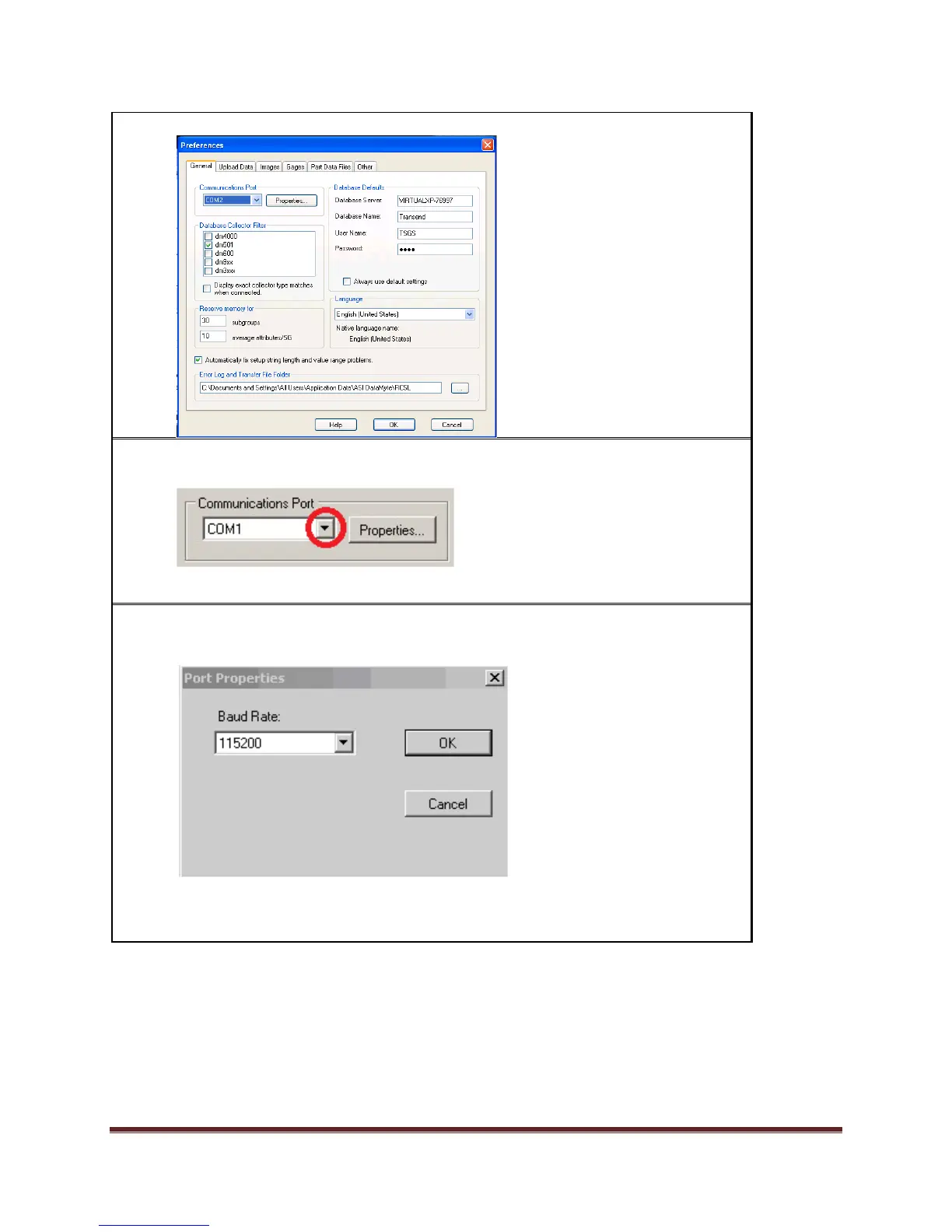

8) General preferences tab:
9) To configure communications, select the serial port to which the data collector is
connected from the drop-down list:
10) Click the Properties button to select the Baud Rate that matches the settings on
your data collector.
Note: The highest available setting for your collector offers the fastest data
transfer rate; i.e. The 501 collector Serial Baud Rate is 115200 and the 30XX data
collector Serial Baud Rate is 38400.
