Installation
Drainage connection
The machine is supplied with a drainage hose
attached, which must be connected to a drain.

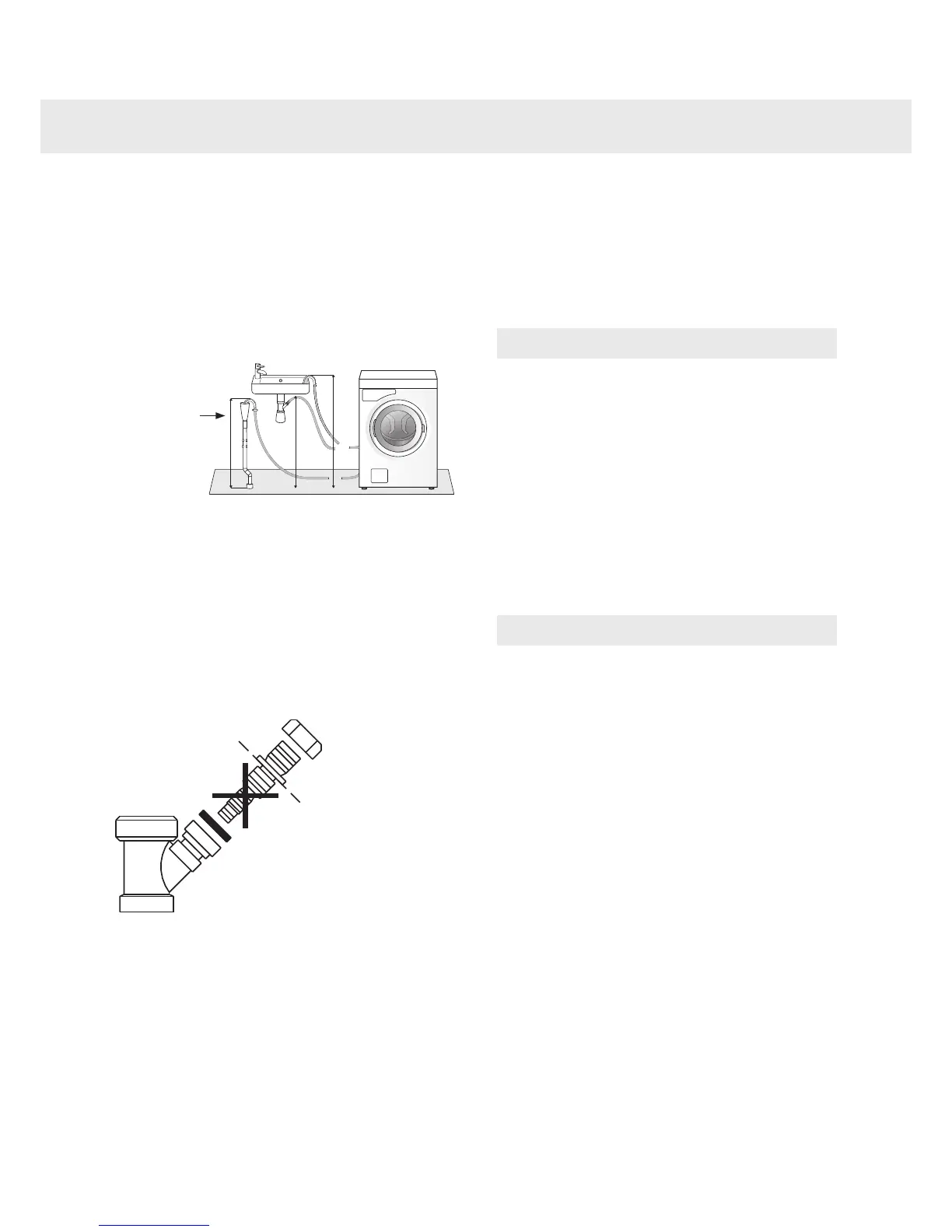

See the examples below. The height must be
600-900 mm above fl oor level.
The lower position (600 mm) is always preferable.
Ensure that the drainage hose has no kinks.
600--900 mm
The machine can also be connected to the drain
via a spigot connection. In this case the hose
should also be 600-900 mm above the fl oor. The
internal diameter of the hole should be at least
18 mm.
• Cut the nipple
• Remove burrs from the hole.
See the illustration.
At least 18 mm
Electrical installation
If the machine is delivered from the factory
with a plug attached, it can be connected to an
earthed wall socket. Otherwise, a permanent
connection using a multipolar circuit breaker
must be made by a qualifi ed professional.
CAUTION!
If this appliance is supplied from a cord
extensions set or electrical portable outlet
device, the cord extension ser or electrical
portable outlet device must be positioned so
that it is not subject to splashing or ingress of
moisture.
Connection on delivery
The machine is supplied as 1-Phase, 230 V, 50
Hz, heat output 3000Wand has a 16 A plug. Any
residual current devices must be type A.
NOTE!
Repairs and maintenance must be carried out
by a qualifi ed professional.
Coin operation
The machine is prepared for coin operation.
Such installation must be carried out by a
qualifi ed professional.
The installation requires a connection cable to
power the coin meter. This connection cable can
be ordered using the factory spare part number
92 090 95.
The coin meter shall be able to short circuit two
signal lines for periods of up to 10 minutes. This
is to give the user time to load the machine,
choose a program and start the program after
putting the coins in.
'Insert coin' appears on the display when the
machine is started with the main power switch.
