Asko T700 - Drum and Drive System

43
SERVICE
5
DRUM

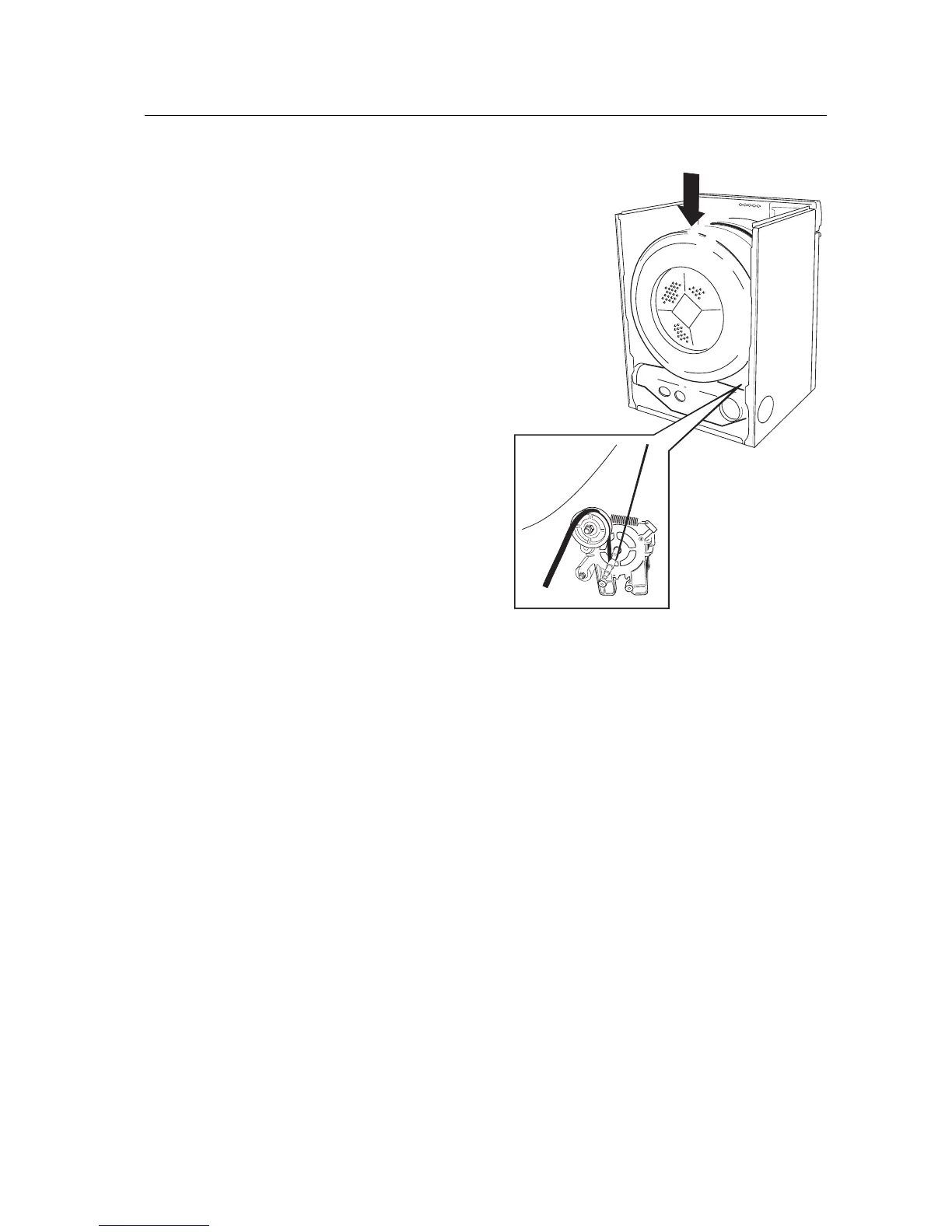

Removing the drum
1. Remove the rear panel in accordance with the
section "Rear panel - removing...".
2. T720/780: Remove the external fan housing
in accordance with the section " External fan
housing - removing..." steps 2-4.
3. Remove the special tool.
4. Remove the belt from the belt tensioner.
5. Lift out the drum while taking off the belt.
Installing the drum
6. Feed the belt over the drum.
7. Feed the belt on to the motor shaft and over
the belt tensioner.
8. Offer up the drum against the front frame
and install the special tool.
9. T720/780: Install the external fan housing in
accordance with the section " External fan
housing - installing..." steps 5-7.
10. Install the rear panel in accordance with the
section "Rear panel - installing...".
Changing the drive belt
1. Remove the rear panel in accordance with the
section "Rear panel - removing...".
2. T720/780: Remove the external fan housing
in accordance with the section " External fan
housing - removing..." steps 2-4.
3. Remove the special tool.
4. Remove the belt from the belt tensioner and
take off the belt.
5. Feed the belt over the drum, on to the motor
shaft and over the belt tensioner.
6. Install the special tool.
7. T720/780: Install the external fan housing in
accordance with the section " External fan hou-
sing - installing..." steps 5-7.
8. Install the rear panel in accordance with the
section "Rear panel - installing...".
