Installation instructions
Air exhaust
Connecting the exhaust duct to the dryer
NOTE!
You will need to purchase a UL-CSA-approved
4" ridged metal exhaust duct. The dryer is
delivered with the stub pipe attached to the rear
exhaust outlet, though the exhaust duct can be
attached to either the left or the right exhaust
outlet.

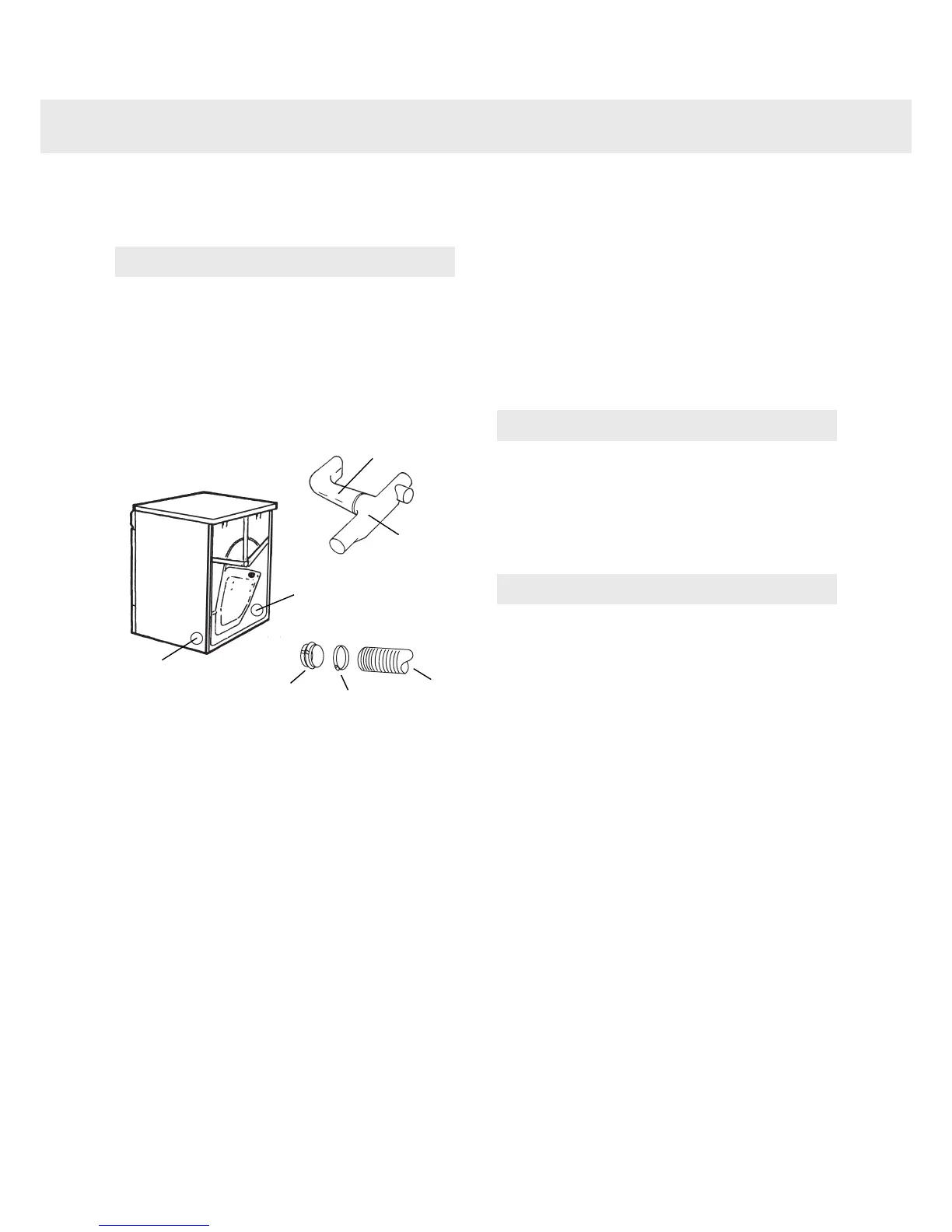

Vent
T-tube
Rear Exhaust
Outlet
Side Exhaust
Outlet
Duct
Clamp
(not supplied)
Stub
Asko dryers have a "T-style"
exhaust vent that allows you to
connect the duct on the rear, on
the left, or on the right side
The duct must not be assembled with screws
or other fasteners that extend into the duct and
catch lint.
To connect the exhaust duct to the rear
outlet
To connect the exhaust duct to the rear outlet,
follow the steps below:
1. Push the duct onto the stub pipe and secure
it with a clamp
2. With the duct attached, insert the stub pipe
into the hole. It should snap into place.
3. After you push the dryer into place, check for
kinks in the duct.
NOTE!
Excessive duct length and too many bends can
impede drying performance. We recommend
that you cut o any excess exhaust duct and run
the duct with as few bends as possible. Make
any necessary bends as gentle as possible.
NOTE!
Maximum duct length of 60 feet. A maximum of
4 elbows may be used, but 4 feet of duct must
subtracted from the total vent length for every
90° elbow used.
