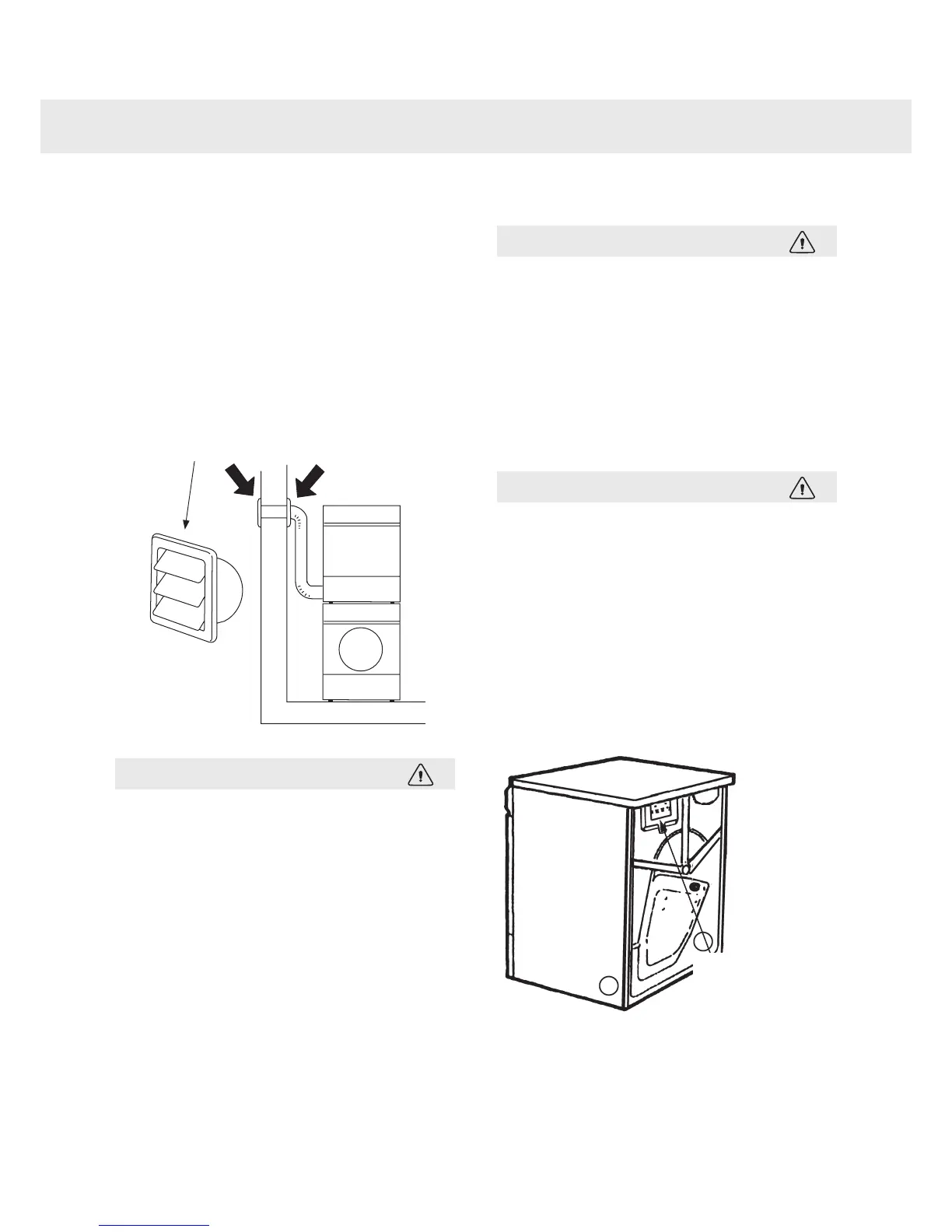

To connect the exhaust duct to a
ventilation outlet, follow the steps
below:
1. Connect the exhaust duct to a ventilation
exhaust tting or to a discharge through the
wall.
2. Secure the duct joint to the outlet stub on the
machine.
3. Run the duct with as few bends as possible
to the point of discharge.
Ventilation grill (not supplied with machine)
WARNING!
This appliance shall not be exhausted into
a chimney, a wall, a ceiling, an attic, a crawl
space or a concealed space of a building. Only
a rigid or exible metal duct shall be used for
exhausting. Only a metal ventilation grill shall
be used. If the duct is taken to a wall outlet, a
ventilation grill shall be tted to prevent reverse
ow of cold air. Fit the ventilation grill to the
outside of the wall.
Electrical installation
WARNING!
The receptacle on the rear of the machine is
designed to accommodate ASKO washers
ONLY (rated 208–240 V.) To use this receptacle,
you must use the ready-tted plug supplied with
the washing machine or an equivalent.
ASKO washers rated 208–240 V have two
internal fuses of 15 A each.
The machine should only be connected to a
grounded wall socket.
WARNING!
This appliance must be properly grounded.
Refer to the “Important Safety Instructions” for
grounding instructions.
The power supply cord must be grounded. If the
machine is to be used in a wet area, the supply
must be protected by a residual current device.
Connection to a permanently wired supply point
must be made only by a qualied electrician. As
supplied: Single-phase, 230 V, 60 Hz, 3000W
heater rating 30 A circuit required.
Remove cover to
access terminal box.
(Requires a 20-Torx
screwdriver.)
