5. Connect ground (center) wire of power supply
cord to the center, silver-colored terminal
screw. Tighten screw.
6. Connect the other wires to outer screws.
7. Tighten the strain relief screws.
8. Replace terminal box cover on back of dryer.
9. Plug dryer into wall receptacle.
10. Turn power on at breaker/fuse box.

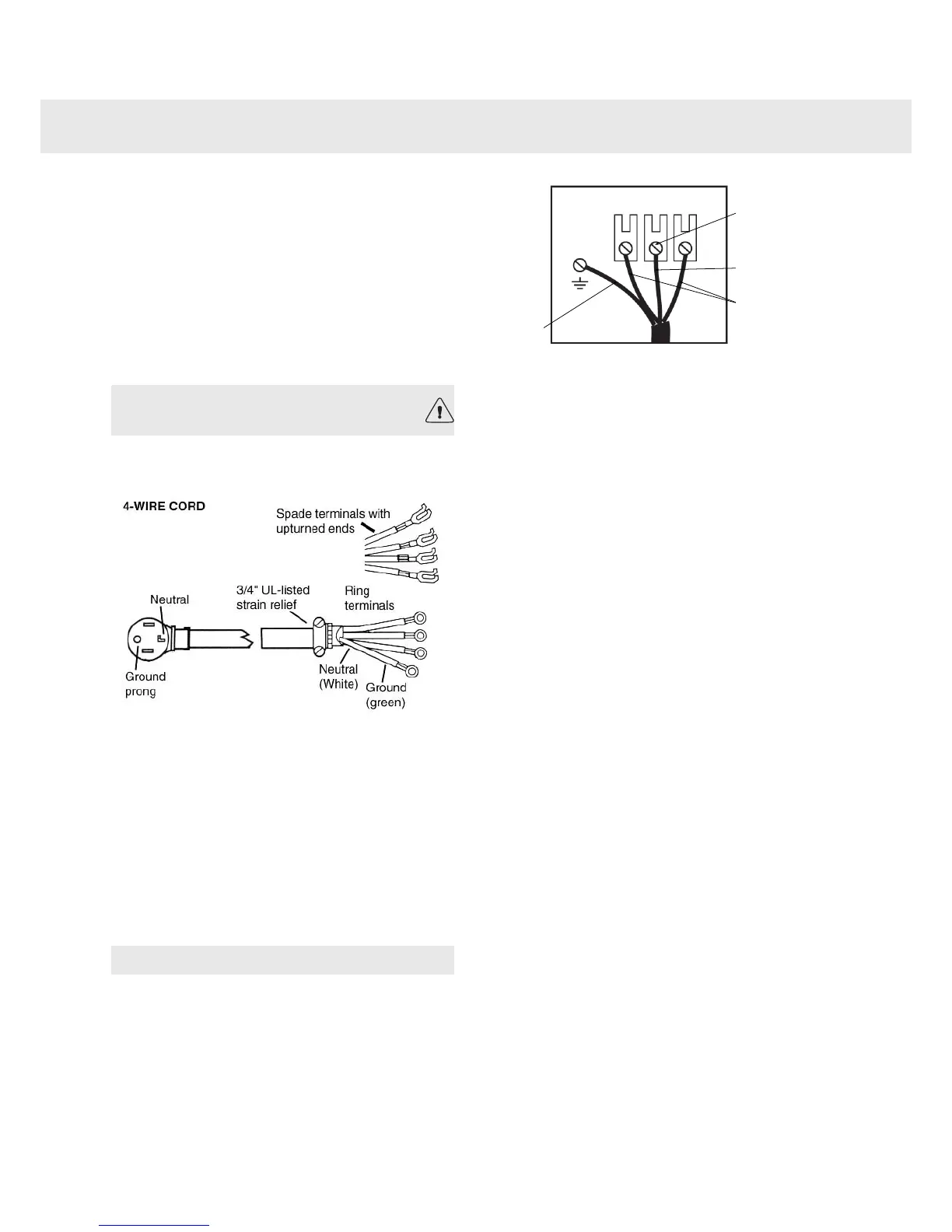

Connecting a 4-wire Power Cord
WARNING!
Before starting this procedure, be sure the power
is turned off at the breaker/fuse box.
Power Supply Cord
You will need a 4-wire power supply cord with four
No. 10 copper wires and a matching 4-wire
receptacle of NEMA Type 14-30R, as illustrated
below.
The fourth wire must be identified with a white
cover and the ground conductor by a green cover.
To connect a 4-wire power cord to the dryer,
follow the steps below.
NOTE!
The numbers in the illustration below correlate
to the step numbers.
1. Turn the power off at the breaker/fuse box.
2. Remove terminal block cover.
3. Use the strain relief attached below the
terminal block opening.
4. Remove center terminal block screw.
5. Remove ground wire (green with yellow
stripes) from external ground connector screw
and remove from center terminal block.
6. Connect ground (green) wire of cord to external
ground conductor screw.
7. Connect neutral (white) wire of cord under
center screw of terminal block.
8. Connect the other wires to outer screws.
9. Tighten the strain relief screws.
10. Replace terminal box cover on back of dryer.
11. Plug dryer into wall receptacle.
12. Turn power on at breaker/fuse box.
Customer Care Center28
1-800-898-1879
www.askousa.com
Installation instructions
