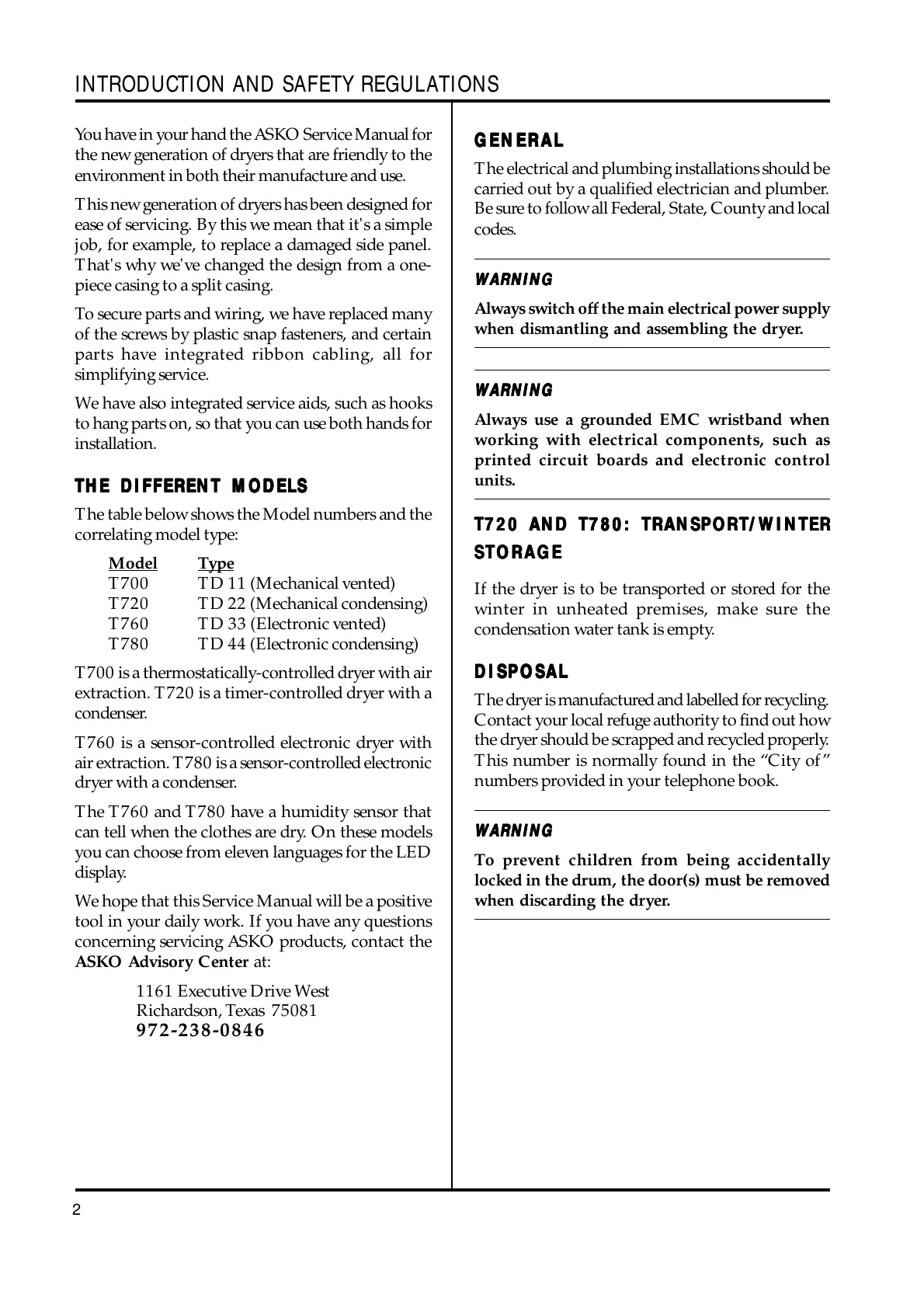

You have in your hand the ASKO Service Manual for
the new generation of dryers that are friendly to the
environment in both their manufacture and use.
This new generation of dryers has been designed for
ease of servicing. By this we mean that it's a simple
job, for example, to replace a damaged side panel.
That's why we've changed the design from a one-
piece casing to a split casing.
To secure parts and wiring, we have replaced many
of the screws by plastic snap fasteners, and certain
parts have integrated ribbon cabling, all for
simplifying service.
We have also integrated service aids, such as hooks
to hang parts on, so that you can use both hands for
installation.
TT
TT
T
HE DIFFERENT MODELSHE DIFFERENT MODELS
HE DIFFERENT MODELSHE DIFFERENT MODELS
HE DIFFERENT MODELS
The table below shows the Model numbers and the
correlating model type:
Model Type
T700 TD 11 (Mechanical vented)
T720 TD 22 (Mechanical condensing)
T760 TD 33 (Electronic vented)
T780 TD 44 (Electronic condensing)
T700 is a thermostatically-controlled dryer with air
extraction. T720 is a timer-controlled dryer with a
condenser.
T760 is a sensor-controlled electronic dryer with
air extraction. T780 is a sensor-controlled electronic
dryer with a condenser.
The T760 and T780 have a humidity sensor that
can tell when the clothes are dry. On these models
you can choose from eleven languages for the LED
display.
We hope that this Service Manual will be a positive
tool in your daily work. If you have any questions
concerning servicing ASKO products, contact the
ASKO Advisory Center at:
1161 Executive Drive West
Richardson, Texas 75081
972-238-0846
INTRODUCTION AND SAFETY REGULATIONS
GENERALGENERAL
GENERALGENERAL
GENERAL
The electrical and plumbing installations should be
carried out by a qualified electrician and plumber.
Be sure to follow all Federal, State, County and local
codes.
WARNINGWARNING
WARNINGWARNING
WARNING
Always switch off the main electrical power supply
when dismantling and assembling the dryer.
WARNINGWARNING
WARNINGWARNING
WARNING
Always use a grounded EMC wristband when
working with electrical components, such as
printed circuit boards and electronic control
units.
T720 AND T780: TRANSPORT/WINTERT720 AND T780: TRANSPORT/WINTER
T720 AND T780: TRANSPORT/WINTERT720 AND T780: TRANSPORT/WINTER
T720 AND T780: TRANSPORT/WINTER
STORAGESTORAGE
STORAGESTORAGE
STORAGE
If the dryer is to be transported or stored for the
winter in unheated premises, make sure the
condensation water tank is empty.
DISPOSALDISPOSAL
DISPOSALDISPOSAL
DISPOSAL
The dryer is manufactured and labelled for recycling.
Contact your local refuge authority to find out how
the dryer should be scrapped and recycled properly.
This number is normally found in the “City of”
numbers provided in your telephone book.
WARNINGWARNING
WARNINGWARNING
WARNING
To prevent children from being accidentally
locked in the drum, the door(s) must be removed
when discarding the dryer.
