MPS-Series – Installation Guide

U-0664-0174.doc – Issue: 07 complete, approved

Page 22 of 24

5 Mechanical Dimensions

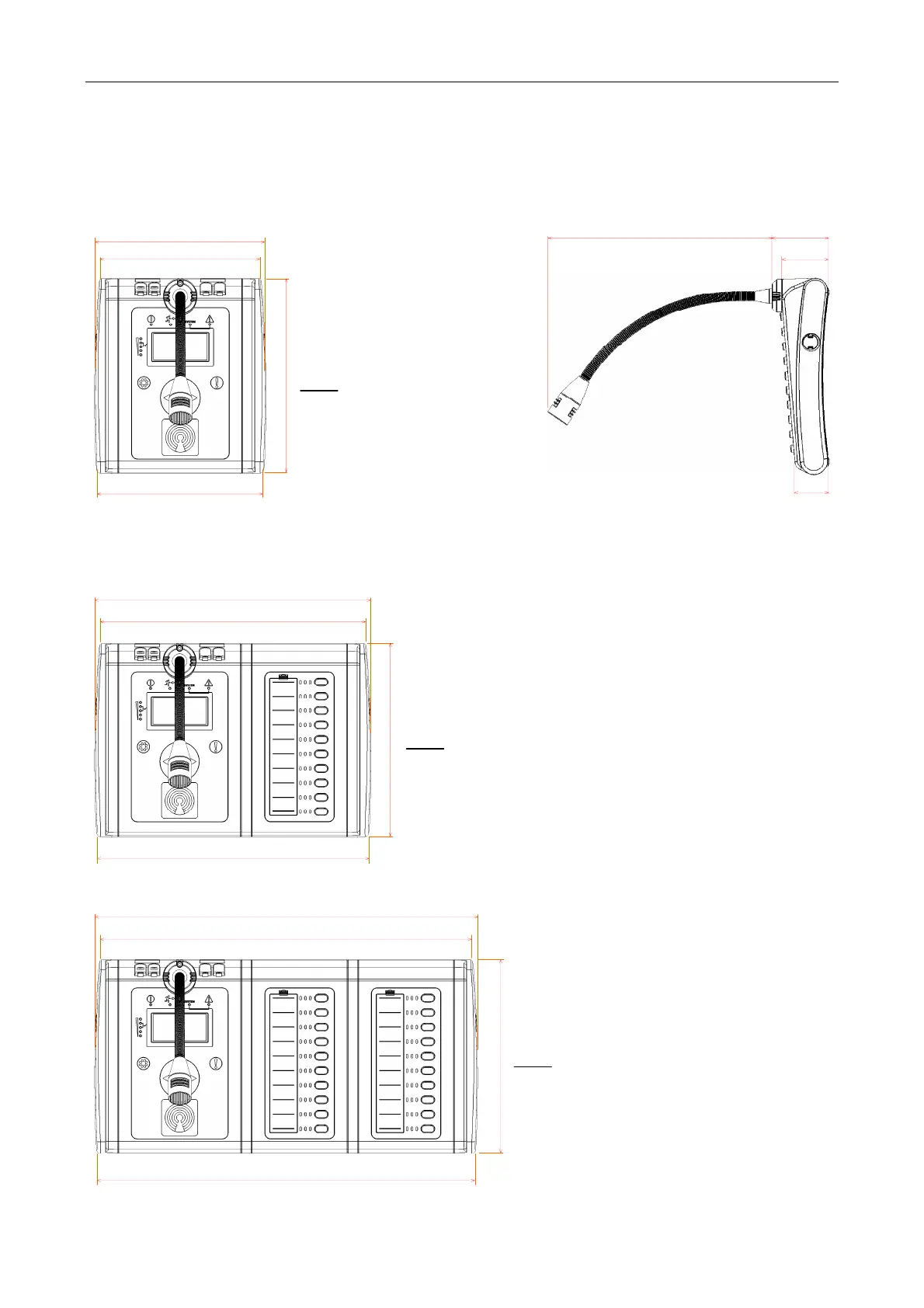

Figure 18 MPS dimensions

Note: Increase the width by a further 110 mm for each MPX10

Expansion Module. See examples below for MPS10 and

MPS20 .

MPS01

58 mm

48.5 mm

35 mm

~ 260 mm (maximum)

165 mm

175 mm

171 mm

200 mm

275 mm

285 mm

281 mm

200 mm

MPS10

MPS20

385 mm

395 mm

391 mm

200 mm
