5

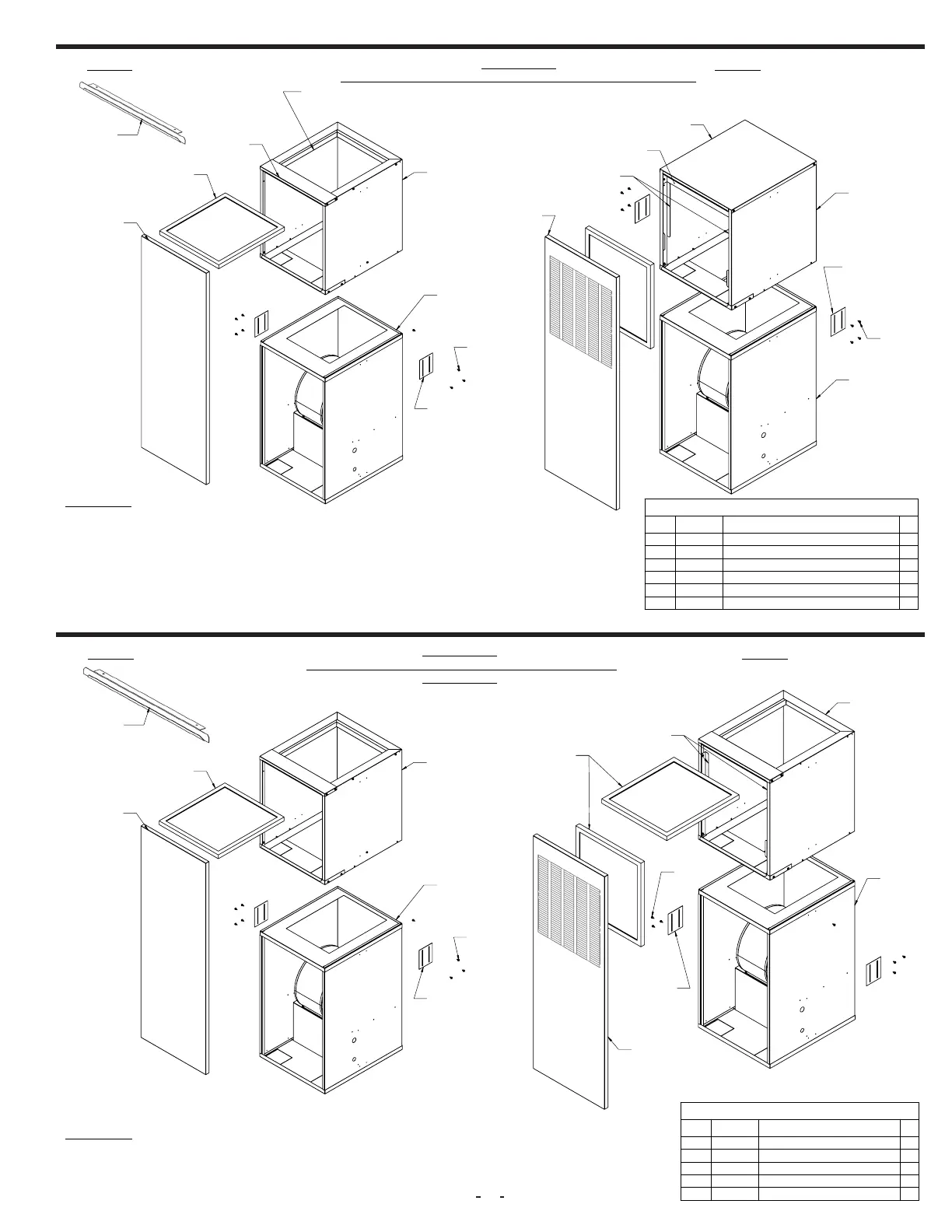

3B-7C. KIT# - AEDK-01, AED-000 TO AED-001 (DOWNFLOW/FRONT RETURN) CONVERSION
3B-7D. KIT# - AEDK-02, AED-000 TO AED-002 (DOWNFLOW/TOP&FRONT RETURN)CONVERSION
ALIGNMENT
PLATES
(PART: 123190)
SCREW
123210
FILTER 18X20X1
(PART: 8767)
(STEP#8)
123211
DOOR HOOK
(PART: 123204)
(STEP#5)
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#9)
FOAM STRIP-(PART: 8668)
CUT TO 31.10" (QTY: 2)
(STEP#6)
123206
(STEP#3)
123206
(STEP#4)
123197
(STEP#4)
LOUVER SINGLE DOOR
(PART: 123203)
(STEP#8)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
123209
INSTRUCTIONS:
STEP#1 - REMOVE THE ALIGNMENT PLATES (2) AND BRING THE MAD CABINET DOWN.
STEP#2 - DISCARD THE PARTS# 123203, 123197, 123200, 123201 & 123216
STEP#3 - SLIDE IN THE PART# 123206 AT THE TOP OF THE CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE TOP BRACKET PART#123196 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - MOUNT THE DOOR HOOK PART#123204 & SELF-DRILL ONTO AEN. ------ CHECK-----
STEP#6 - MOUNT THE MAD CABINET ON TOP OF THE AEN CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#7 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE TOP
STEP#8- MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
STEP#9 - DISCARD PART# 8668
123200 &123201
(STEP#2)
123216
(STEP#5)
# 138001
NOVEMBER 2022
123210
123211
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#1)
FILTER 18X20X1
(PART: 8767)
SCREW
DOOR HOOK
123204
(STEP#5)
ALIGNMENT
PLATES
(PART: 123190)
123196
(STEP#2)
123206
(STEP#2)
KIT#: AEDK-01
AED-000 TO AED-001 (DOWNFLOW/FRONT RETURN)
CONVERSION
AED-000 AED-001
AEN
MAD
MAD
AEN
INSTRUCTIONS:
STEP#1 - REMOVE THE DOOR & ALIGNMENT PLATES (2). ROTATE THE AEN
& ENSURE THE BLOWER IS DIRECTING AIR DOWNWARD (180°)
STEP#2 - DISCARD THE PARTS# 123202, 123196, 123206 & 123204
STEP#3 - MOUNT THE FILTER BRACKET 2 ON EACH SIDE USING THE SCREWS
STEP#4 - MOUNT THE "TOP SOLID" 123197 ON TOP OF THE CABINET USING THE SCREWS
STEP#5 - MOUNT THE "BLOCK-OFF PLATE" 123216 AS SHOWN USING THE SCREWS 8051
STEP#6 - MOUNT THE MAD CABINET ON TOP OF THE AEN CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#7 - SLIDE IN THE FILTER INTO THE FILTER RETAINER
STEP#8 - MOUNT THE LOUVERED DOOR 123203 (REFER I/O FOR DOOR MOUNTING)
# 123081
NOVEMBER -2022
PARTS NEEDED FOR CONVERSION
ITEM #
PART #
DESCRIPTION
Qty.
1 123202
SOLID SINGLE DOOR, AEU
1
2 123206
FILTER U-RETAINER ASSY
1
3 123196
TOP BRACKET, MHAH 24-60
1
3 123204
DOOR HOOK
1
4 8668
CLOSED CELL FOAM
1
PARTS NEEDED FOR CONVERSION
ITEM #
PART #
DESCRIPTION
Qty.
1 123203
LOUVER SINGLE DOOR, AED
1
2 123197
CABINET TOP SOLID, MHAH 24-60
1
3 123200
FILTER RETAINER, LEFT 24IN H
1
4 123201
FILTER RETAINER, RIGHT 24IN H
1
5 123216
BLOCK-OFF PLATE (MAD)
1
6 8051
# 10 X 1/2 TEK SCREW - AIR HANDLERS
2
Figure 3B-7C
ALIGNMENT
PLATES
(PART: 123190)
SCREW
123210
FILTER 18X20X1
(PART: 8767)
123211
DOOR HOOK
(PART: 123204)
(STEP#2)
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#2)
FOAM STRIP-(PART: 8668)
CUT TO 31.10" (QTY: 2)
(STEP#2)
123206
(STEP#3)
123212
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#5)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
FILTER 18X20X1
(PART: 8767)
(STEP#4)
.
123200 & 201
(STEP#3)
123210
123211
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#1)
FILTER 18X20X1
(PART: 8767)
SCREW
DOOR HOOK
123204
(STEP#5)
ALIGNMENT
PLATES
(PART: 123190)
MAD
AEN
AED-000 TO AED-002 (DOWNFLOW/TOP&FRONT RETURN)
CONVERSION
INSTRUCTIONS:
STEP#1 - REMOVE THE DOOR PART#123202 FROM THE UNIT
STEP#2 - DISCARD THE PARTS# 123202, & 123204
STEP#3 - MOUNT THE FILTER BRACKET 123200 & 201 ON EACH SIDE OF THE MAD CABINET USING THE SCREWS
STEP#4 - SLIDE IN THE FILTERS INTO THE FILTER RETAINERS
STEP#5 - MOUNT THE LOUVERED DOOR 123203 (REFER I/O FOR DOOR MOUNTING)
AED-002AED-000
AEN
MAD
MAD
AEN
# 123086
NOVEMBER -2022
# 138002
NOVEMBER 2022
PARTS NEEDED FOR CONVERSION
ITEM #
PART #
DESCRIPTION
Qty.
1 123203
LOUVER SINGLE DOOR, AED
1
2 8767
FILTER- 18X20X1
1
3 123200
FILTER RETAINER, LEFT 24IN H
1
4 123201
FILTER RETAINER, RIGHT 24IN H
1
5 8506
#10X1/2 SLTD SCREW
2
Figure 3B-7D
