Aspen AEU Series User Manual

6

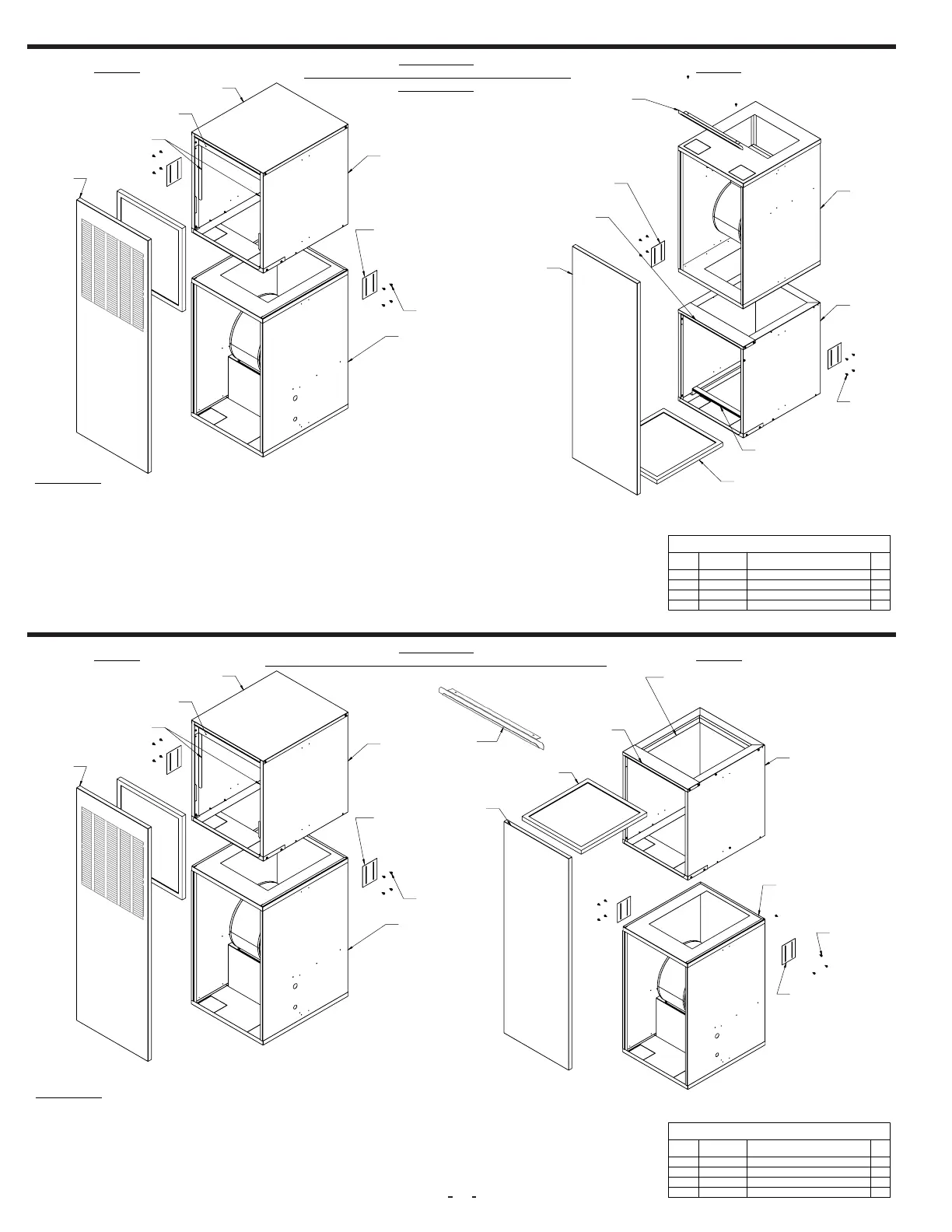

3B-7E. KIT# - AEDK-03, AED-001 TO AEU-000 (UPFLOW/BOTTOM RETURN) CONVERSION
3B-7F. KIT# - AEDK-03, AED-001 TO AED-000 (DOWNFLOW/TOP RETURN) CONVERSION
ALIGNMENT
PLATES
(PART: 123190)
SCREW
123210
FILTER 18X20X1
(PART: 8767)
(STEP#7)
123211
DOOR HOOK
(PART: 123204)
(STEP#5)
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#8)
123206
(STEP#3)
123206
(STEP#4)
123197
(STEP#2)
LOUVER SINGLE DOOR
(PART: 123203)
(STEP#2)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
123209
INSTRUCTIONS:
STEP#1 - REMOVE THE ALIGNMENT PLATES (2). ROTATE THE AEN & ENSURE THE BLOWER IS DIRECTING AIR UPWARD (180°).
FIRST NEED TO SELF-DRILL THE DOOR HOOK ONTO AEN MODEL BEFORE MOUNTING IT ON TOP OF MAD MODEL.
STEP#2 - DISCARD THE PARTS# 123203, 123197, 123200, 123201 & 123216
STEP#3 - SLIDE IN THE PART# 123206 AT THE BOTTOM OF THE CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE TOP BRACKET PART#123196 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - MOUNT THE DOOR HOOK PART#123204 & SELF-DRILL ONTO AEN.
STEP#6 - MOUNT THE AEN CABINET ON TOP OF THE MAD CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#7 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE BOTTOM
STEP#8 - MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
123200 &123201
(STEP#2)
123216
(STEP#2)
KIT#: AEDK-03
AED-001 TO AEU-000 (UPFLOW/BOTTOM RETURN)
CONVERSION
AEU-000 AED-001
AEN
MAD
MAD
AEN
# 123087
NOVEMBER -2022
# 138003
NOVEMBER 2022
PARTS NEEDED FOR CONVERSION
ITEM # PART # DESCRIPTION Qty.
1 123202 SOLID SINGLE DOOR, AEU 1
2 123206
FILTER U-RETAINER ASSY 1
3 123196
TOP BRACKET, MHAH 24-60 1
4 123204
DOOR HOOK 1
PARTS NEEDED FOR CONVERSION
ITEM # PART # DESCRIPTION Qty.
1 123202 SOLID SINGLE DOOR, AEU 1
2 123206
FILTER U-RETAINER ASSY 1
3 123196
TOP BRACKET, MHAH 24-60 1
3 123204
DOOR HOOK 1
4 8668
CLOSED CELL FOAM 1
Figure 3B-7E
ALIGNMENT
PLATES
(PART: 123190)
SCREW
123210
FILTER 18X20X1
(PART: 8767)
(STEP#8)
123211
DOOR HOOK
(PART: 123204)
(STEP#5)
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#9)
FOAM STRIP-(PART: 8668)
CUT TO 31.10" (QTY: 2)
(STEP#6)
123206
(STEP#3)
123206
(STEP#4)
123197
(STEP#2)
LOUVER SINGLE DOOR
(PART: 123203)
(STEP#2)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
123209
INSTRUCTIONS:
STEP#1 - REMOVE THE ALIGNMENT PLATES (2) AND BRING THE MAD CABINET DOWN.
STEP#2 - DISCARD THE PARTS# 123203, 123197, 123200, 123201 & 123216
STEP#3 - SLIDE IN THE PART# 123206 AT THE TOP OF THE CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE TOP BRACKET PART#123196 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - MOUNT THE DOOR HOOK PART#123204 & SELF-DRILL ONTO AEN.
STEP#6 - MOUNT THE MAD CABINET ON TOP OF THE AEN CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#7 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE TOP
STEP#8- MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
123200 &123201
(STEP#2)
123216
(STEP#2)
123210
123211
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#8)
FILTER 18X20X1
(PART: 8767)
(STEP#7)
SCREW
DOOR HOOK
123204
(STEP#5)
ALIGNMENT
PLATES
(PART: 123190)
123196
(STEP#4)
123206
(STEP#3)
# 138003
NOVEMBER 2022
KIT#: AEDK-03
AED-001 TO AED-000 (DOWNFLOW/TOP RETURN) CONVERSION
AED-000AED-001
AEN
MAD
MAD
AEN
# 123087
NOVEMBER -2022
PARTS NEEDED FOR CONVERSION
ITEM # PART # DESCRIPTION Qty.
1 123202 SOLID SINGLE DOOR, AEU 1
2 123206
FILTER U-RETAINER ASSY 1
3 123196
TOP BRACKET, MHAH 24-60 1
4 123204
DOOR HOOK 1
PARTS NEEDED FOR CONVERSION
ITEM # PART # DESCRIPTION Qty.
1 123202 SOLID SINGLE DOOR, AEU 1
2 123206
FILTER U-RETAINER ASSY 1
3 123196
TOP BRACKET, MHAH 24-60 1
3 123204
DOOR HOOK 1
4 8668
CLOSED CELL FOAM 1
Figure 3B-7F
