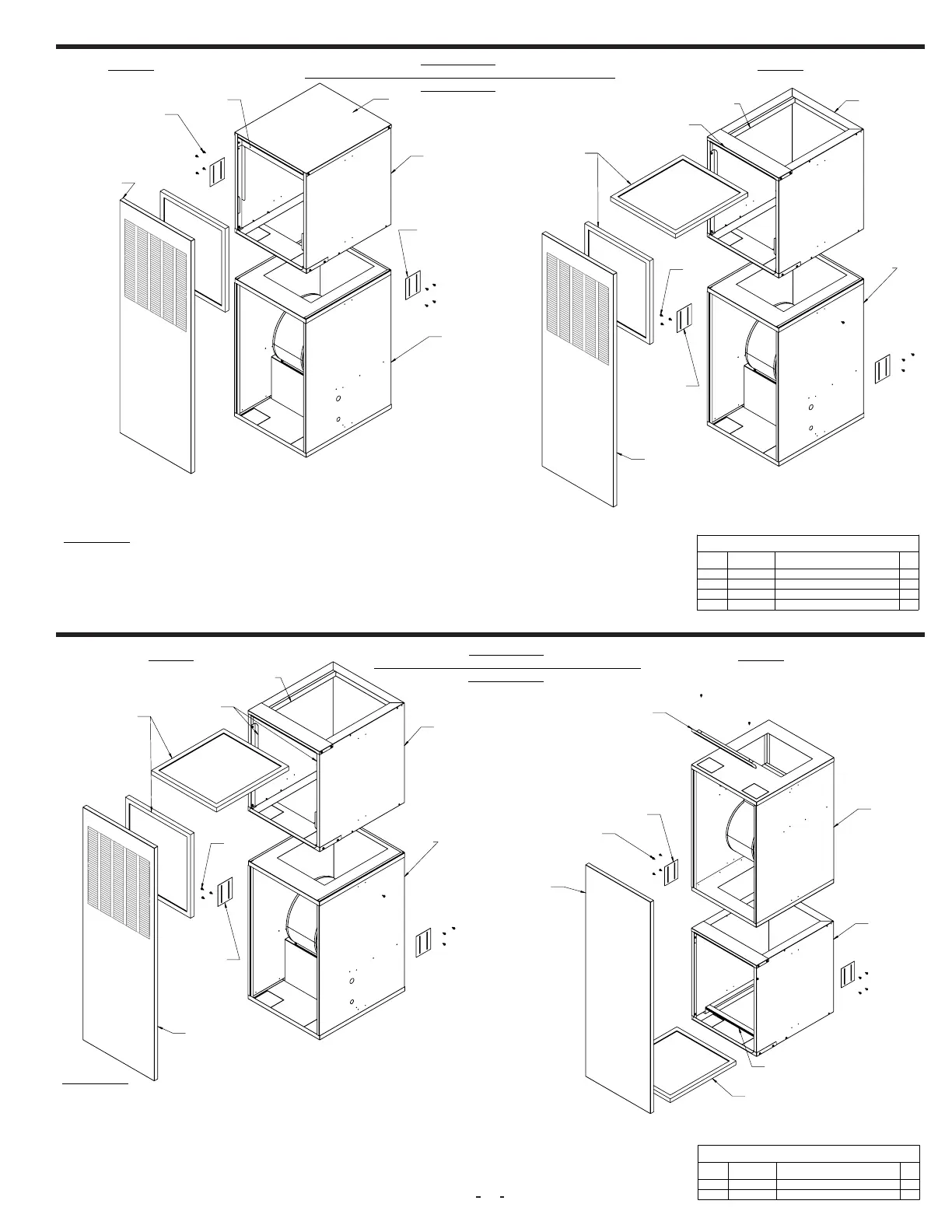

3B-7G. KIT# - AEDK-04, AED-001 TO AED-002 (DOWNFLOW/TOP&FRONT RETURN) CONVERSION
3B-7H. KIT# - AEDK-05, AED-002 TO AEU-000 (UPFLOW/BOTTOM RETURN) CONVERSION
123216
(STEP#2)
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#1)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
123209
INSTRUCTIONS:
STEP#1 - REMOVE THE DOOR 123203 & FILTER 8767 AND SET ASIDE
STEP#2 - DISCARD THE PARTS# 123216 & 123197
STEP#3 - SLIDE IN THE PART# 123206 AT THE BOTTOM OF THE CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE TOP BRACKET PART#123196 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - SLIDE IN THE FILTERS INTO THE FILTER RETAINERS AT THE TOP & FRONT
STEP#6 - MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
123197
(STEP#2)
123212
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#6)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
FILTER 18X20X1
(PART: 8767)
(STEP#5)
.
123206
(STEP#3)
123196
(STEP#4)
KIT#: AEDK-04
AED-001 TO AED-002 (DOWNFLOW/TOP&FRONT RETURN)
CONVERSION
AED-002AED-001
MAD
AEN
AEN
MAD
INSTRUCTIONS:
STEP#1 - REMOVE THE ALIGNMENT PLATES (2). ROTATE AEN TO ENSURE THE BLOWER IS DIRECTING AIR UPWARD (180°).
FIRST NEED TO SELF-DRILL THE DOOR HOOK ONTO AEN MODEL BEFORE MOUNTING IT ON TOP OF MAD MODEL.
STEP#2 - DISCARD THE PARTS# 123203, 123197, 123200, 123201 & 123216
STEP#3 - SLIDE IN THE PART# 123206 AT THE BOTTOM OF THE CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE TOP BRACKET PART#123196 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - MOUNT THE DOOR HOOK PART#123204 & SELF-DRILL ONTO AEN.
STEP#6 - APPLY FOAM STRIP PART #8668 AT THE FRONT FACE OF THE AEN CABINET
STEP#7 - MOUNT THE AEN CABINET ON TOP OF THE MAD CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#8 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE BOTTOM
STEP#9 - MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
STEP#10 - DISCARD PART# 8668 FOR AED-001 TO AED-000 CONVERSION
# 123088
NOVEMBER -2022
# 138004
NOVEMBER 2022
PARTS NEEDED FOR CONVERSION
ITEM # PART # DESCRIPTION Qty.
1 123206 FILTER U-RETAINER ASSY 1
2 123196
TOP BRACKET, MHAH 24-60 1
3 8506
#10X1/2 SLTD SCREW 4
4 8767
FILTER- 18X20X1 1
Figure 3B-7G
ALIGNMENT
PLATES
(PART: 123190)
SCREW
123210
FILTER 18X20X1
(PART: 8767)
(STEP#6)
123211
DOOR HOOK
(PART: 123204)
(STEP#4)
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#7)
123206
(STEP#3)
123212
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#2)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
FILTER 18X20X1
(PART: 8767)
123206
(STEP#3)
123200 & 201
(STEP#2)
KIT#: AEDK-05
AED-002 TO AEU-000 (UPFLOW/BOTTOM RETURN)
CONVERSION
INSTRUCTIONS:
STEP#1 - REMOVE THE ALIGNMENT PLATES (2). ROTATE AEN AND
ENSURE THE BLOWER IS DIRECTING AIR UPWARD (180°)
STEP#2 - DISCARD THE PARTS# 123203, 8767(1), 123200 & 123201
STEP#3 - REMOVE THE PART#123206 FROM THE TOP OF THE CABINET AND SLIDE IT AT THE BOTTOM OF THE
CABINET AND SECURE IT IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE DOOR HOOK PART#123204 & SELF-DRILL ONTO AEN.
STEP#5- MOUNT THE AEN CABINET ON TOP OF THE MAD CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#6 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE BOTTOM
STEP#7 - MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
AED-002 AED-000
AEN
MAD
MAD
AEN
# 123089
NOVEMBER -2022
# 138005
NOVEMBER 2022
PARTS NEEDED FOR CONVERSION
ITEM # PART # DESCRIPTION Qty.
1 123202 SOLID SINGLE DOOR, AED 1
2 123204
DOOR HOOK 1
Figure 3B-7H
