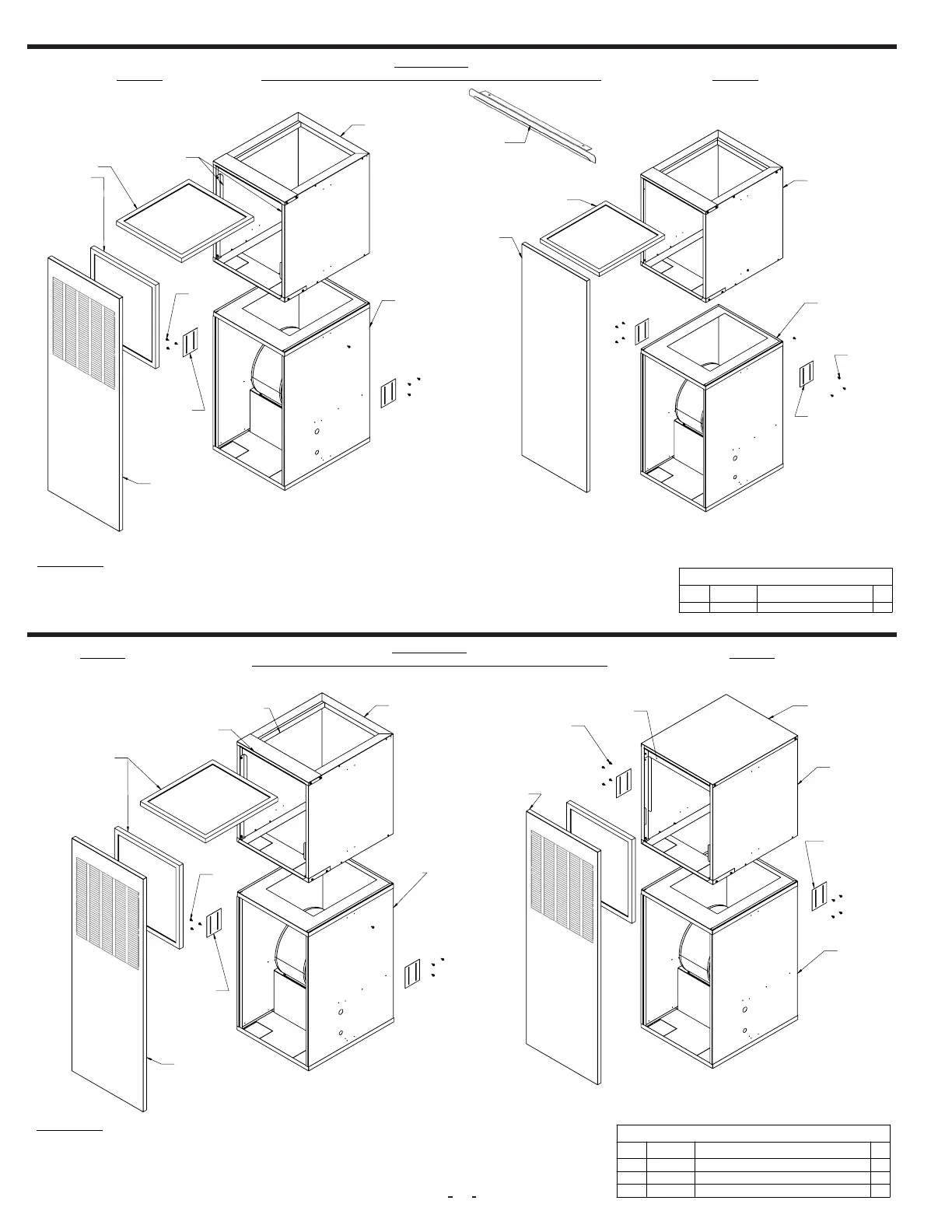

3B-7J. KIT# - AEDK-06, AEU-002 TO AED-000 (DOWNFLOW/TOP RETURN) CONVERSION
3B-7K. KIT# - AEDK-07, AED-002 TO AED-001 (DOWNFLOW/FRONT RETURN) CONVERSION
ALIGNMENT
PLATES
(PART: 123190)
SCREW
123210
FILTER 18X20X1
(PART: 8767)
123211
DOOR HOOK
(PART: 123204)
(STEP#2)
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#2)
FOAM STRIP-(PART: 8668)
CUT TO 31.10" (QTY: 2)
(STEP#2)
123206
(STEP#3)
123212
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#1&2)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
FILTER 18X20X1
(PART: 8767)
.
123200 & 201
(STEP#2)
123210
123211
SOLID SINGLE
DOOR
(PART: 123202)
(STEP#4)
FILTER 18X20X1
(PART: 8767)
(STEP#3)
SCREW
DOOR HOOK
123204
(STEP#5)
ALIGNMENT
PLATES
(PART: 123190)
MAD
AEN
AEU-002 TO AED-000 (DOWNFLOW/TOP RETURN) CONVERSION
INSTRUCTIONS:
STEP#1 - REMOVE THE DOOR PART#123202 FROM THE UNIT
STEP#2 - DISCARD THE PARTS# 123203, 8767(1),123216, 123200 & 123201
STEP#3 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE TOP
STEP#4 - MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
AED-000AED-002
AEN
MAD
MAD
AEN
# 123091
NOVEMBER -2022
# 138006
NOVEMBER 2022
PART NEEDED FOR CONVERSION
ITEM #
PART #
DESCRIPTION
Qty.
1 123202
SOLID SINGLE DOOR, AED
1
Figure 3B-7J
123216
(STEP#2)
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#1)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
123209
INSTRUCTIONS:
STEP#1 - REMOVE THE DOOR 123203 & FILTER 8767
STEP#2 - DISCARD THE PARTS# 123206 & 123196
STEP#4 - MOUNT THE TOP BRACKET PART#123197 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - MOUNT THE "BLOCK-OFF PLATE" 123216 AS SHOWN USING THE SCREWS 8051
STEP#6 - SLIDE IN THE FILTERS INTO THE FILTER RETAINERS AT THE TOP & FRONT
STEP#7 - MOUNT THE LOUVERED DOOR 123203 (REFER I/O FOR DOOR MOUNTING)
123197
(STEP#2)
123212
LOUVER SINGLE
DOOR
(PART: 123203)
(STEP#6)
SCREW
ALIGNMENT
PLATES
(PART: 123190)
123211
FILTER 18X20X1
(PART: 8767)
(STEP#5)
.
123206
(STEP#3)
123196
(STEP#4)
AED-002 TO AED-001 (DOWNFLOW/FRONT RETURN) CONVERSION
AED-001AED-002
MAD
AEN
AEN
MAD
INSTRUCTIONS:
STEP#1 - REMOVE THE ALIGNMENT PLATES (2). ROTATE AEN TO ENSURE THE BLOWER IS DIRECTING AIR UPWARD (180°).
FIRST NEED TO SELF-DRILL THE DOOR HOOK ONTO AEN MODEL BEFORE MOUNTING IT ON TOP OF MAD MODEL.
STEP#2 - DISCARD THE PARTS# 123203, 123197, 123200, 123201 & 123216
STEP#3 - SLIDE IN THE PART# 123206 AT THE BOTTOM OF THE CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#4 - MOUNT THE TOP BRACKET PART#123196 ON THE MAD CABINET AND SECURE IN POSITION USING THE SCREWS
STEP#5 - MOUNT THE DOOR HOOK PART#123204 & SELF-DRILL ONTO AEN.
STEP#6 - APPLY FOAM STRIP PART #8668 AT THE FRONT FACE OF THE AEN CABINET
STEP#7 - MOUNT THE AEN CABINET ON TOP OF THE MAD CABINET AND SECURE IT IN PLACE USING
THE ALIGNMENT PLATES AND SCREWS
STEP#8 - SLIDE IN THE FILTER INTO THE FILTER RETAINER AT THE BOTTOM
STEP#9 - MOUNT THE SOLID DOOR 123202 (REFER I/O FOR DOOR MOUNTING)
STEP#10 - DISCARD PART# 8668 FOR AED-001 TO AED-000 CONVERSION
# 123092
NOVEMBER -2022
# 138007
NOVEMBER 2022
PARTS NEEDED FOR CONVERSION
ITEM #
PART #
DESCRIPTION
Qty.
1 123197
CABINET TOP SOLID, MHAH 24-60
1
2 123216
BLOCK-OFF PLATE (MAD)
1
3 8051
# 10 X 1/2 TEK SCREW - AIR HANDLERS
2
Figure 3B-7K
