OM00017 Rev B, FP00066, FP00102 Operation Manual – March 24, 2023 Page 5 of 10

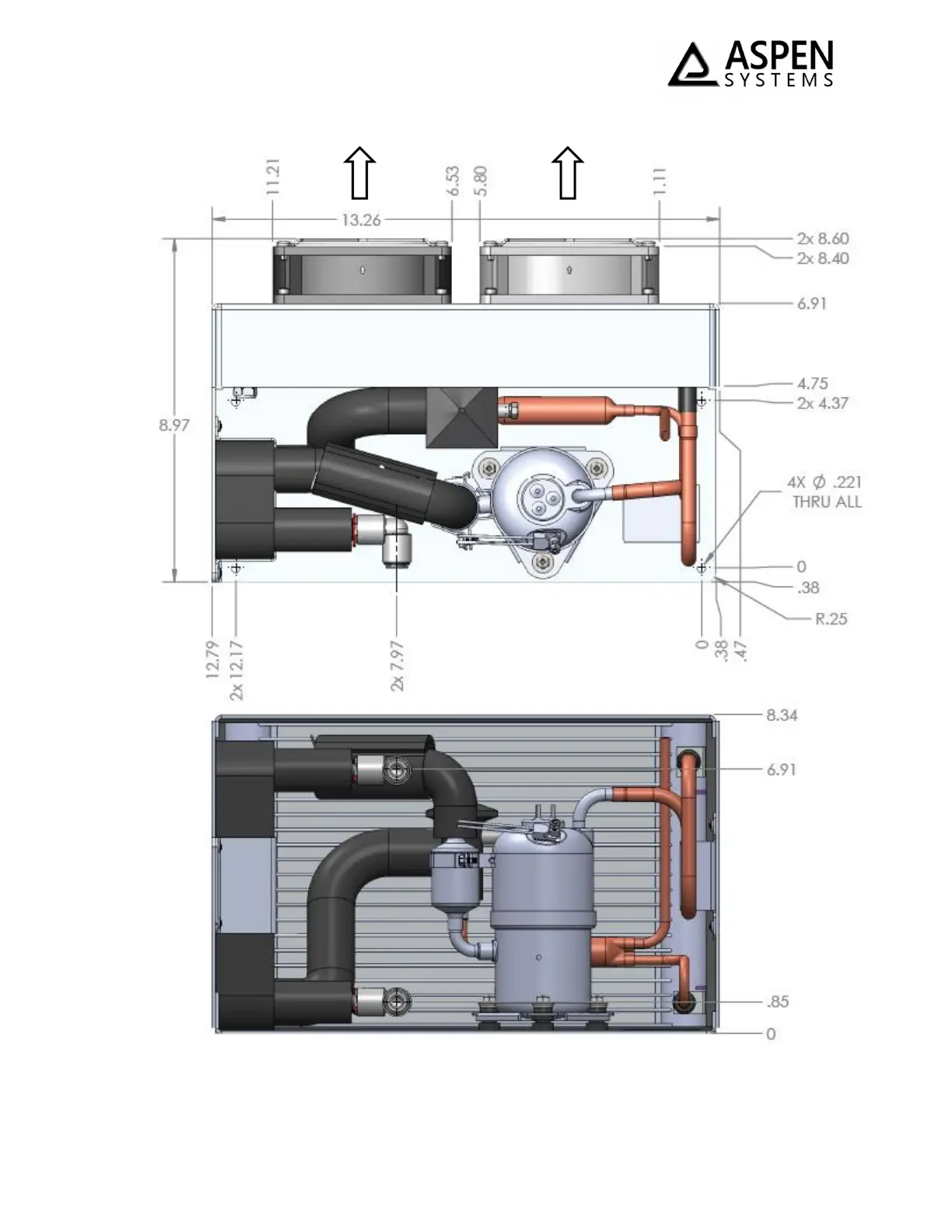

Figure 2: LCM Dimensional Drawing - Note all dimensions are in inches
Airflow direction
Airflow direction
