Aspen mini orange User Manual

1 2
POWER:
EARTH: Green/Yellow
LIVE: Brown
NEUTRAL: Blue
ALARM / VOLT FREE
COMMON: Grey
NORMALLY CONNECTED: Purple
NORMALLY OPEN: Orange
Technical Data:
•
Power supply 230V A or 20W
Alternative voltages available
•
1PH 50/60 Hz
•
Volt-free N.O., N.C. 8A Resistive
(5A INDUCTIVE)
•
Hall effect semi conductor level
sensors
•
Water flow rate: 14 litres per hr
at zero head
•
Maximum recommended head: 8mtrs
•
33dB(A) @ 1 metre & 8 metre head
•
CE marked
•
Thermally protected pump.

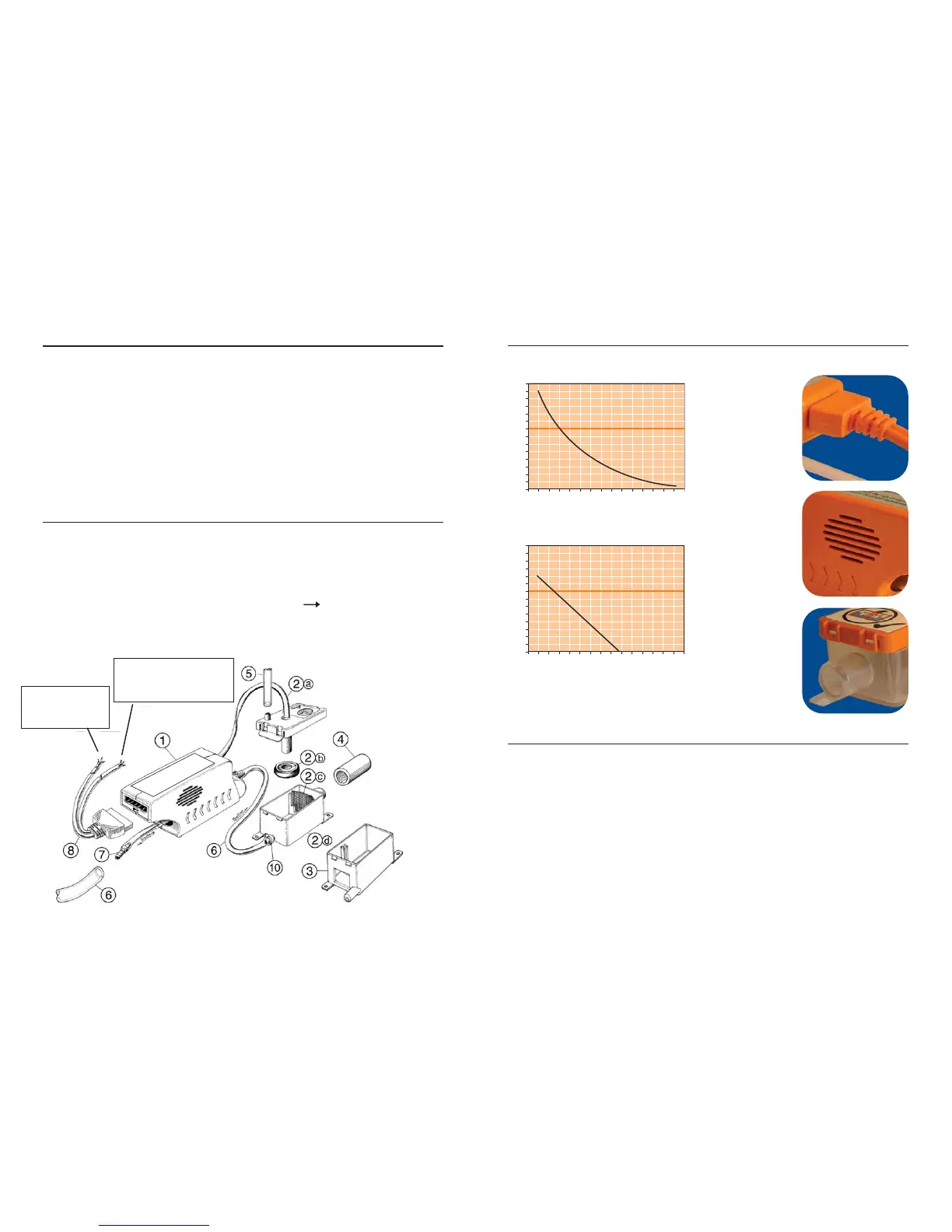

In the box:
Remove the pump from its packaging and
check that you have all the following items
provided in the box:
1. 1 x pump unit (52 x 122 x 38mm)
2. 1 x assembled reservoir (40 x 75 x 40mm)
a. lid & sensor cable
b. float
c. filter
d. reservoir
3. 1 x reservoir/submersible
(40 x 75 x 40mm)
4. 1 x 40mm orange silicone rubber tube
5. 1 x 15mm o/d x 4mm i/d vinyl tube
6. 1 x 1.5m x 9mm o/d x 6mm i/d vinyl tube
7. 1 x 6mm 4mm reducer
8. 1 x 6-pin socket lead assembly
9. 2 x 20mm x 50mm self-adhesive Velcro
10.4 x 300mm x 3.6mm cable ties
Typical Performance:
Product Safety:
•
CAUTION:
The Mini Orange Pump has been evaluated for use with water only.
•
WARNING:
Risk of electric shock. This pump is supplied with a grounding conductor
and grounding type attachment plug. To reduce the risk of electric shock, be certain
that it is connected only to a properly grounded, grounding type receptacle.
•
Ensure the pump is disconnected from the mains supply before carrying out any
adjustments or servicing.
•
Always ensure the metal magnet in the float is facing upwards.
•
Always ensure the reservoir is sitting flat and horizontal.
•
The pump is ideal for most working and living environments. It is not recommended
where the environment is oily or particularly dusty.
01 234 56 7891011 12 13 14 15
litres per hour
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
head in metres
0123456789101112 13 14 15
litres per hour
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
head in metres
WITH CONSTANT 1 METRE SUCTION LIFT
WITH NO SUCTION LIFT
WE RECOMMEND USING THIS PUMP
FOR NO GREATER THAN 8 MTRS HEAD
WE RECOMMEND USING THIS PUMP
FOR NO GREATER THAN 8 MTRS HEAD

Aspen mini orange Specifications

General

Max Flow Rate	12 L/h
Max Head	10 m
Sound Level	21 dB(A)
Power Consumption	16W
Class	II
Safety cut out	Yes
Max. Water Temperature	40°C
Power Supply	230V AC, 50Hz
