Aspen mini orange User Manual

A
B
A or B :

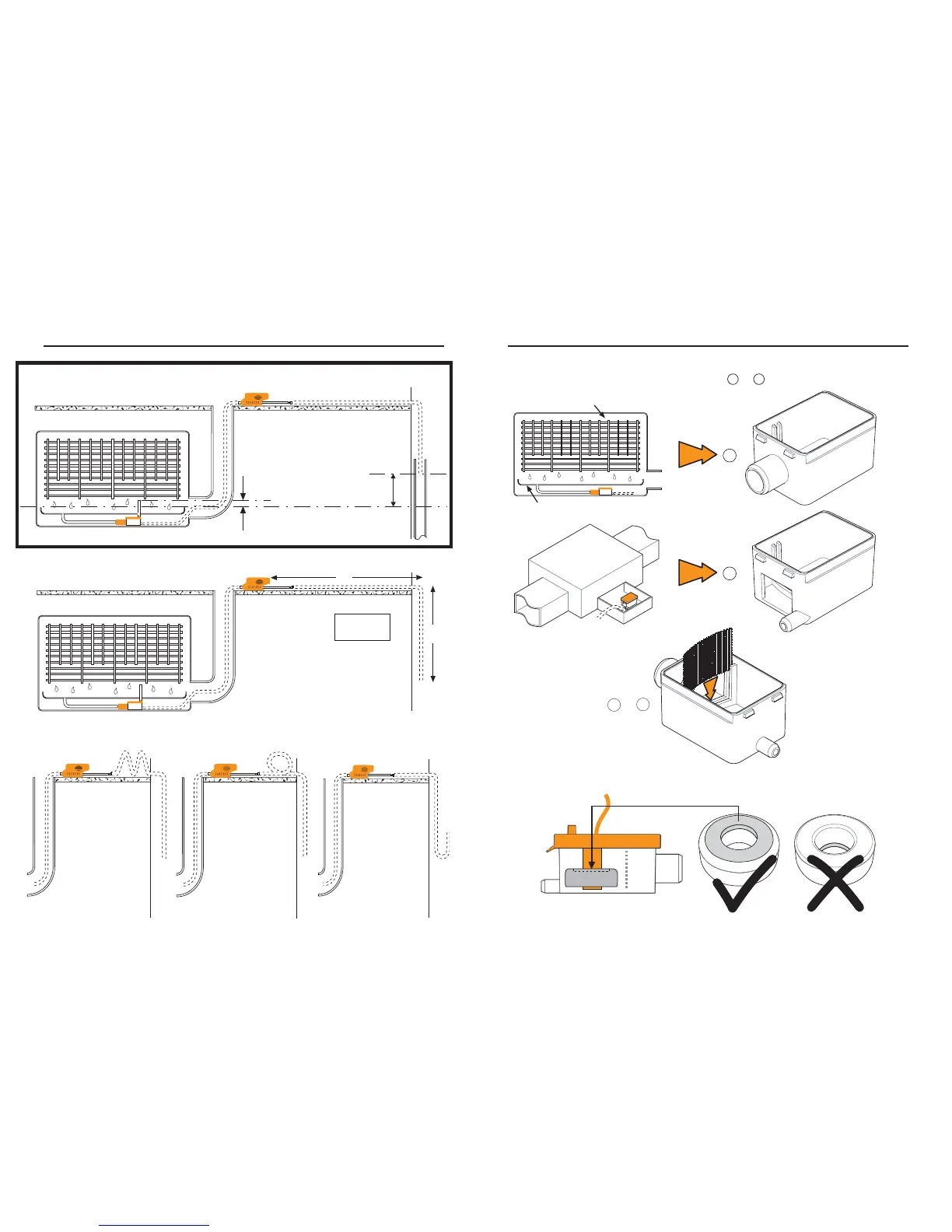

Example of a
ducted system
Preventing Siphoning: advice Installation:
• More tube length horizontal than vertical
Assess situation and choose either reservoir A or B .
• Cut discharge tube above water level of evaporator tray and direct end into
large pipe
• Create increased resistance • Add a loop • Turn back on itself
FALSE CEILING
FALSE CEILING
WATER LEVEL IN TRAY
TOP OF BREATHER TUBE
END OF DISCHARGE TUBE
X
X>Y
Y
1
Place filter in chosen reservoir.
2
Position float in reservoir with magnet uppermost, and clip lid onto reservoir.
3
EVAPORATOR COIL
CONDENSATE DRAIN TRAY
3 4

Aspen mini orange Specifications

General

Max Flow Rate	12 L/h
Max Head	10 m
Sound Level	21 dB(A)
Power Consumption	16W
Class	II
Safety cut out	Yes
Max. Water Temperature	40°C
Power Supply	230V AC, 50Hz
