7
6. ASSEMBLY
TOOLS REQUIRED:
Allen key
5mm
Allen key
6mm
Socket
14mm
Open ended spanner
14mm
Ratchet

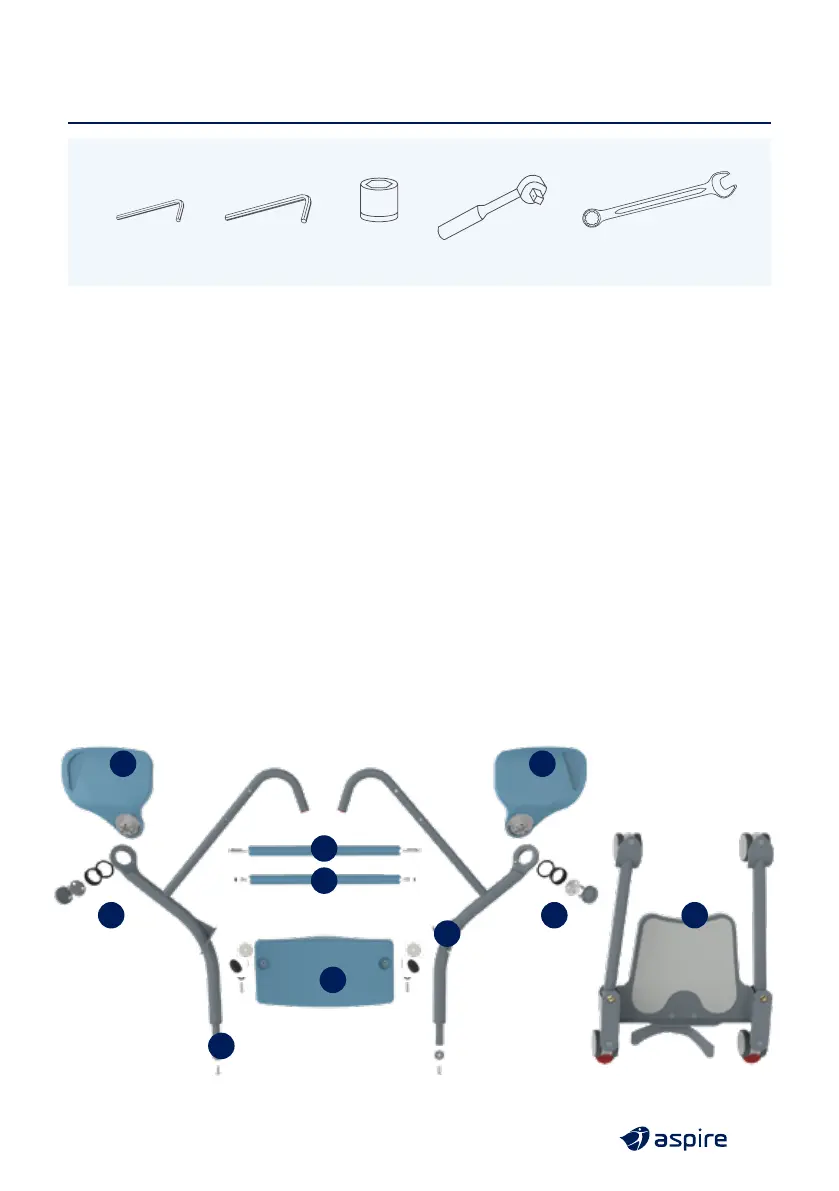

CARTON CONTAINS:
1. Base Unit
2. Right Upright Frame, M10 bolt and washer
3. Left Upright Frame, M10 bolt and washer
4. Knee pad with 2 x spacers, 2 x steel washers, 2 x nylon washers
and 2 x M8 bolts
5. Right Seat Pad
6. Left Seat Pad
7. 1 x Grab bar with 2 x Sling anchor bolts
8. 1 x Grab bar with 2 x Bolts and 2 x Plastic caps
9. 2 x Seat Pad mounting hardware
• 2 x Narrow retaining ring
• 2 x Deep retaining ring
(already mounted in each
Upright Frame)
• 2 x Mounting Plate
• 6 x Mounting Bolts
• 2 x Cover Cap
s
5 6
9 1
3
2
9
7
8
4
