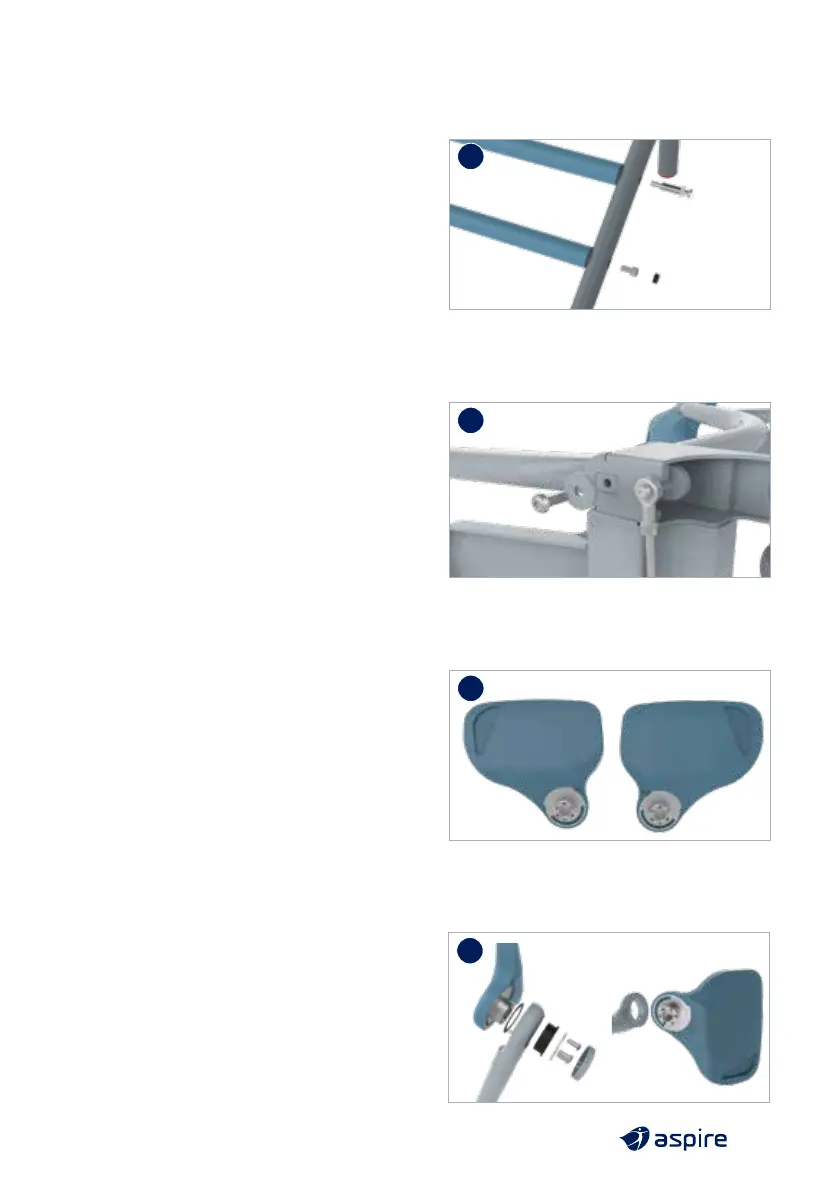

5. Place the Grab Bars in between
the arms of the Upright Frame.
Secure the top Grab Bar with
the sling anchors bolts and the
bottom Grab Bar with the two
bolts as shown. Tighten and
secure bolts to lock in place. Use
the two plastic caps to cover the
holes in the Upright Frames.
6. Fasten the Upright Frame to the
Base Unit using a large washer
and bolt. Tighten the bolt firmly.
The bolts are provided with
threadlocker on the thread, if this
is missing or more is required,
medium strength 243 Loctite can
be applied before tightening.
7. Select the desired seat pad
(left or right) and insert into the
appropriate side frame.
8. Slide the Narrow retaining ring
over the seat pad mounting
and nest the mounting into the
frame. Check to ensure it can
freely rotate through range.
