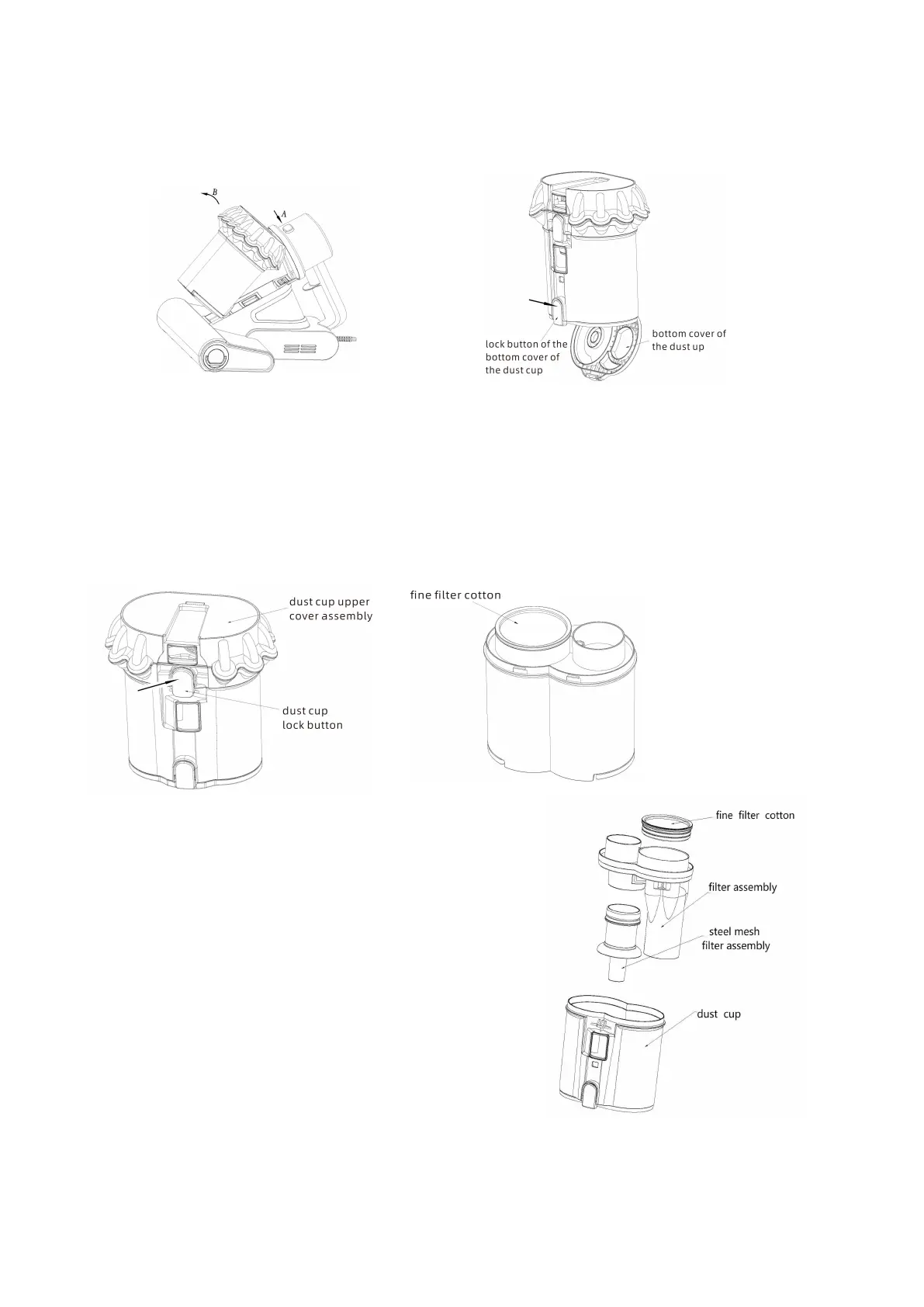

2. Press A as shown in figure A to press the release button of the dust cup,
cover the dust cup and rotate according to Figure B, lift the dust cup, and
remove the dust cup
3. One-button ash pouring: Hold the dust cup and press the lock button of the
bottom cover of the dust cup in the direction of the figure. The bottom cover
of the dust cup will open automatically and the dust will be poured out
4. Clean and replace the fine filter cotton. Press the dust cup lock button
according to the figure, remove the dust cup cover assembly, and then remove
the fine filter cotton according to the figure, wash with water, dry it, put it
back, and close the cover again (it is recommended to replace the fine filter
cotton that has been cleaned for several times).
5. Clean the inner parts of the dust cup:
after removing the upper cover assembly,
Remove the parts shown one by one and clean
them with water until they are fully cleaned
Reload after drying.
