ASROCK Rack SPC621D8-2L2T User Manual

44 45
English

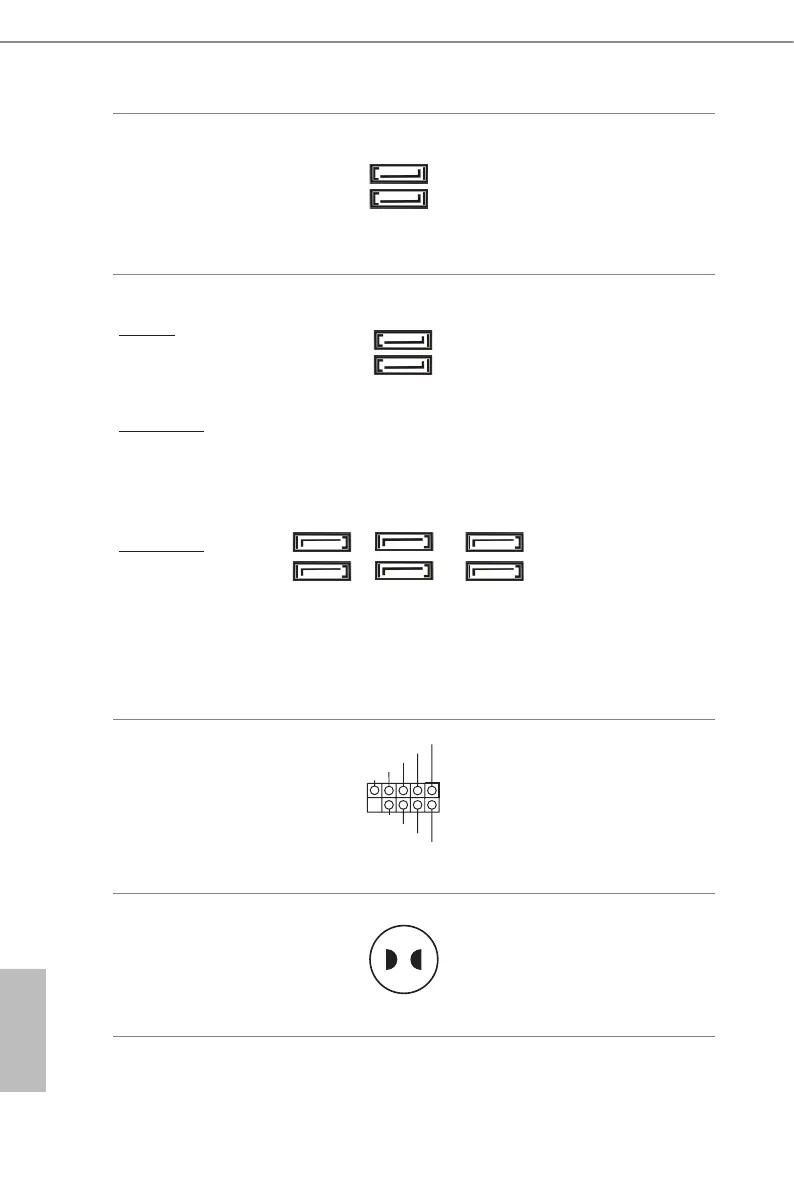

Serial ATA3 DOM
Connectors
(SATA_4)
(SATA_5)
e SATA3 DOM connectors
support both SATA DOMs
(Disk-On-Module) and SATA
data cables for internal storage
devices.
Serial ATA3 Connectors
Vertical:
(SATA_4)
(SATA_5)
Right-Angle:
(SPC621D8-2T/ SPC621D8 only)
(SATA_6)
(SATA_7)
Right-Angle:
(SPC621D8 only)
(SSATA_0)
(SSATA_1)
(SPC621D8-2T/ SPC621D8 only)
(SSATA_2)
(SSATA_3)
ese two SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
Serial Port Header
(9-pin COM1)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
is COM header supports a
serial port module.
Clear CMOS Pad
(CLR MOS1)
is allows you to clear the
data in CMOS. To clear CMOS,
take out the CMOS battery and
short the Clear CMOS Pad.
SATA _5
SATA _4
SATA _7
SATA _6
SSATA _3
SSATA _2
SSATA _1
SSATA _0
SATA _5
SATA _4
