16
ASRock 970DE3/U3S3 Motherboard
English

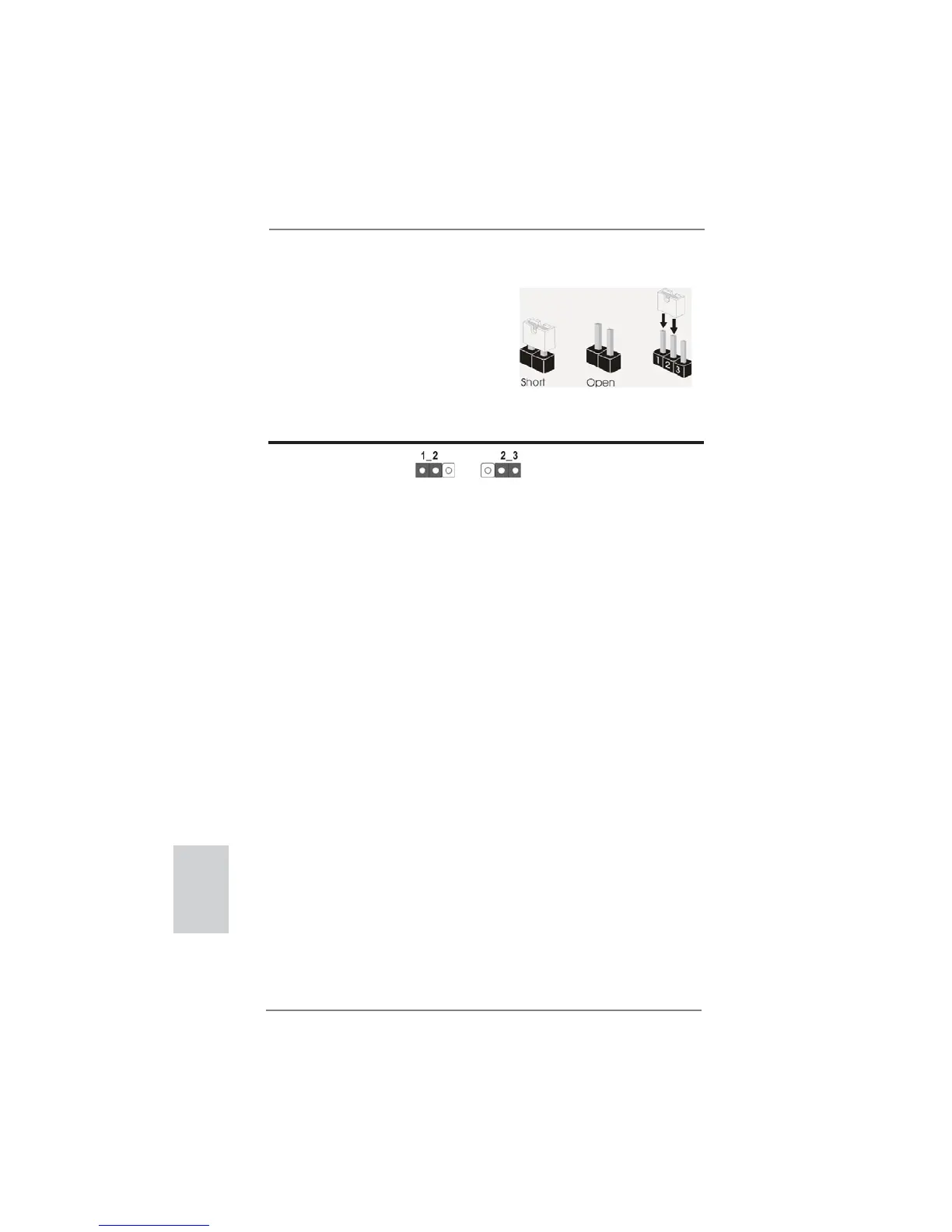

2.5 Jumpers Setup
The illustration shows how jumpers are
setup. When the jumper cap is placed on
pins, the jumper is “Short”. If no jumper cap
is placed on pins, the jumper is “Open”. The
illustration shows a 3-pin jumper whose
pin1 and pin2 are “Short” when jumper cap
is placed on these 2 pins.
Jumper Setting Description
Clear CMOS Jumper
(CLRCMOS1)
(see p.2, No. 38)
Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the
system parameters to default setup, please turn off the computer and unplug
the power cord from the power supply. After waiting for 15 seconds, use a
jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,
please do not clear the CMOS right after you update the BIOS. If you need
to clear the CMOS when you just nish updating the BIOS, you must boot
up the system rst, and then shut it down before you do the clear-CMOS ac-
tion. Please be noted that the password, date, time, user default pro le, 1394
GUID and MAC address will be cleared only if the CMOS battery is removed.
Clear CMOSDefault

Other manuals for ASROCK 970DE3/U3S3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK 970DE3/U3S3 and is the answer not in the manual?

ASROCK 970DE3/U3S3 Specifications

General IconGeneral
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR3-SDRAM
Maximum internal memory32 GB
Supported memory clock speeds800, 1066, 1333, 1600, 1866 MHz
Processor socketSocket AM3+
Processor manufacturerAMD
Compatible processor seriesAMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
USB 2.0 connectors3
Number of SATA II connectors6
Number of SATA III connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors-
I/O ports1 x IR 1 x ATA133 IDE 1 x HDMI_SPDIF 1 x Power LED 1 x 8 pin 12V power
Serial ports quantity1
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
CertificationFCC, CE, WHQL ErP/EuP Ready
Component forPC
Motherboard chipsetAMD 770
Audio output channels5.1 channels
Motherboard form factorATX
Motherboard southbridgeAMD SB710
Compatible operating systemsWindows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP Media Center / XP 64-bit
Supported storage drive interfacesSATA
Parallel processing technology supportNot supported
LAN controllerRealtek RTL8111E
Ethernet interface typeGigabit Ethernet
BIOS typeAMI
ACPI version1.1
BIOS memory size64 Mbit
Weight and Dimensions IconWeight and Dimensions
Depth191 mm
Width305 mm
