ASROCK 980DE3/U3S3 Quick Installation Guide

130
ASRock 980DE3/U3S3 Motherboard
默認設置
清除 CMOS

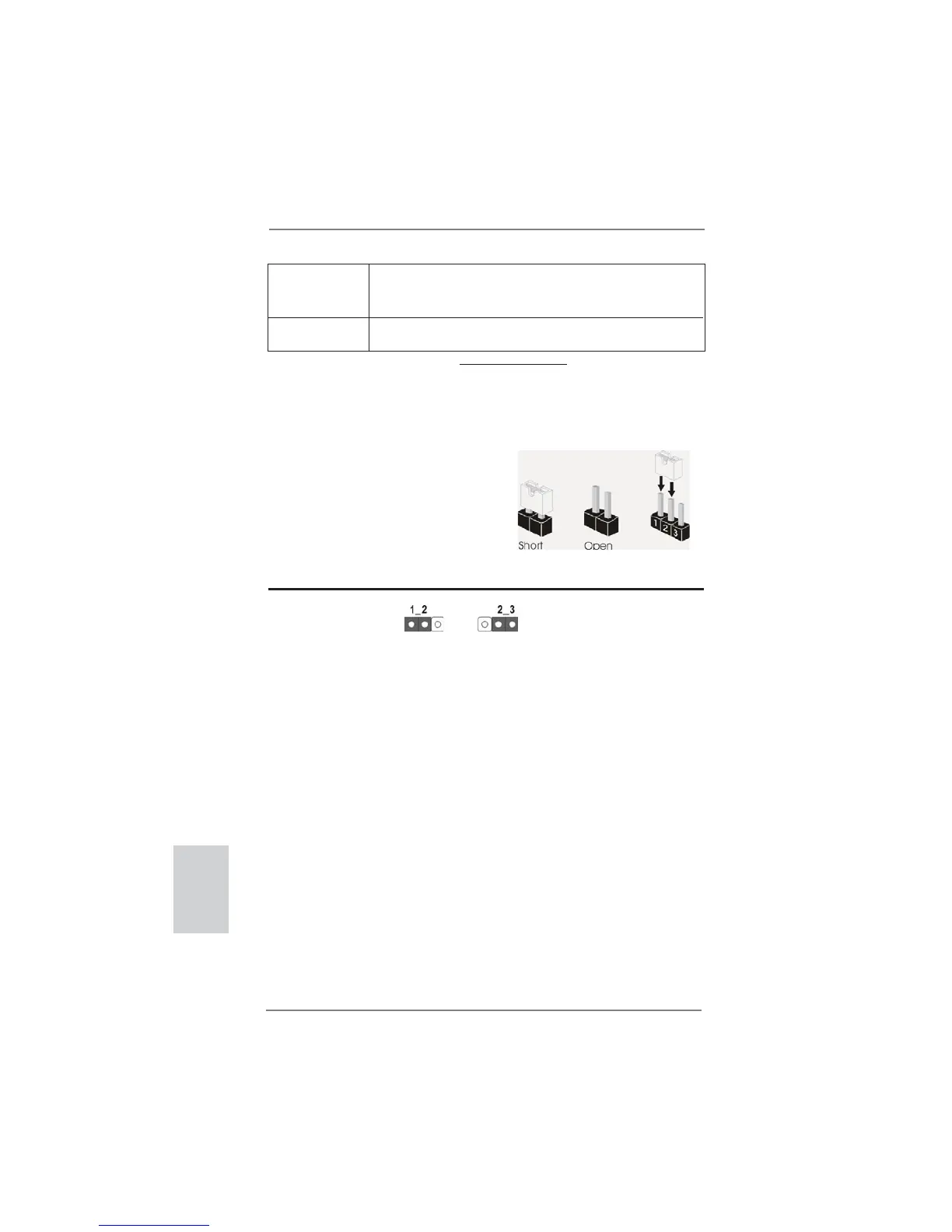

1.3 跳線設置
插圖所示的就是設置跳線的方法。當跳線
帽放置在針腳上時 , 這個跳線就是“短
接”。如果針腳上沒有放置跳線帽 , 這個
跳線就是“開路”。插圖顯示了一個 3 針
腳的跳線 , 當跳線帽放置在針腳 1 和針腳 2
之間時就是“短接”。
接腳 設定
清除 CMOS
(CLRCMOS1, 3 針腳跳線 )
(見第2頁第38項)
注意： CLRCMOS1 允許您清除 CMOS 中的數据。如要清除并將系統參數恢复至默認
設置，請關閉計算机，然后從電源插座上拔掉電源線。等待 15 秒后，使用跳
線帽將 CLRCMOS1 上的插針 2 和插針 3 短接 5 秒。但是，請勿在更新 BIOS 后
立即清除 CMOS。如果需要在更新 BIOS 后立即清除 CMOS，必須在執行 CMOS
清除操作之前，先啟動然后關閉系統。請注意，只有取出 CMOS 電池，密碼、
日期、時間、用戶默認配置文件、1394 GUID 和 MAC 地址才會被清除。
簡體中文
操作系統 - Microsoft
®
Windows
®
8/8 64 位元 /7/7 64 位元 /Vista
TM
/
Vista
TM
64 位元 /XP/XP Media Center/XP 64 位元适用于此主
板
認證 - FCC, CE, WHQL
- 支持 ErP/EuP( 需要同時使用支持 ErP/EuP 的電源供應器 )
* 請參閱華擎網站了解詳細的產品信息 : http://www.asrock.com

ASROCK 980DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	IDE, SATA II, SATA III
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	16 Mbit

Weight and Dimensions

Width	- mm
