ASROCK 980DE3/U3S3 Quick Installation Guide

131
ASRock 980DE3/U3S3 Motherboard
簡體中文
Serial ATAII 接口 這裡有六組 Serial ATAII
(SATAII_1 (PORT 0):
(SATAII) 接口支持 Serial
見第2頁第20項)
(SATA) 數據線作為內部儲存
(SATAII_2 (PORT 1):
設置。目前 SATAII 界面理論上
見第2頁第19項)
可提供高達 3.0Gb/s 的數據傳輸
(SATAII_3 (PORT 2):
速率。
見第2頁第18項)
(SATAII_4 (PORT 3):
見第2頁第17項)
(SATAII_5 (PORT 4):
見第2頁第16項)
(SATAII_6 (PORT 5):
見第2頁第15項)
Serial ATA3 接口 這裡有兩組 Serial ATA3
(SATA3_1 (PORT 6): 見第 2 頁第 11 項 )
(SATA3) 接口支持 Serial
(SATA3_2 (PORT 7): 見第 2 頁第9項)
(SATA) 數據線作為內部儲存
設置。目前 SATA3 界面理論
上可提供高達 6.0Gb/s 的數
據傳輸速率。

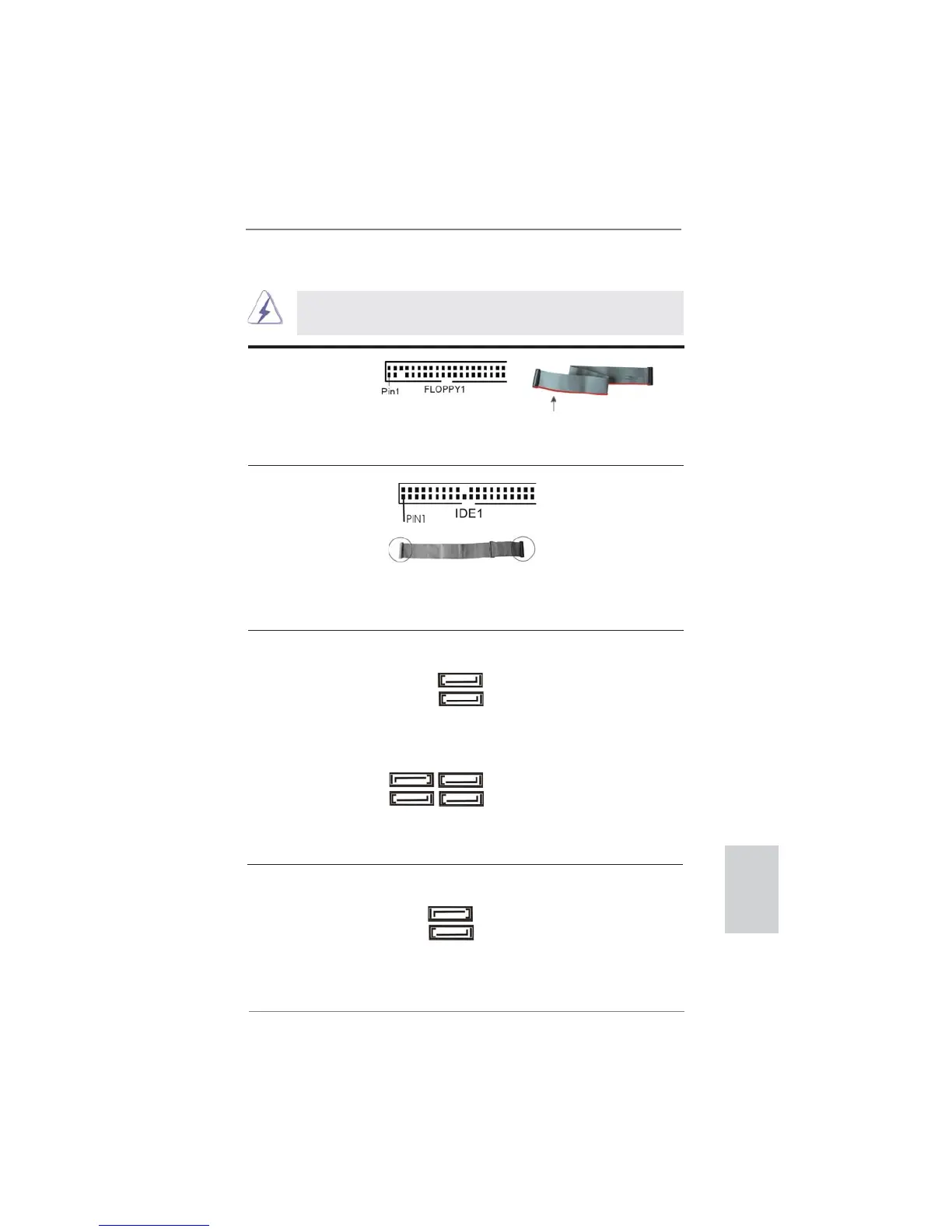

1.4 板載接頭和接口
板載接頭和接口不是跳線。切勿將跳線帽放置在這些接頭和接口上。將
跳線帽放置在接頭和接口上將會導致主板的永久性損壞！
軟驅接頭
（33 針 FLOPPY1）
(見第2頁第27項)
注意 : 請確保數據線標紅色斑紋的一邊插入連接器第 1 針腳 (Pin1) 的位置。
將標示紅色斑紋的一邊插入第 1 針腳 (Pin1)
主IDE連接頭(黑色)
(39 針 IDE1，見第 2 頁第 36 項 )
注意 : 請查閱您的 IDE 驅動器供應商提供的說明書了解詳細資料。
藍色端接到主板上 黑色端接到硬盤驅動器上
80 針 的 ATA 66/100/133 排線
SATAII_1 SATAII_3
(PORT 0) (PORT 2)
SATAII_2 SATAII_4
(PORT 1) (PORT 3)
SATAII_5
(PORT 4)
SATAII_6
(PORT 5)
SATA3_1
(PORT 6)
SATA3_2
(PORT 7)

ASROCK 980DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	IDE, SATA II, SATA III
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	16 Mbit

Weight and Dimensions

Width	- mm
