ASROCK 980DE3/U3S3 Quick Installation Guide

145
ASRock 980DE3/U3S3 Motherboard

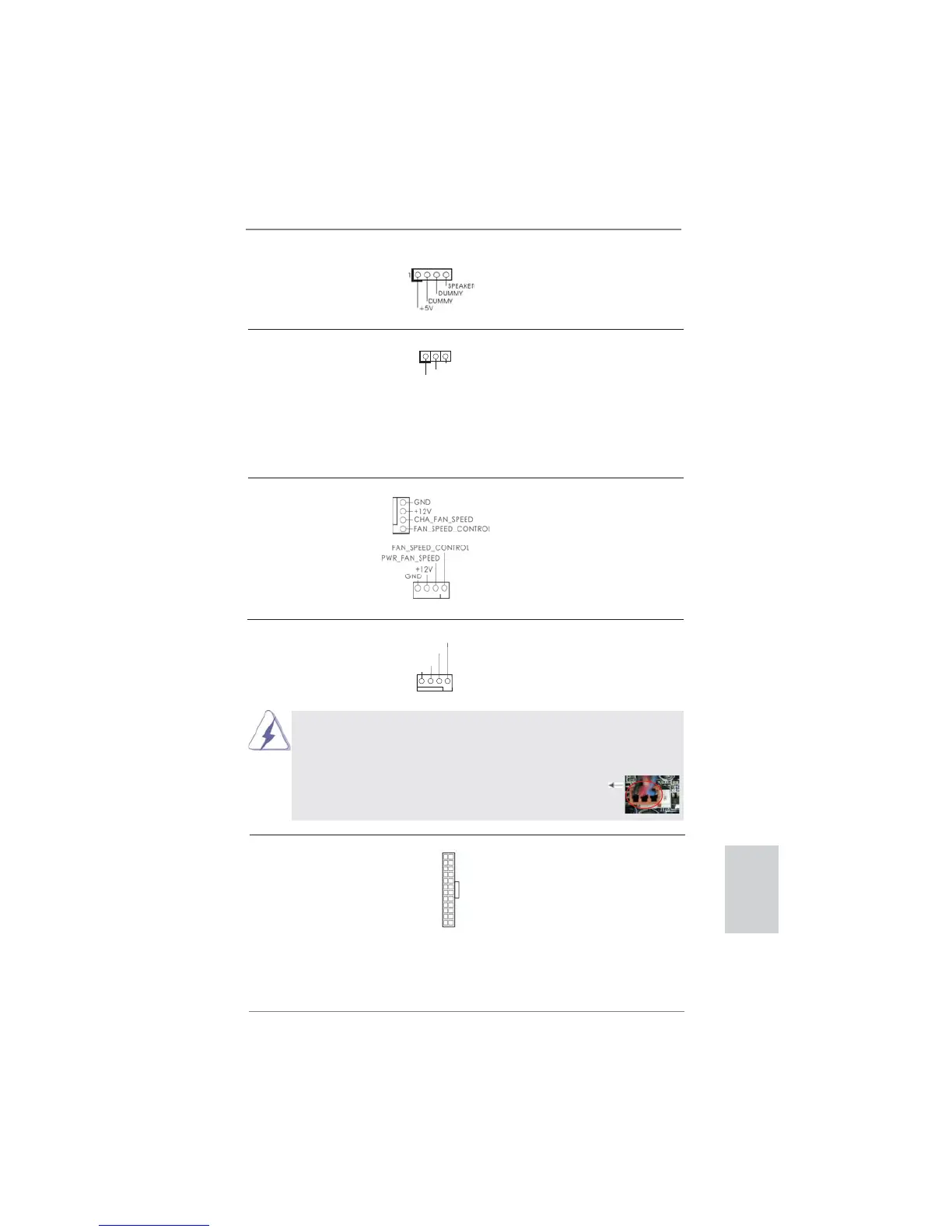

機箱喇叭接頭 請將機箱喇叭連接到這個接
(4 針 SPEAKER1)
頭。
(見第2頁第26項)
機箱 , 電源風扇接頭 請將風扇連接線接到這個接
(4 針 CHA_FAN1)
頭，並讓黑線與接地的針腳
(見第2頁第12項)
相接。
(4 針 PWR_FAN1)
(見第2頁第2項)
電源指示燈接頭 請將機箱電源指示燈連接到
(3 針 PLED1)
此接頭，以指示系統電源狀
(見第2頁第25項)
態。當系統正在運行時，
LED 指示燈亮。在 S1 模式
下，LED 指示燈會不停閃
爍。在 S3/S4 或 S5 模式 ( 關
機 ) 下，LED 指示燈會熄滅。
1
PLED+
PLED+
PLED-
CPU 風扇接頭 請將 CPU 風扇連接線接到這個
(4 針 CPU_FAN1)
接頭，並讓黑線與接地的針腳
(見第2頁第3項)
相接。
GND
+12V
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
繁體中文
雖然此主板支持 4-Pin CPU 風扇 (Quiet Fan, 靜音風扇 ), 但是沒有調速功能的
3-Pin CPU 風扇仍然可以在此主板上正常運行。如果您打算將 3-Pin CPU 風扇
連接到此主板的 CPU 風扇接口 , 請將它連接到 Pin 1-3。
3-Pin 風扇的安裝
Pin 1-3 連接
ATX 電源接頭 請將 ATX 電源供應器連接到這
(24 針 ATXPWR1)
個接頭。
(見第2頁第10項)
12
1
24
13

ASROCK 980DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	IDE, SATA II, SATA III
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	16 Mbit

Weight and Dimensions

Width	- mm
