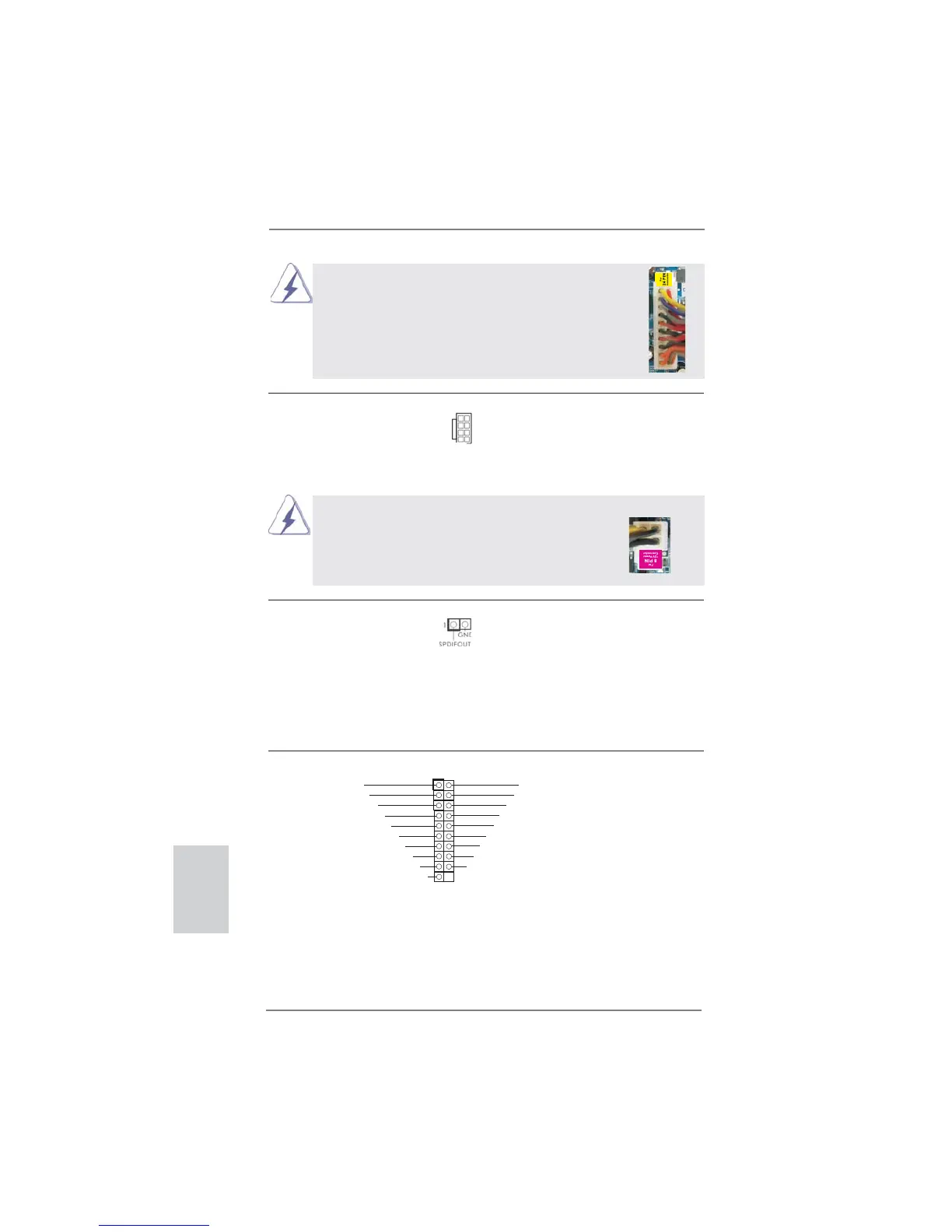

ASROCK 980DE3/U3S3 Quick Installation Guide

146
ASRock 980DE3/U3S3 Motherboard
ATX 12V 電源接口 請注意，必需將帶有 ATX 12V
(8 針 ATX12V1)
插頭的電源供應器連接到這個
(見第2頁第1項)
插座，這樣就可以提供充足的
電力。如果不這樣做，就會導
致供電故障。
雖然此主機板提供 8-pin ATX 12V 電源接口 , 但是您仍然可以使用傳統的
4-pin ATX 12V 電源。為了使用 4-pin ATX 12V 電源 , 請
順著 Pin 1 和 Pin 5 插上電源接頭。
4-Pin ATX 12V 電源安裝說明
5 1
8 4
5 1
8 4
繁體中文
雖然此主機板提供 24-pin ATX 電源接口 , 但是您仍然可以使
用傳統的 20-pin ATX 電源。為了使用 20-pin ATX 電源 , 請順
著 Pin 1 和 Pin 13 插上電源接頭。
20-Pin ATX 電源安裝說明
12
1
24
13
HDMI_SPDIF 接頭 HDMI_SPDIF 接頭，提供 SPDIF
(2 針 HDMI_SPDIF1)
音效輸出至HDMI顯示卡，支
(見第2頁第30項)
援將電腦連接至帶 HDMI 的數
位電視 / 投影機 / 液晶銀幕等
設備。請將 HDMI 顯示卡的
HDMI_SPDIF 接口連接到這個
接頭。
USB 3.0 擴充接頭 除了位於 I/O 面板的兩個 USB
(19 針 USB3_2_3)
3.0 接口之外，這款主機板有一
(見第2頁第39項)
組 USB 3.0 接針。這組 USB 3.0
接針可以支援兩個 USB 3.0 接
口。
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
IntA
_
P
_
D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
IntA_P_SSRX-
Vbus
IntA_P_SSRX-

ASROCK 980DE3/U3S3 Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866 MHz
System bus rate	5.2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Processor thermal power (max)	140 W
Maximum number of SMP processors	1
Processor system buses supported	2600 MHz
USB 2.0 connectors	3
Number of SATA II connectors	6
Number of SATA III connectors	2
eSATA ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Motherboard chipset	AMD 760G
Audio output channels	5.1 channels
Motherboard form factor	ATX
Motherboard southbridge	AMD SB710
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
RAID levels	0, 1, 10, JBOD
Supported storage drive interfaces	IDE, SATA II, SATA III
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8111E
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	16 Mbit

Weight and Dimensions

Width	- mm
