ASROCK A520M HVS Manual

English
1
A520M-HDV
A520M-HVS
AMD
Promontory
A520
A520M-HDV
BIOS
ROM
ATXPWR1
FSB800
DDR4_A1 (64 bit, 288-pin module)
DDR4_A2 (64 bit, 288-pin module)
Super
I/O
LAN
AUDIO
CODEC
PCIE2
PCIE1
HD_AUDIO1
1
CPU_FAN1
1
COM1
3
4
2
6
5
USB 2.0
T: USB1
B: USB2
PS2
Keyboard/
Mouse
CMOS
Battery
1
USB 3_5_6
1
CHA_FAN2
HDLED RESET
PLED PWRBTN
PANEL1
1
15
10
9813
17
SPK_CI1
1
USB 3.2 Gen1
T: USB1
B: USB2
Top:
LINE IN
Cente r:
FRONT
Botto m:
MIC IN
RJ-45 LAN
USB 3.2 Gen1
T: USB3
B: USB4
ATX 12V
SOCKETAM4
CHA_FAN1
7
14
M2_1
USB_5_6
1
USB_3_4
1
12 11
RoHS
1
SPI_TPM_J1
16
HDMI1
CLRCMOS1
1
Ultra M.2
PCIe Gen3 x4
SATA3 _3
SATA3 _4
SATA3 _1
SATA3 _2

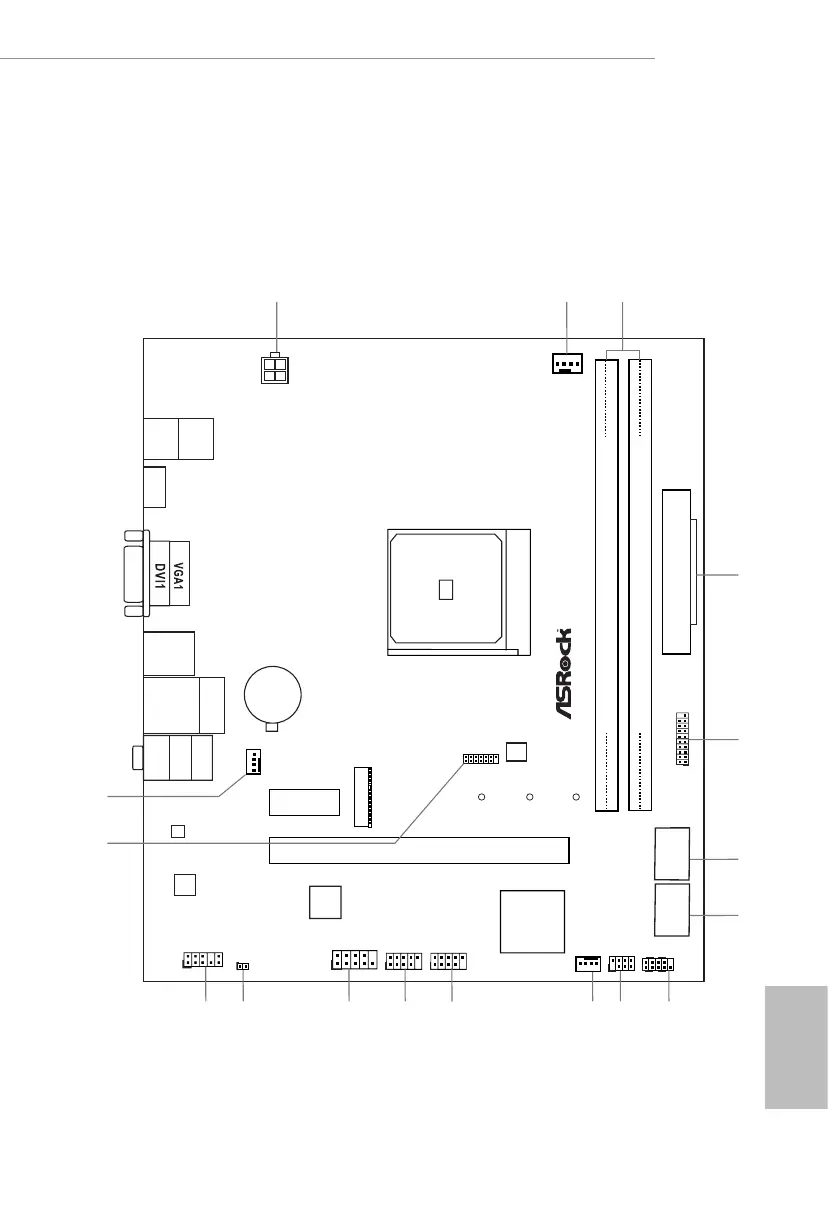

Motherboard Layout
A520M-HDV:

ASROCK A520M HVS Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3 3rd Gen, AMD Ryzen 5 3rd Gen, AMD Ryzen 7 3rd Gen, AMD Ryzen 9 3rd Gen
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3800, 3866, 4000, 4133, 4200, 4266, 4333, 4400, 4466, 4500, 4533 MHz
Number of HDDs supported	5
Supported storage drive interfaces	M.2, SATA III
Graphics card	Radeon Vega
Parallel processing technology support	-
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Component for	PC
Motherboard chipset	AMD A520
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	UEFI AMI
Cables included	SATA
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	201 mm
Width	230 mm
