ASROCK A55M-HVS Quick Installation Guide

2
ASRock A55M-HVS Motherboard
English

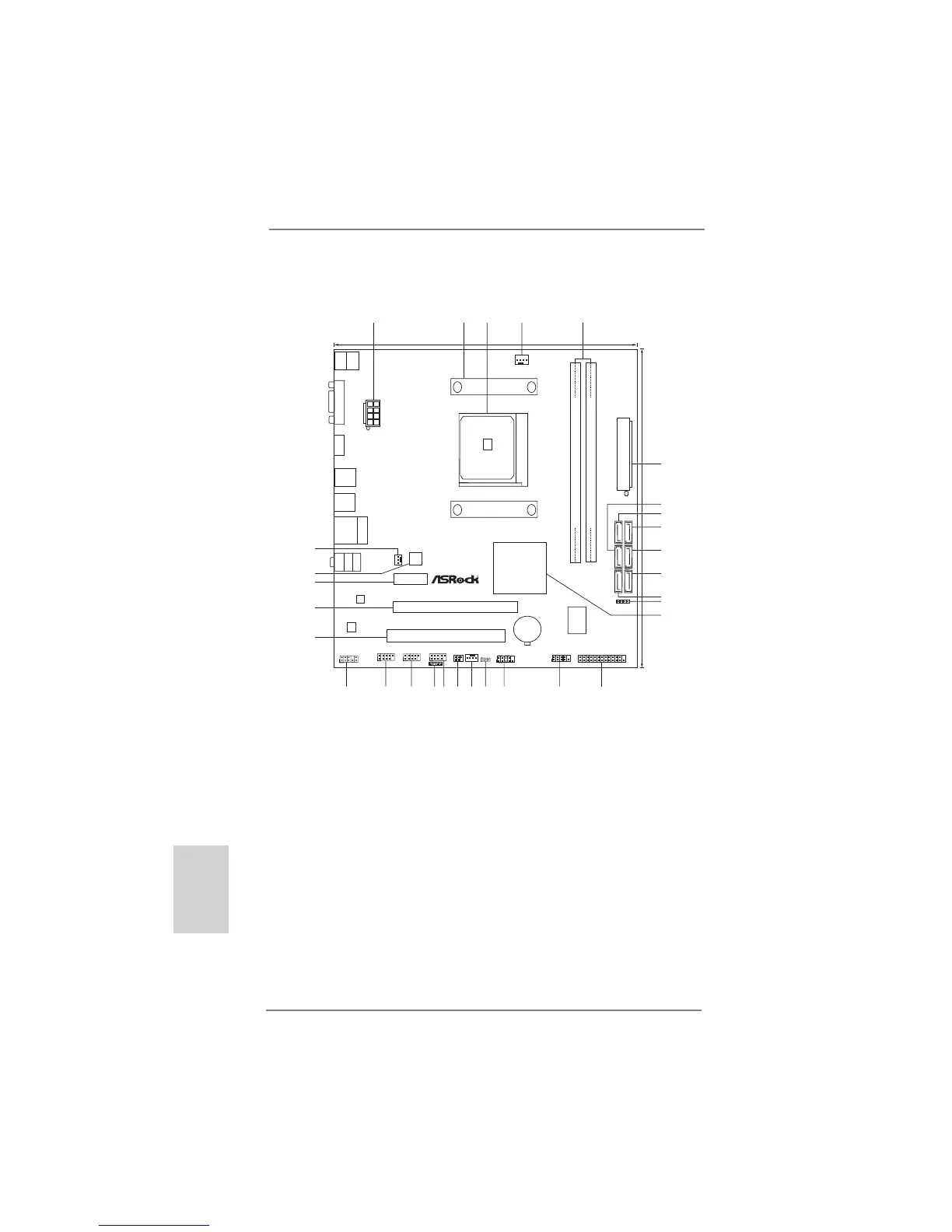

Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 16 COM Port Header (COM1)
2 CPU Heatsink Retention Module 17 System Panel Header (PANEL1, White)
3 CPU Socket 18 Clear CMOS Jumper (CLRCMOS1)
4 CPU Fan Connector (CPU_FAN1) 19 Chassis Fan Connector (CHA_FAN1)
5 2 x 240-pin DDR3 DIMM Slots 20 Infrared Module Header (IR1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 21 USB 2.0 Header (USB6_7, Blue)
6 ATX Power Connector (ATXPWR1) 22 Consumer Infrared Module Header (CIR1)
7 SATA2 Connector (SATA_3, Blue) 23 USB 2.0 Header (USB8_9, Blue)
8 SATA2 Connector (SATA_5, Blue) 24 USB 2.0 Header (USB10_11, Blue)
9 SATA2 Connector (SATA_6, Blue) 25 Front Panel Audio Header (HD_AUDIO1, White)
10 SATA2 Connector (SATA_4, Blue) 26 PCI Slot (PCI1)
11 SATA2 Connector (SATA_2, Blue) 27 PCI Express 2.0 x16 Slot (PCIE2; Blue)
12 SATA2 Connector (SATA_1, Blue) 28 PCI Express 2.0 x1 Slot (PCIE1; White)
13 Chassis Speaker Header (SPEAKER 1, White) 29 SPI Flash Memory (32Mb)
14 Southbridge Controller 30 Power Fan Connector (PWR_FAN1)
15 Print Port Header (LPT1, White)
Super
I/O
CMOS
BATTERY
ATXPWR1
AMD
A55 FCH
(Hudson-D2)
Chipset
COM1
PCIE1
PCI1
LAN
AUDIO
CODEC
1
CLRCMOS1
1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
1
22.6cm (8.9-in)
21.6cm (8.5-in)
6
7
1
24
3
5
8
9
10
11
12
13
14
15
16
17
181920
2122
23
24
25
26
27
28
29
32Mb
BIOS
IR1
1
PCIE2
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
SATA_2
HDMI1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
1
1
1
USB6_7
USB8_9
USB10_11
PWR_FAN1
A55M-HVS
ErP/EuP Ready
Designed in Taipei
RoHS
DDR3 2400+
DX11
USB 2.0
T: USB 0
B: USB1
CIR1
1
SOCKET FM1
SATA_1
SATA_4
SATA_3
1
LPT1
ATX12V1
HDMI 1.4a
PS2
Mouse
PS2
Keyboard
VGA1
USB 2.0
T: USB 2
B: USB3
30
SATA_6
SATA_5
USB 2.0
T: USB 4
B: USB5
Dual Graphics
X
Fast USB

ASROCK A55M-HVS Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	800, 1066, 1333, 1600, 1866, 2400 MHz
Processor socket	Socket FM1
Processor manufacturer	AMD
Compatible processor series	AMD Sempron
Processor thermal power (max)	100 W
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA II connectors	6
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
HDMI version	1.4a
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	VIA VT1705
Cooling type	Passive
Certification	FCC, CE, WHQL, ErP/EuP
Component for	PC
Power source type	ATX
Motherboard chipset	AMD A55 FCH
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Compatible operating systems	Windows 7\\r Windows Vista\\r Windows XP
RAID levels	0, 1, 10
Supported storage drive interfaces	SATA II
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0
Cables included	SATA
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	32 Mbit

Weight and Dimensions

Depth	216 mm
Width	226 mm
