ASRock A75M Motherboard
English

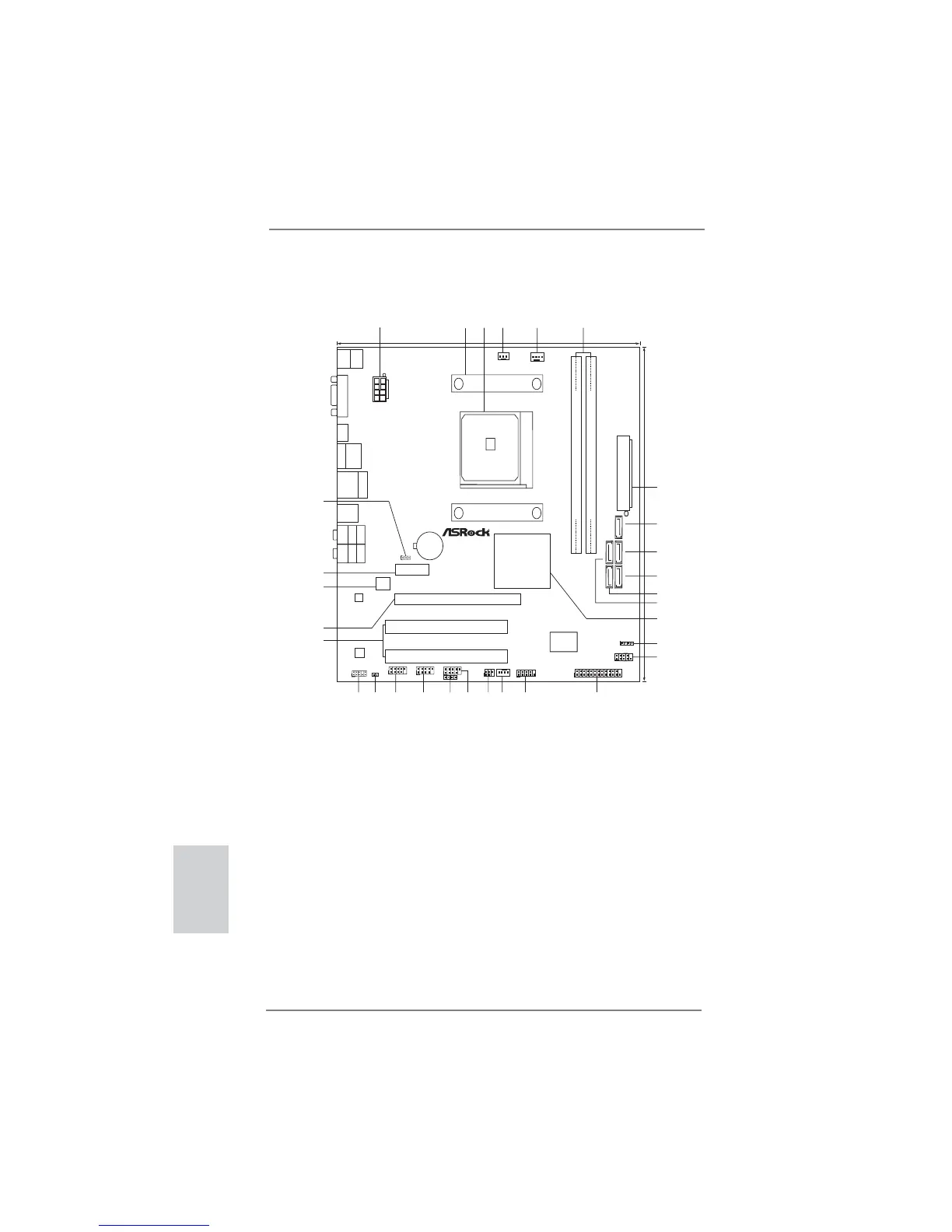

Motherboard Layout
1 ATX 12V Power Connector (ATX12V1) 16 Print Port Header (LPT1, White)
2 CPU Heatsink Retention Module 17 COM Port Header (COM1)
3 CPU Socket 18 Chassis Fan Connector (CHA_FAN1)
4 Power Fan Connector (PWR_FAN1) 19 Infrared Module Header (IR1)
5 CPU Fan Connector (CPU_FAN1) 20 USB 2.0 Header (USB10_11, Blue)
6 2 x 240-pin DDR3 DIMM Slots 21 Consumer Infrared Module Header (CIR1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 22 USB 2.0 Header (USB8_9, Blue)
7 ATX Power Connector (ATXPWR1) 23 USB 2.0 Header (USB6_7, Blue)
8 SATA3 Connector (SATA_5, White) 24 HDMI_SPDIF Header (HDMI_SPDIF1, White)
9 SATA3 Connector (SATA_3, White) 25 Front Panel Audio Header (HD_AUDIO1, White)
10 SATA3 Connector (SATA_1, White) 26 PCI Slots (PCI1-2)
11 SATA3 Connector (SATA_2, White) 27 PCI Express 2.0 x16 Slot (PCIE2; Blue)
12 SATA3 Connector (SATA_4, White) 28 SPI Flash Memory (32Mb)
13 Southbridge Controller 29 PCI Express 2.0 x1 Slot (PCIE1; White)
14 Chassis Speaker Header (SPEAKER 1, White) 30 Clear CMOS Jumper (CLRCMOS1)
15 System Panel Header (PANEL1, White)
Super
I/O
CMOS
BATTERY
ATXPWR1
AMD
A75 FCH
(Hudson-D3)
Chipset
COM1
PCIE1
PCI1
PCI2
LAN
AUDIO
CODEC
1
CLRCMOS1
1
CPU_FAN1
HDLED RESET
PLED PWRBTN
1
PANEL1
CHA_FAN1
SPEAKER1
1
HD_AUDIO1
1
24.4cm (9.6-in)
21.6cm (8.5-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
2122
23
24
25
26
27
28
29
32Mb
BIOS
IR1
1
PCIE2
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
SATA_1
HDMI1
Top:
CTR BASS
Center:
REAR SPK
Bottom:
Optical
SPDIF
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
RJ-45 LAN
eSATA
USB 2.0
T: U SB 2
B: USB3
1
1
1
USB10_11
USB8_9
USB6_7
PWR_FAN1
Dx11
USB 3.0
A75M
ErP/EuP Ready
Designed in Taipei
RoHS
DDR3 2400+
USB 3.0
T: USB0
B: USB1
CIR1
1
SATA3 6Gb/s
SOCKET FM1
SATA_2
SATA_3
SATA_4
SATA_5
1
LPT1
ATX12V1
Gigabit LAN
HDMI 1.4a
PS2
Mouse
PS2
Keyboard
VGA1
USB 3.0
T: USB4
B: USB5
1
HDMI_SPDIF1
30
X Fast USB
