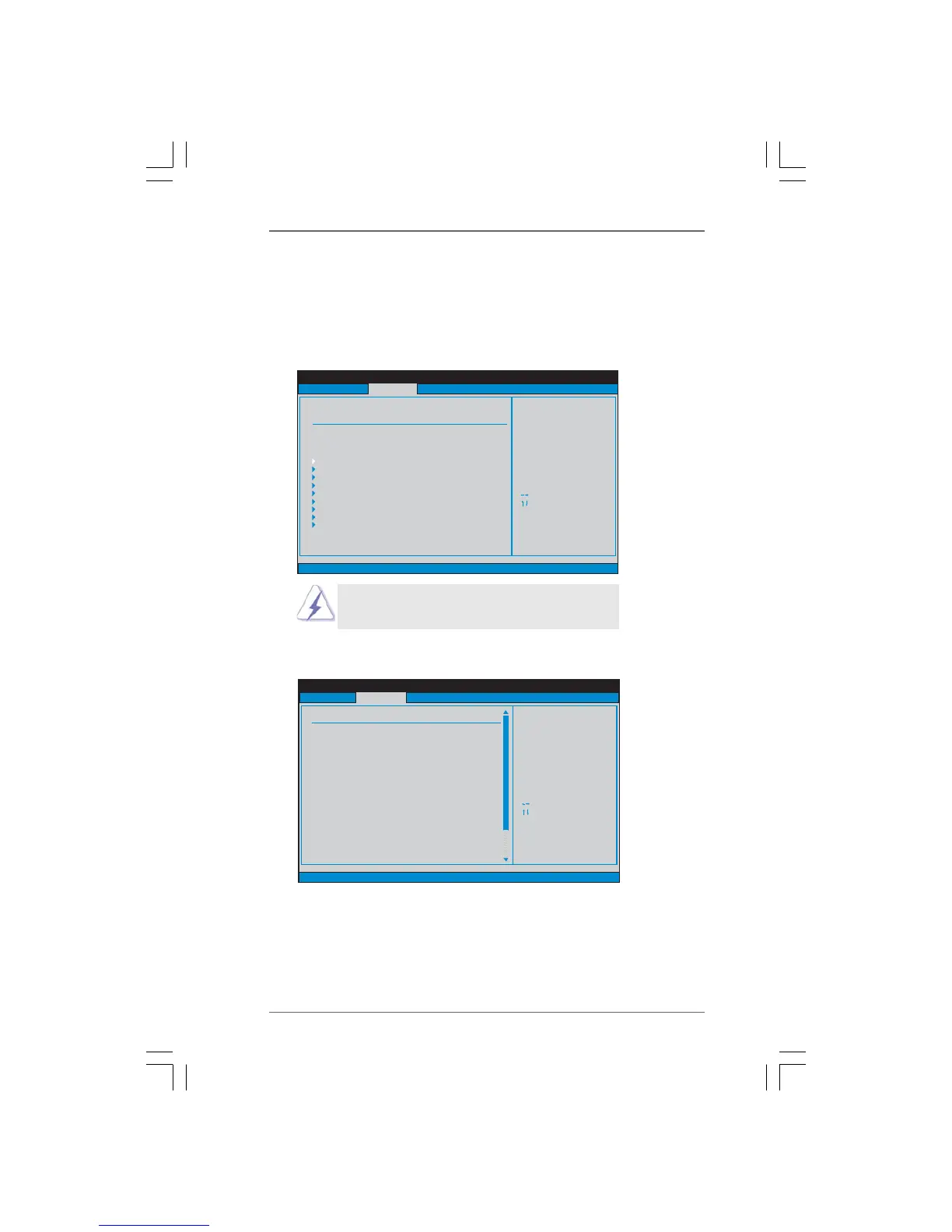

ASROCK A770DE - Advanced Screen; CPU Configuration

4040
4040
40
BIOS SETUP UTILITY
Main Smart
H/W Monitor Boot Security Exit
Select Screen
Select Item
Enter Go to Sub Screen
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2005, American Megatrends, Inc.
Advanced
Advanced Settings
WARNING : Setting wrong values in below sections
may cause system to malfunction.
CPU Configuration
Memory Configuration
ACPI Configuration
Chipset Configuration
IDE Configuration
PCIPnP Configuration
Floppy Configuration
SuperIO Configuration
USB Configuration
Options for CPU
3.43.4
3.43.4
3.4
Advanced ScreenAdvanced Screen
Advanced ScreenAdvanced Screen
Advanced Screen
In this section, you may set the configurations for the following items: CPU
Configuration, Memory Configuration, Chipset Configuration, ACPI Configuration, IDE
Configuration, PCIPnP Configuration, Floppy Configuration, SuperIO Configuration,
and USB Configuration.
Setting wrong values in this section may cause
the system to malfunction.
BIOS SETUP UTILITY
CPU Configuration
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
v02.54 (C) Copyright 1985-2003, American Megatrends, Inc.
Advanced
Select Screen
Select Item
+- Change Option
F1 General Help
F9 Load Defaults
F10 Save and Exit
ESC Exit
CPU Frequency (MHz)
PCIE Frequency (MHz)
Overclock Mode
[200]
[100]
[Auto]
Spread Spectrum
Enhanced Halt State
L3 Cache Allocation
Advanced Clock Calibration
Boot Failure Guard
Secure Virtual Machine
Cool'n'Quiet
Processor Maximum Frequency
North Bridge
Processor Maximum Voltage
Maximum Frequency
HT Bus Speed
HT Bus Width
[Auto]
[Auto]
x10.5 2100 MHZ
x9.0 18
1.2500 V
00 MHz
[Auto]
[Enabled]
[Auto]
[Enabled]
[Disabled]
[Auto]
[Disabled]
Multiplier/Voltage Change
[Auto]
Select the over clock
mode.
3.4.13.4.1
3.4.13.4.1
3.4.1
CPU ConfigurationCPU Configuration
CPU ConfigurationCPU Configuration
CPU Configuration
AM2 Boost
This option appears only when you adopt AM2 CPU. If you set this option to
[Enabled], you will enable ASRock AM2 Boost function, which will improve the
memory performance. The default value is [Disabled]. Please refer to cau-
tion 12 on page 9 for details.
