ASRock A780FullHD Motherboard

EnglishEnglish

English

Motherboard LayoutMotherboard Layout

Motherboard Layout

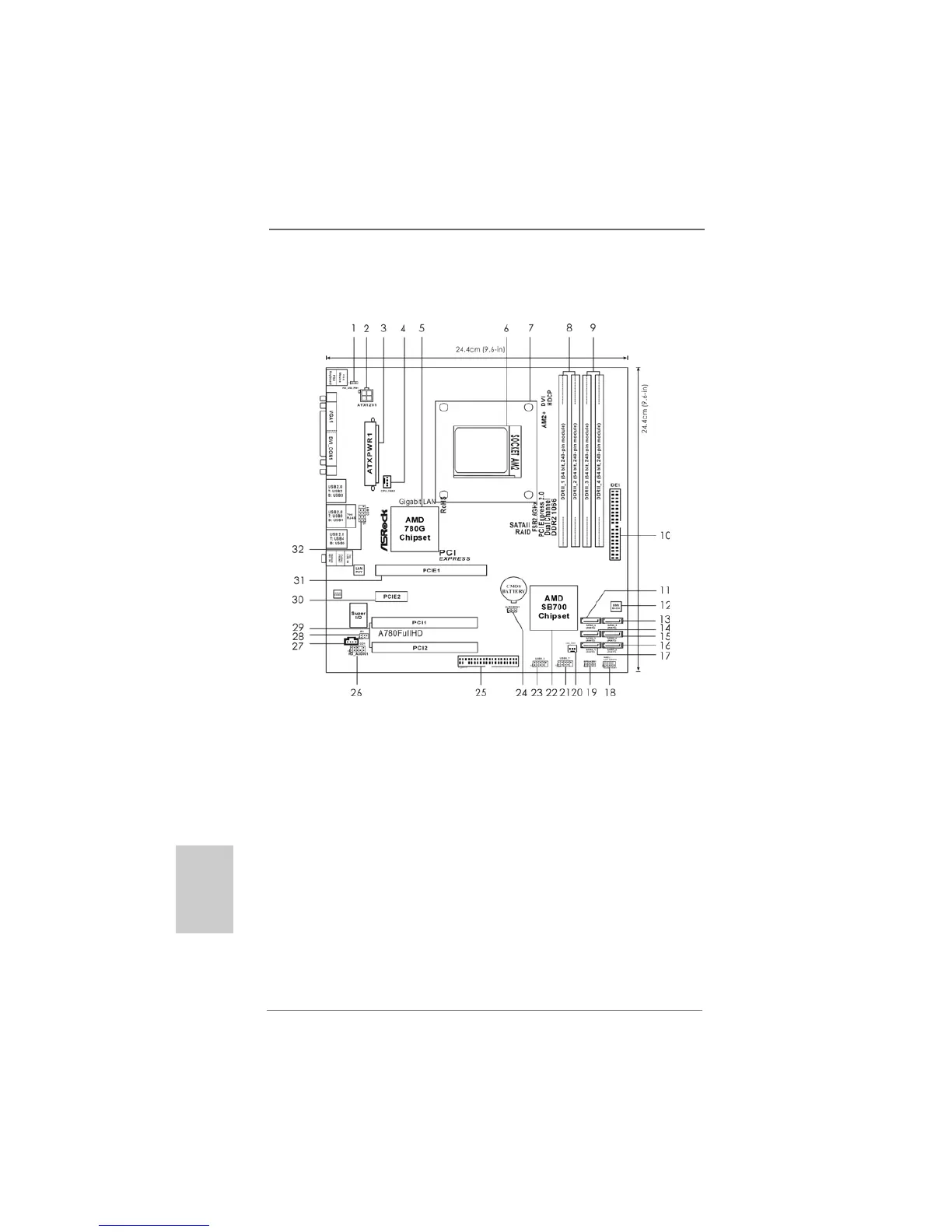

1 PS2_USB_PW1 Jumper 17 Primary SATAII Connector (SATAII_1 (PORT0))

2 ATX 12V Power Connector (ATX12V1) 18 System Panel Header (PANEL1)

3 ATX Power Connector (ATXPWR1) 19 Chassis Speaker Header (SPEAKER 1)

4 CPU Fan Connector (CPU_FAN1) 20 Chassis Fan Connector (CHA_FAN1)

5 Northbridge Controller 21 USB 2.0 Header (USB6_7, Blue)

6 AM2 940-Pin CPU Socket 22 Southbridge Controller

7 CPU Heatsink Retention Module 23 USB 2.0 Header (USB8_9, Blue)

8 2 x 240-pin DDR2 DIMM Slots 24 Clear CMOS Jumper (CLRCMOS1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 25 Floppy Connector (FLOPPY1)

9 2 x 240-pin DDR2 DIMM Slots 26 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 Internal Audio Connector: CD1 (Black)

10 Primary IDE Connector (IDE1, Blue) 28 Infrared Module Header (IR1)

11 Fifth SATAII Connector (SATAII_5 (PORT4)) 29 PCI Slots (PCI1- 2)

12 SPI Flash Memory (8Mb) 30 PCI Express 2.0 x1 Slot (PCIE2; Green)

13 Sixth SATAII Connector (SATAII_6 (PORT5)) 31 PCI Express 2.0 x16 Slot (PCIE1; Green)

14 Third SATAII Connector (SATAII_3 (PORT2)) 32 Serial Port Connector (COM1)

15 Fourth SATAII Connector (SATAII_4 (PORT3))

16 Secondary SATAII Connector (SATAII_2 (PORT1))
