ASRock ALiveXFire-eSATA2 Motherboard

EnglishEnglish

English

Motherboard LMotherboard L

Motherboard L

ayoutayout

ayout

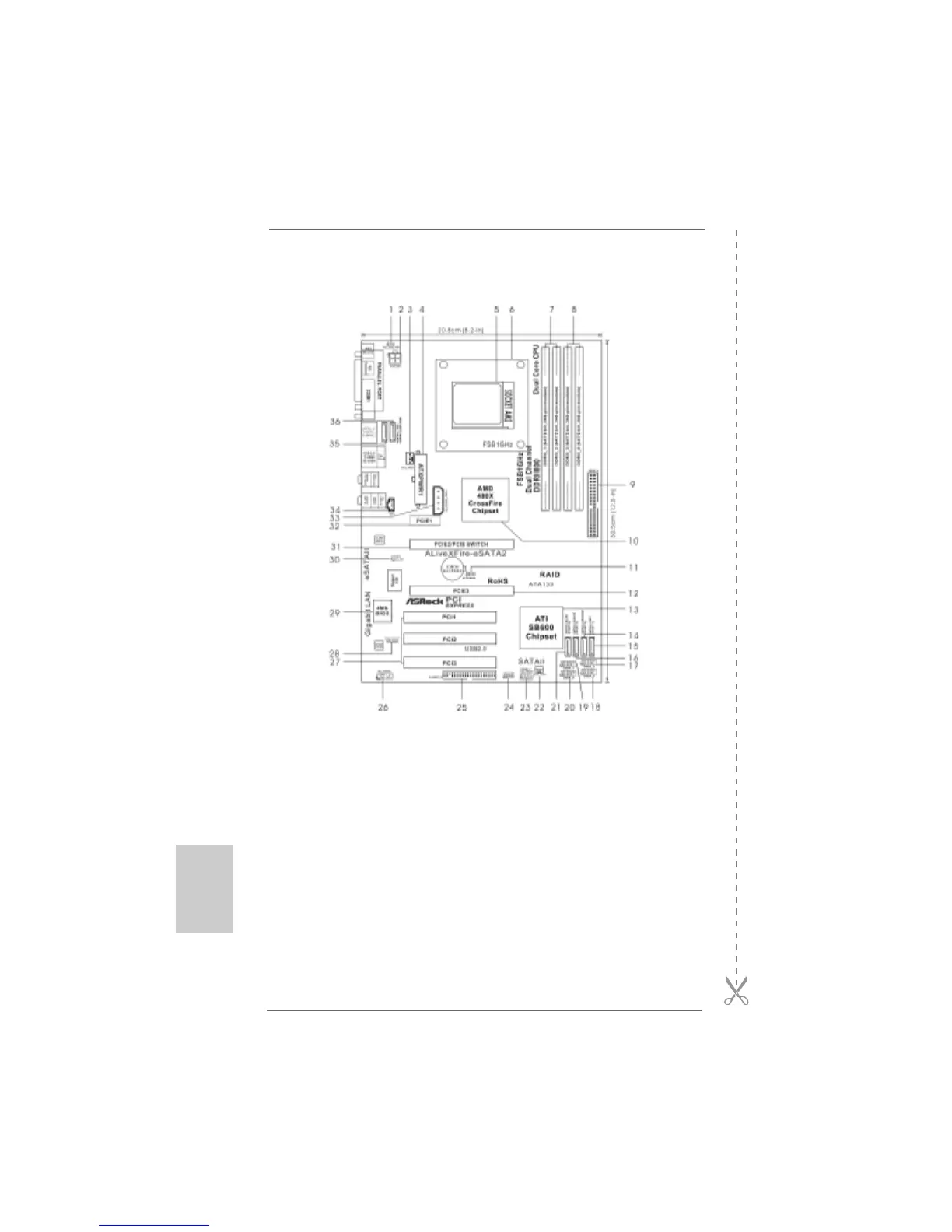

1 PS2_USB_PW1 Jumper 19 USB 2.0 Header (USB6_7, Blue)

2 ATX 12V Connector (ATX12V1) 20 USB 2.0 Header (USB8_9, Blue)

3 CPU Fan Connector (CPU_FAN1) 21 Serial ATAII Connector

4 ATX Power Connector (ATXPWR1) (SATAII_BLUE (PORT 4))

5 AM2 940-Pin CPU Socket 22 Chassis Fan Connector (CHA_FAN1)

6 CPU Heatsink Retention Module 23 System Panel Header (PANEL1)

7 2 x 240-pin DDR2 DIMM Slots 24 Chassis Speaker Header (SPEAKER 1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 25 Floppy Connector (FLOPPY1)

8 2 x 240-pin DDR2 DIMM Slots 26 Front Panel Audio Header (HD_AUDIO1)

(Dual Channel B: DDRII_3, DDRII_4; Orange) 27 PCI Slots (PCI1- 3)

9 IDE1 Connector (IDE1, Blue) 28 HDMI_SPDIF Header (HDMI_SPDIF1)

10 North Bridge Controller 29 BIOS LPC Chip

11 Clear CMOS Jumper (CLRCMOS1) 30 Infrared Module Connector (IR1)

12 PCI Express x16 Slot (PCIE3) 31 PCIE Express Slot (PCIE2/PCIE SWITCH)

13 South Bridge Controller 32 PCI Express x1 Slot (PCIE1)

14 Serial ATAII Connector (SATAII_ORANGE (PORT 2))33 SLI / XFIRE Power Connector

15 Serial ATAII Connector (SATAII_RED (PORT 1)) 34 Internal Audio Connector: CD1 (Black)

16 Serial ATAII Connector (SATAII_BLACK (PORT 3)) 35 eSATAII Connector (eSATAII_TOP)

17 USB 2.0 Header (USB2_3, Blue) 36 eSATAII Connector (eSATAII_BOTTOM)

18 USB 2.0 Header (USB4_5, Blue)
