2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors2.9 Onboard Headers and Connectors
2.9 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
•

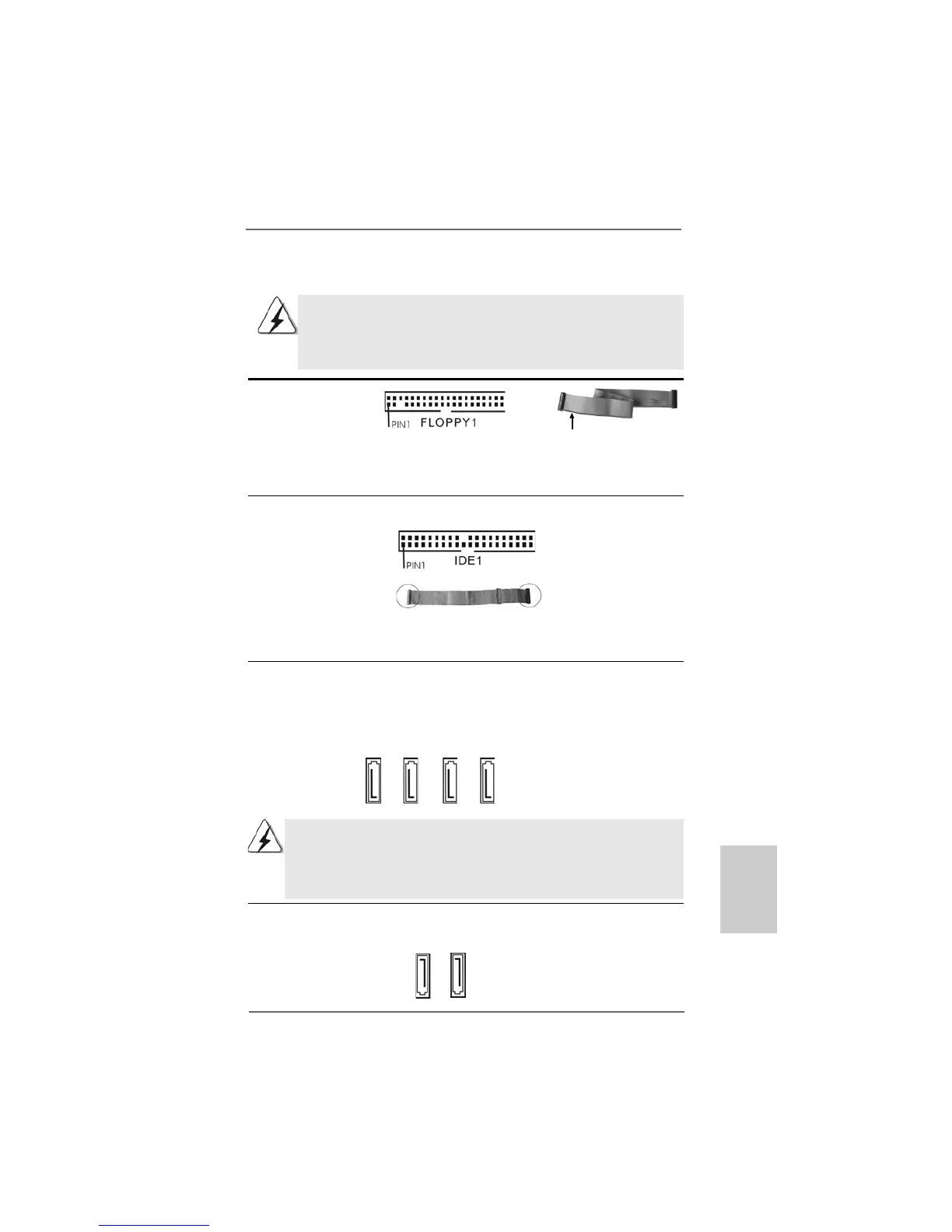

Floppy Connector
(33-pin FLOPPY1)
(see p.2 No. 25)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.2 No. 9)
Note: Please refer to the instruction of your IDE device vendor for the details.
connect the black end
to the IDE devices
connect the blue end
to the motherboard
80-conductor ATA 66/100/133 cable
SATAII_RED (PORT 1) and SATAII_ORANGE (PORT 2) connectors can be
used for internal storage devices or be connected to eSATAII_BOTTOM
and eSATAII_TOP connectors with corresponding color to support eSATAII
devices. Please read “eSATAII Interface Introduction” on page 27 for
details about eSATAII and eSATAII installation procedures.
eSATAII Connectors These two eSATAII
(eSATAII_TOP: see p.2, No. 35) connectors support SATA
(eSATAII_BOTTOM: see p.2, No. 36) data cables for external
SATAII function. The current
eSATAII interface allows up to
3.0 Gb/s data transfer rate.
Serial ATAII Connectors These four Serial ATAII
(SATAII_BLUE (PORT 4): (SATAII) connectors support
see p.2, No. 21) SATA data cables for internal
(SATAII_BLACK (PORT 3): storage devices. The current
see p.2, No. 16) SATAII interface allows up to
(SATAII_RED (PORT 1): 3.0 Gb/s data transfer rate.
see p.2, No. 15)
(SATAII_ORANGE (PORT 2):
see p.2, No. 14)
the red-striped side to Pin1
eSATAII_TOP
eSATAII_BOTTOM
SATAII_RED (PORT 1) SATAII_ORANGE (PORT 2) SATAII_BLACK (PORT 3) SATAII_BLUE (PORT 4)
