ASRock ALiveXFire-eSATA2 Motherboard
EnglishEnglish
EnglishEnglish
English

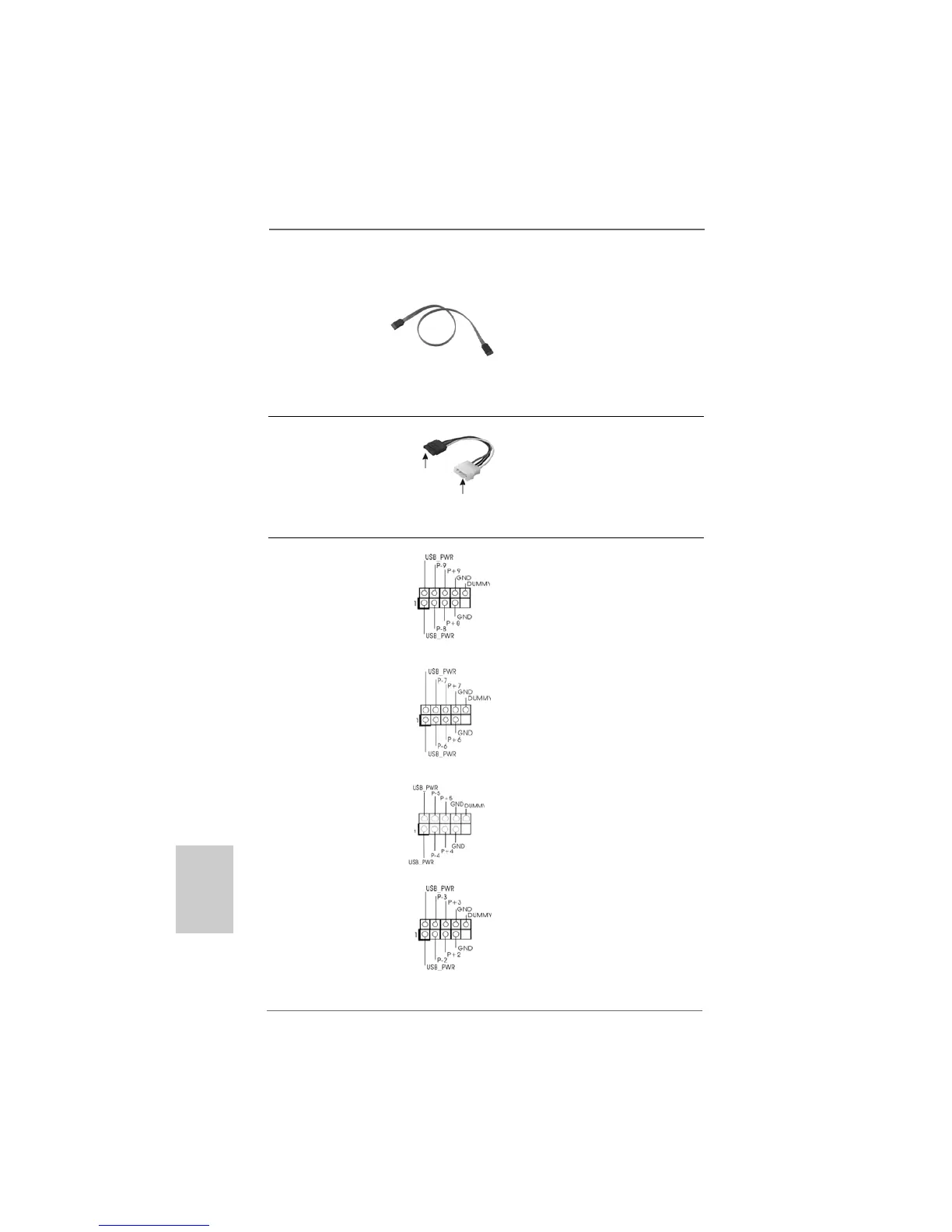

Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on the motherboard.
You can also use the SATA data
cable to connect SATAII connec-
tors and eSATAII connectors
with corresponding color.
Serial ATA (SATA) Please connect the black end of
Power Cable SATA power cable to the power
(Optional) connector on each drive. Then
connect the white end of SATA
power cable to the power
connector of the power supply.
USB 2.0 Headers Besides two default USB 2.0
(9-pin USB8_9) ports on the I/O panel, there are
(see p.2 No. 20) four USB 2.0 headers on this
motherboard. Each USB 2.0
header cansupport two USB
2.0 ports.
(9-pin USB6_7)
(see p.2 No. 19)
(9-pin USB4_5)
(see p.2 No. 18)
(9-pin USB2_3)
(see p.2 No. 17)
connect to the
power supply
connect to the SATA
HDD power connector
