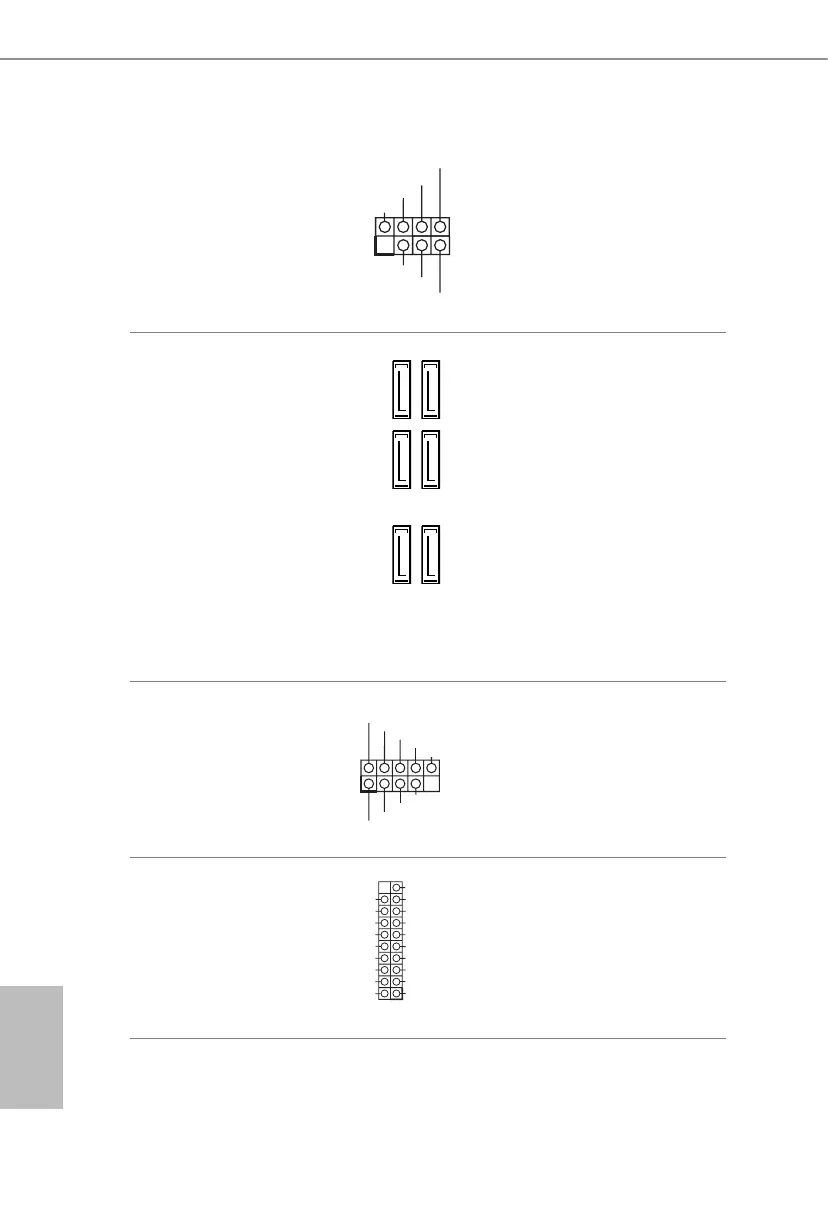

Power LED and Speaker
Header
(7-pin SPK_PLED1)
(see p.1, No. 15)
Please connect the
chassis power LED and
the chassis speaker to this
header.
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 8)
(SATA3_1:
see p.1, No. 10)
(SATA3_2:
see p.1, No. 9)
(SATA3_3:
see p.1, No. 11)
(SATA3_4:
see p.1, No. 15)
(SATA3_5:
see p.1, No. 14)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB_9_10)
(see p.1, No. 17)
(9-pin USB_11_12)
(see p.1, No. 16)
ere are two headers
on this motherboard.
Each USB 2.0 header can
support two ports.
USB 3.0 Headers
(19-pin USB_5_6)
(see p.1, No. 6)
Besides six USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
3.0 header can support
two ports.
