3
English
B150M Pro4/D3

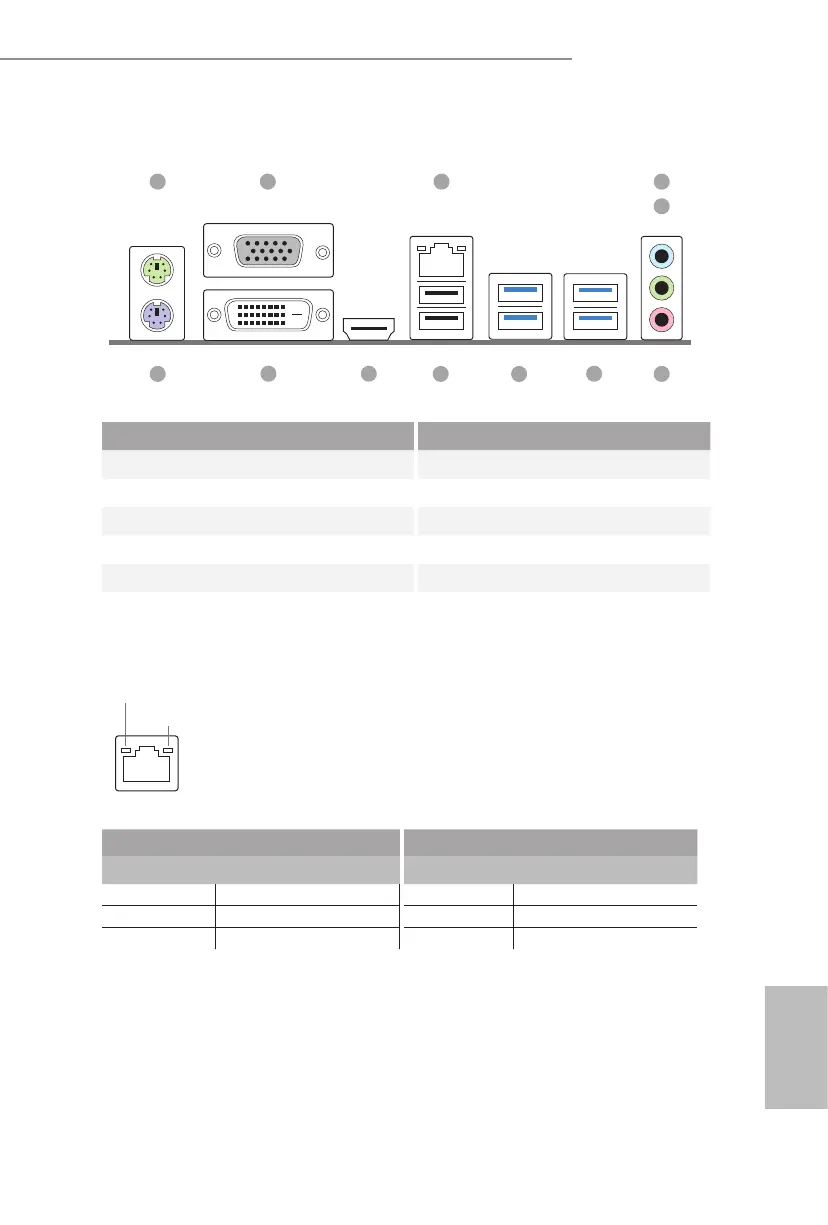

I/O Panel
No. Description No. Description
1 PS/2 Mouse Port (Green) 7 USB 3.0 Ports (USB_56)
2 D-Sub Port 8 USB 3.0 Ports (USB_34)
3 LAN RJ-45 Port* 9 USB 2.0 Ports (USB_12)
4 Line In (Light Blue)** 10 HDMI Port
5 Front Speaker (Lime)** 11 DVI-D Port
6 Microphone (Pink)** 12 PS/2 Keyboard Port (Purple)
6
7
8
10
3
5
4
11
12
1
9
2
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the ASROCK B150M Pro4/D3 and is the answer not in the manual?

ASROCK B150M Pro4/D3 Specifications

General IconGeneral
Audio chipRealtek ALC892
Certification- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)
Component forPC
Motherboard chipsetIntel® B150
Audio output channels7.1 channels
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64, Windows 7, Windows 7 x64, Windows 8.1 x64
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Non-ECCYes
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory64 GB
Supported memory clock speeds1066, 1333, 1600, 1866 MHz
BIOS typeUEFI AMI
ACPI version5.0
BIOS memory size128 Mbit
System Management BIOS (SMBIOS) version2.7
PS/2 ports quantity2
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Wi-FiNo
LAN controllerIntel I219V
Ethernet interface typeFast Ethernet, Gigabit Ethernet
Number of SATA III connectors6
Parallel processing technology supportCrossFireX, Quad-GPU CrossFireX
Supported storage drive typesHDD & SSD
Supported storage drive interfacesSATA III
Weight and Dimensions IconWeight and Dimensions
Width244 mm
