ASROCK B360M Pro4 - Page 23

English
21
B360M Pro4

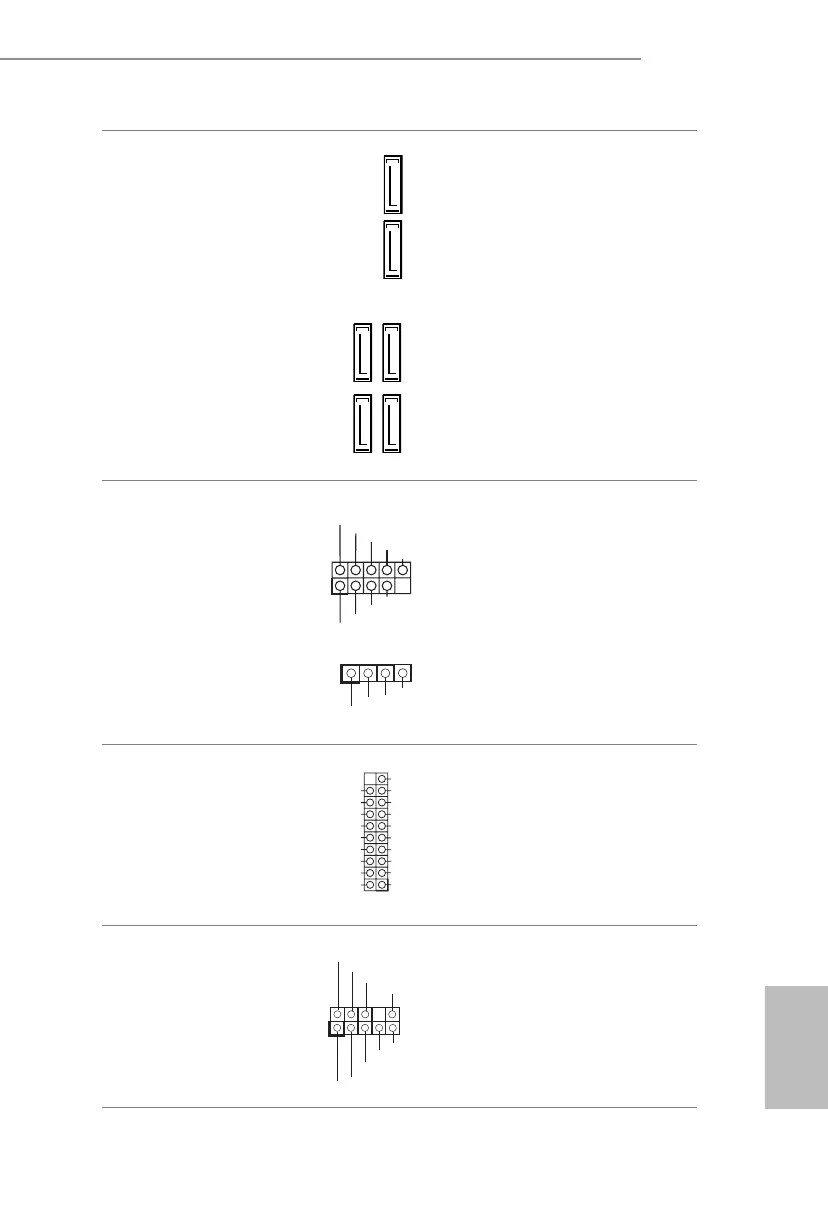

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 8)
(SATA3_1:
see p.1, No. 9)
(SATA3_2:
see p.1, No. 11)
(SATA3_3:
see p.1, No. 12)
(SATA3_4:
see p.1, No. 14)
(SATA3_5:
see p.1, No. 13)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
If M2_2 is occupied by a
SATA-type M.2 device,
SATA3_1 will be disabled.
USB 2.0 Headers
(9-pin USB3_4)
(see p.1, No. 18)
(4-pin USB5)
(see p.1, No. 19)
ere are two headers on
this motherboard.
USB 3.1 Gen1 Header
(19-pin USB3_5_6)
(see p.1, No. 7)
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 22)
is header is for
connecting audio devices
to the front audio panel.
1
IntA_ PB_D +
Dummy
IntA_ PB_D -
GND
IntA_ PB_S STX +
GND
IntA_ PB_S STX -
IntA_ PB_S SRX +
IntA_ PB_S SRX -
VbusVbus
Vbus
IntA_ PA_S SRX -
IntA_ PA_S SRX +
GND
IntA_ PA_S STX -
IntA_ PA_S STX +
GND
IntA_ PA_D -
IntA_ PA_D +
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
SATA3_4 SATA3_5
SATA3_2 SATA3_3
SATA3_1
SATA3_0
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
1
USB_PWR
P-
P+
GND
