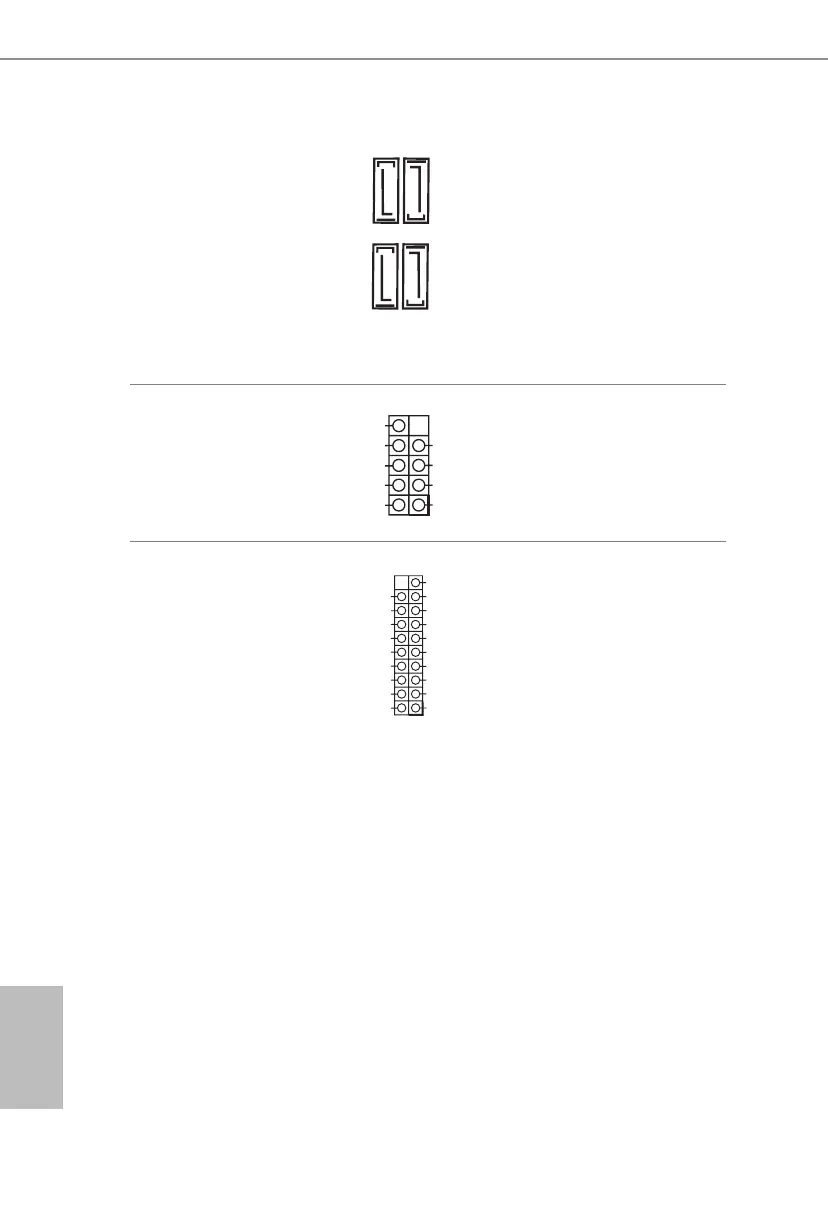

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 8)
(SATA3_1:
see p.1, No. 7)
(SATA3_2:
see p.1, No. 10)
(SATA3_3:
see p.1, No. 9)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Header
(9-pin USB_1_2)
(see p.1, No. 12)
DUMMY
GNDGND
+B
-B
+A
-A
USB_PWR
USB_PWR
1
ere is one USB2.0
header on this
motherboard. is USB
2.0 header can support
two ports.
USB 3.1 Gen1 Header
(19-pin USB3_5_6)
(see p.1, No. 6)
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
ere is one header on
this motherboard. is
USB 3.1 Gen1 header can
support two ports.
SA TA3_ 3
SA TA3_ 2
SA TA3_ 1
SA TA3_ 0
