ASROCK B365M-ITX/ac User Manual

24
English

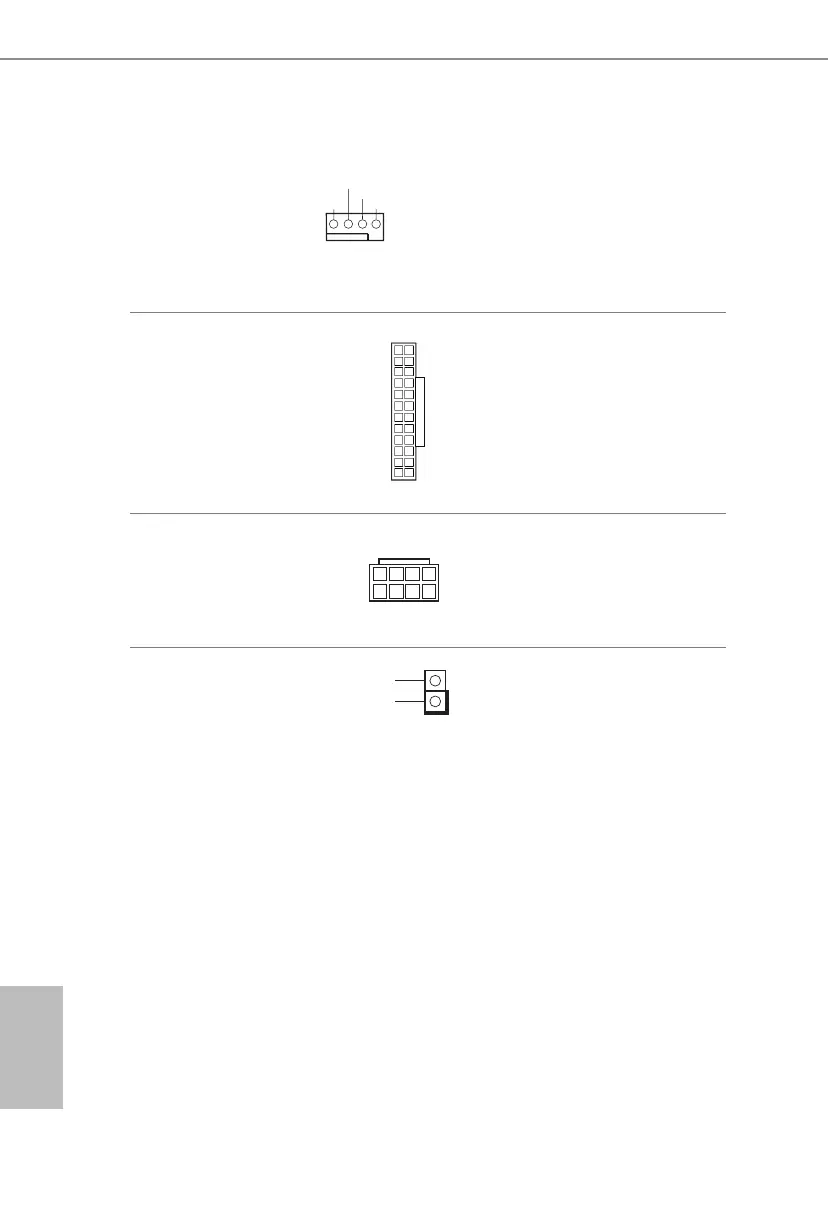

CPU Fan Connector
(4-pin CPU_FAN1)
(see p.1, No. 3)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
is motherboard pro-
vides a 4-Pin CPU fan
(Quiet Fan) connector.
If you plan to connect a
3-Pin CPU fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATXPWR1)
(see p.1, No. 5)
12
1
24
13
is motherboard pro-
vides a 24-pin ATX power
connector.
ATX 12V Power
Connector
(4-pin ATX12V1)
(see p.1, No. 1)
5
1
8
4
Please connect an ATX
12V power supply to this
connector.
Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 15)
1
Signal
GND
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
