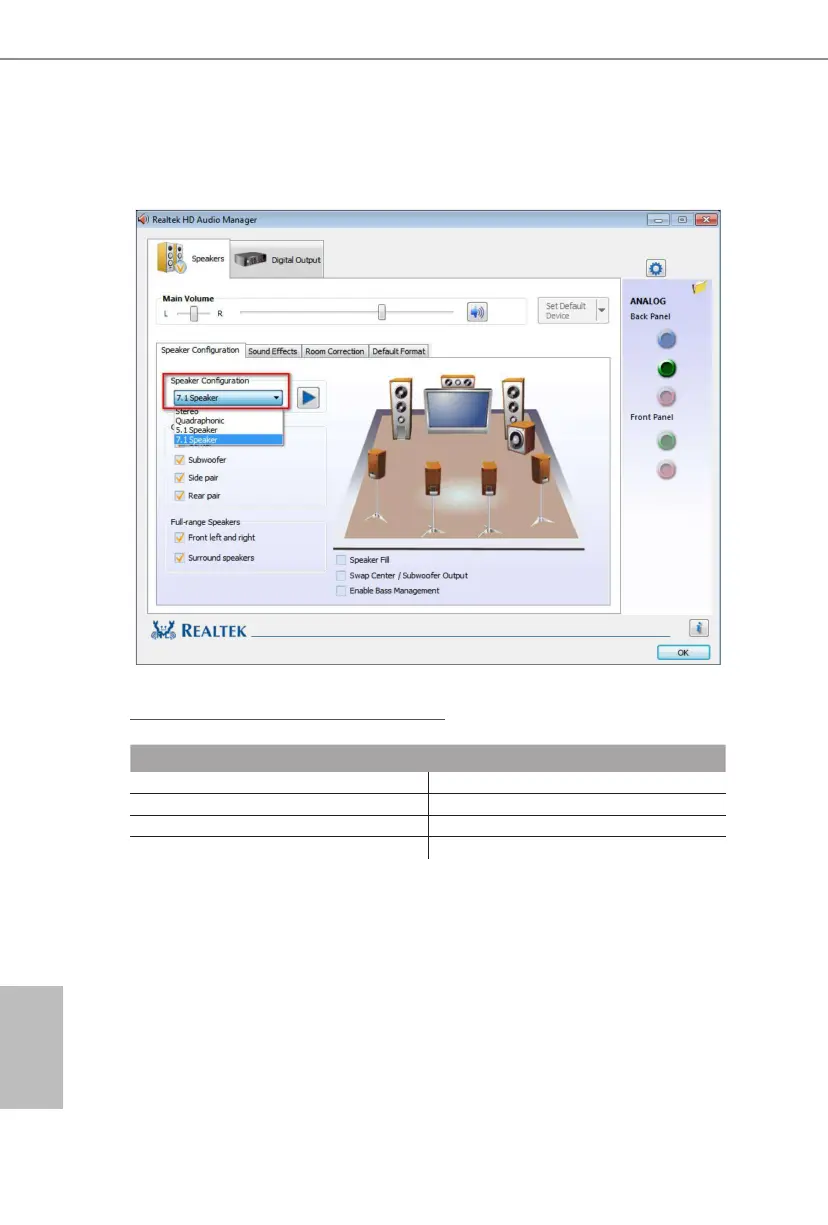

*** To congure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-
channel audio feature through the audio driver.
Please set Speaker Conguration to “7.1 Speaker”in the Realtek HD Audio Manager.
Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out

ASROCK B365M Pro4-F Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Certification	FCC, CE, ErP/EuP ready
Component for	PC
Motherboard chipset	Intel B365
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	1024 Mbit
System Management BIOS (SMBIOS) version	2.7
HDCP	No
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
Wi-Fi	-
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	229 mm
Width	244 mm
