ASROCK B365M Pro4-F User Manual

English
3
B365M Pro4-F

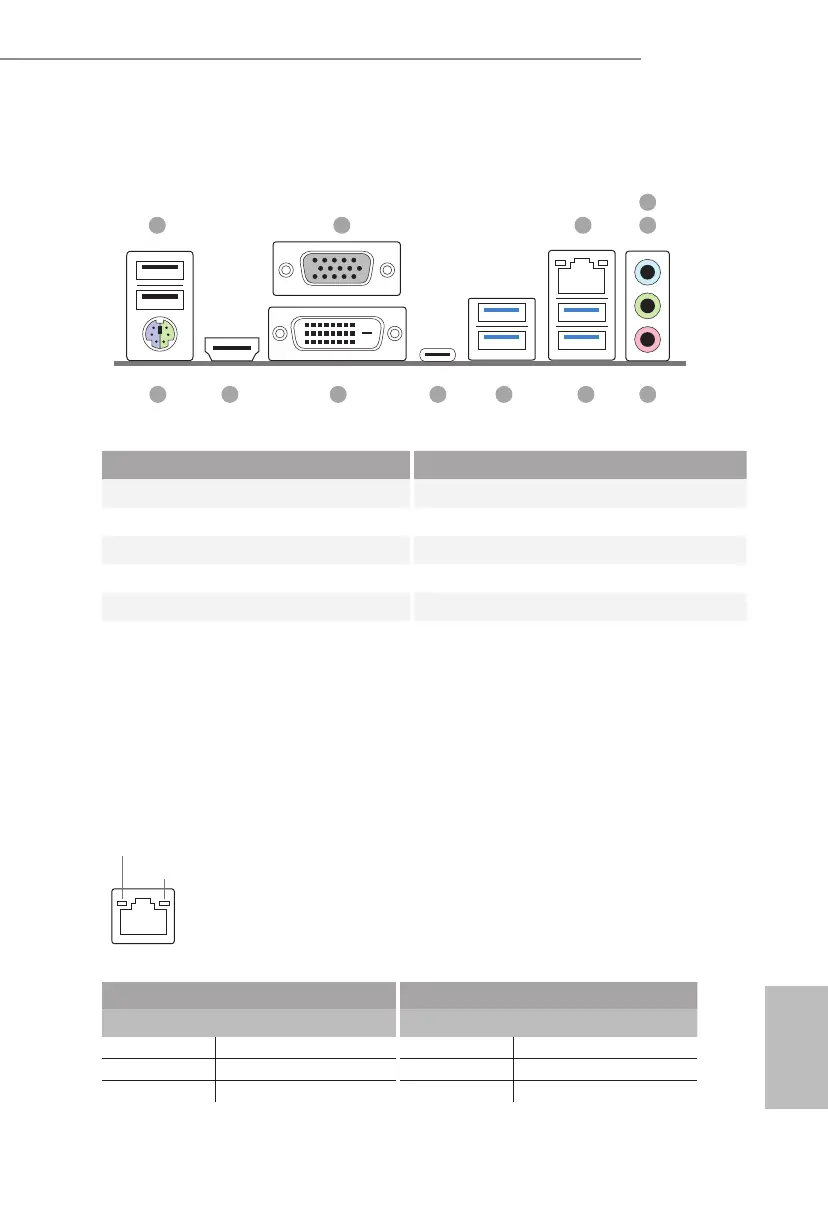

I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12)* 7 USB 3.2 Gen1 Ports (USB3_3_4)
2 D-Sub Port 8 USB 3.2 Gen1 Ports (USB3_1_2)
3 LAN RJ-45 Port** 9 USB 3.2 Gen1 Type-C Port (USB3_TC_1)
4 Line In (Light Blue)*** 10 DVI-D Port
5 Front Speaker (Lime)*** 11 HDMI Port
6 Microphone (Pink)*** 12 PS/2 Mouse/Keyboard Port
** ere are two LEDs on the LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
12 6710
11
5
4
1 3
8
2
9
* Please note that the USB1 consumes auxiliary power (+5VSB) while the other USB ports consume DUAL Power
(+5VDUAL). e USB1 is optimal for connecting the USB Type speaker and headset.

ASROCK B365M Pro4-F Specifications

General

Processor socket	LGA 1151 (Socket H4)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Certification	FCC, CE, ErP/EuP ready
Component for	PC
Motherboard chipset	Intel B365
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	2133, 2400, 2666 MHz
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	1024 Mbit
System Management BIOS (SMBIOS) version	2.7
HDCP	No
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
Wi-Fi	-
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots	2
Number of SATA III connectors	6
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Supported storage drive interfaces	SATA III

Weight and Dimensions

Depth	229 mm
Width	244 mm
