ASROCK B460 Pro4 User Manual

9
English
B460 Pro4

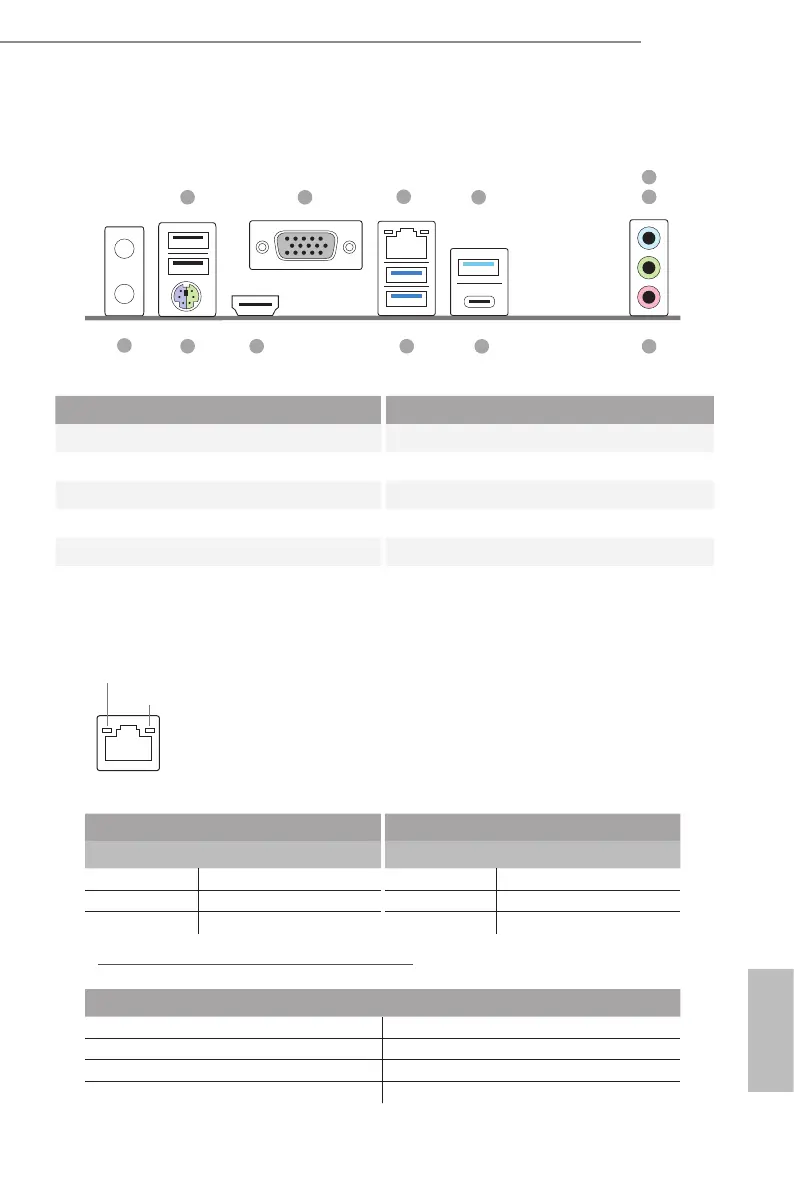

1.4 I/O Panel
1
11
9
810
3
4
7
6
5
2
12
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
** Function of the Audio Ports in 7.1-channel Conguration:
Port Function
Light Blue (Rear panel) Rear Speaker Out
Lime (Rear panel) Front Speaker Out
Pink (Rear panel) Central /Subwoofer Speaker Out
Lime (Front panel) Side Speaker Out
ACT/LINK LED
SPEED LED
LAN Port
No. Description No. Description
1 USB 2.0 Ports (USB1_2) 7 Microphone (Pink)**
2 D-Sub Port 8 USB 3.2 Gen1 Type-C Port (USB3_TC_1)
3 LAN RJ-45 Port* 9 USB 3.2 Gen1 Ports (USB3_1_2)
4 USB 3.2 Gen1 Type-A Port (USB3_TA_1) 10 HDMI Port
5 Line In (Light Blue)** 11 PS/2 Mouse/Keyboard Port
6 Front Speaker (Lime)** 12 Antenna Bracket

ASROCK B460 Pro4 Specifications

General

Audio chip	Realtek ALC1200
Component for	PC
Motherboard chipset	Intel B460
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Cables included	SATA
Drivers included	Yes
HDMI version	1.4
PS/2 ports quantity	1
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
Number of SATA III connectors	6
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	SATA III
OpenGL version	4.5
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
Parallel processing technology support	CrossFireX, Quad-GPU CrossFireX
Wi-Fi	No
LAN controller	Intel® I219-V
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2666, 2800, 2933 MHz
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium

Weight and Dimensions

Depth	224 mm
Width	305 mm
