ASROCK B460 Pro4 - Page 28

22
English

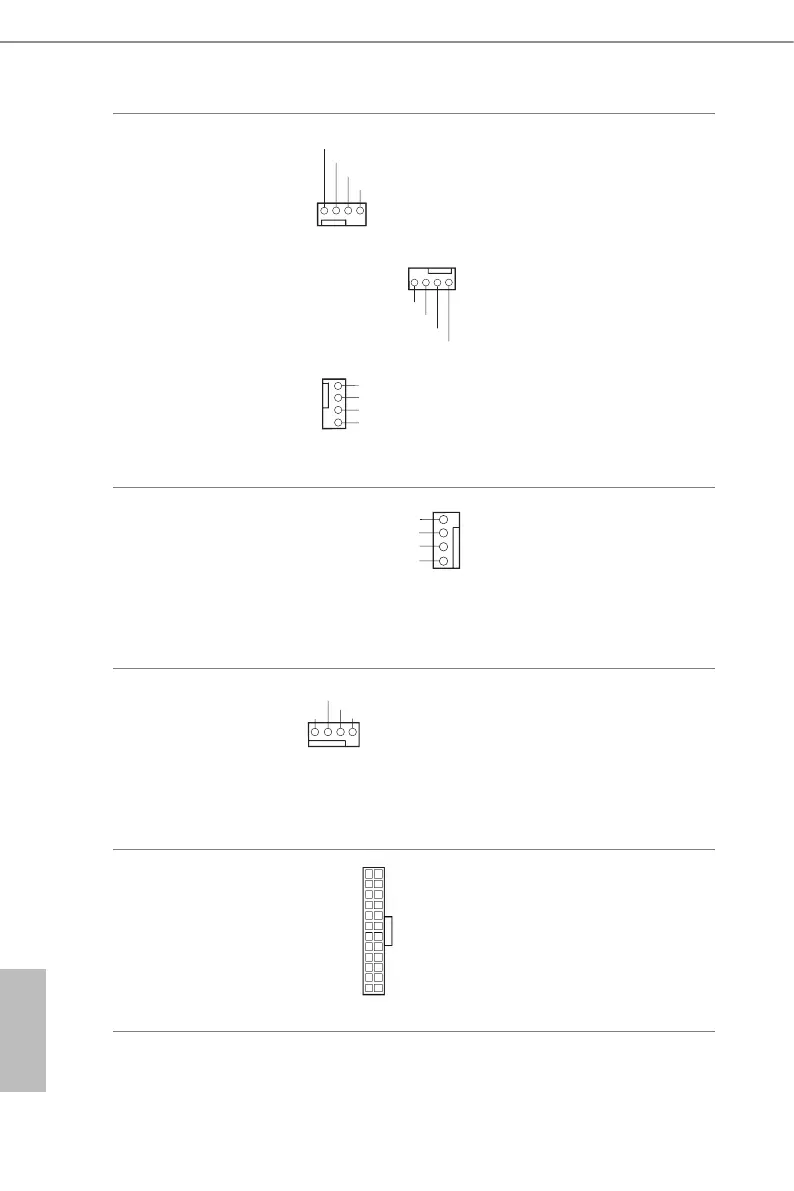

Chassis/Water Pump Fan
Connectors
(4-pin CHA_FAN1/WP)
(see p.7, No. 33)
(4-pin CHA_FAN2/WP)
(see p.7, No. 23)
(4-pin CHA_FAN3/WP)
(see p.7, No. 24)
(4-pin CHA_FAN4/WP)
(see p.7, No. 16)
(4-pin CHA_FAN5/WP)
(see p.7, No. 10)
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
4 3 2 1
GND
FAN_VOLTAGE
CHA_FAN_SPEED
FAN_SPEED_CONTROL
1
2
3
4
is motherboard provides
ve 4-Pin water cooling
chassis fan connectors. If
you plan to connect a 3-Pin
chassis water cooler fan,
please connect it to Pin 1-3.
CPU Fan Connector
(4-pin CPU_FAN1)
(see p.7, No. 2)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
4
3
2
1
is motherboard provides
a 4-Pin CPU fan (Quiet
Fan) connector. If you plan
to connect a 3-Pin CPU
fan, please connect it to Pin
1-3.
CPU/Water Pump Fan
Connector
(4-pin CPU_FAN2/WP)
(see p.7, No. 5)
GND
FAN_VOLTAGE
CPU_FAN_SPEED
FAN_SPEED_CONTROL
1 2 3 4
is motherboard provides
a 4-Pin water cooling CPU
fan connector. If you plan
to connect a 3-Pin CPU
water cooler fan, please
connect it to Pin 1-3.
ATX Power Connector
(24-pin ATX PWR1)
(see p.7, No. 8)
is motherboard provides
a 24-pin ATX power con-
nector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
12
1
24
13
