2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)

e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and

versatile card edge connector that aims to replace mPCIe and mSATA.

e Hyper M.2 Socket (M2_1) supports M Key type 2280 M.2 PCI Express module up to

Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and

Picasso).

Installing the M.2_SSD (NGFF) Module

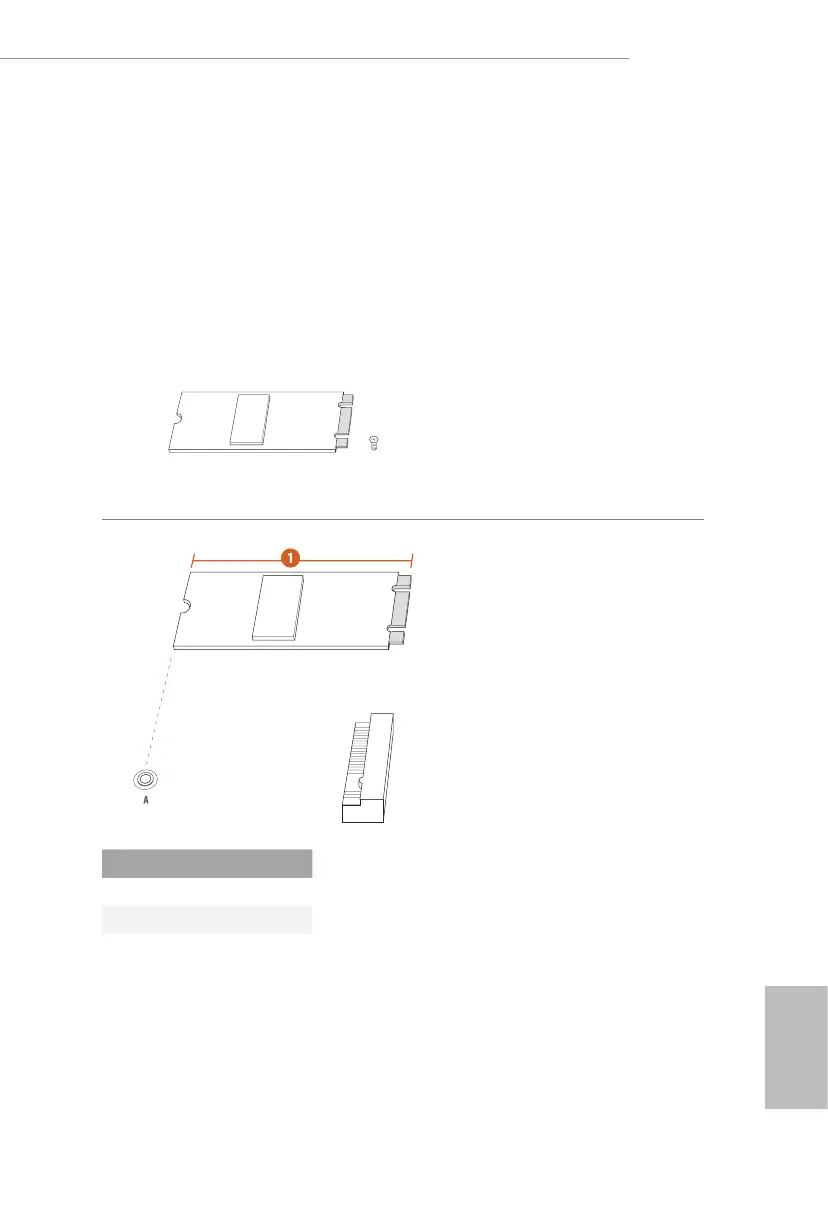

Step 1

Prepare a M.2_SSD (NGFF) module

and the screw.

Step 2

Depending on the PCB type and

length of your M.2_SSD (NGFF)

module, nd the corresponding nut

location to be used.

No. 1

Nut Location A

PCB Length 8cm

Module Type Type2280
