3.4 ASRock Polychrome SYNC
ASRock Polychrome SYNC is a lighting control utility specically designed for unique indi-
viduals with sophisticated tastes to build their own stylish colorful lighting system. Simply by
connecting the LED strip, you can customize various lighting schemes and patterns, including
Static, Breathing, Strobe, Cycling, Music, Wave and more.

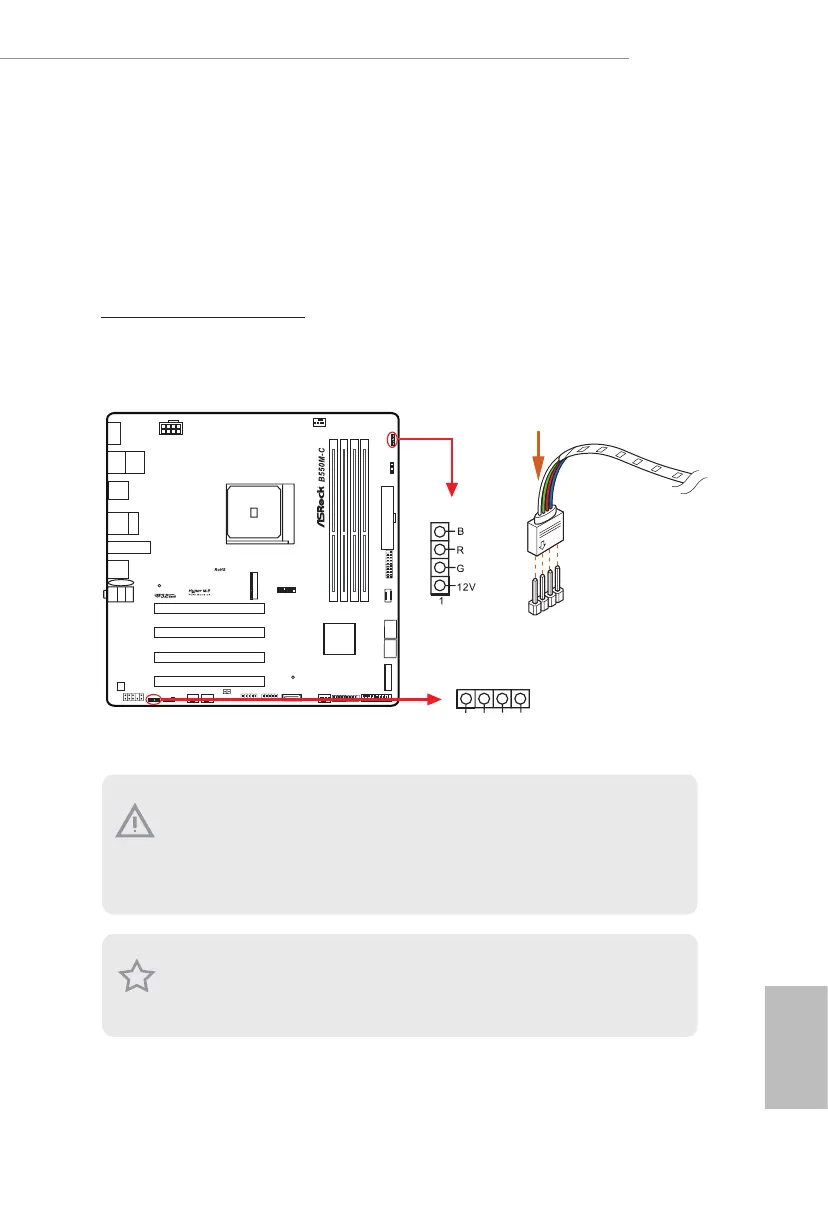

Connecting the LED Strip
Connect your RGB LED strips to the RGB LED Headers ( RGB_LED1, RGB_LED2) on the
motherboard.
1
2
V
G
R
B
1
1. Never install the RGB LED cable in the wrong orientation; otherwise, the cable
may be damaged.
2. Before installing or removing your RGB LED cable, please power o your system
and unplug the power cord from the power supply. Failure to do so may cause dam-
ages to motherboard components.
1. Please note that the RGB LED strips do not come with the package.
2. e RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a
maximum power rating of 3A (12V) and length within 2 meters.
RGB_LED1
RGB_LED2
+12V G R B
1

ASROCK B550M-C R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD B550
Socket	AM4
Max Memory	128GB
Memory Speed	DDR4 4733+(OC)
PCIe x16 Slots	1
USB 3.2 Gen1 (Rear)	4
USB 2.0 (Rear)	2
USB 3.2 Gen1 (Front)	2
USB 2.0 (Front)	2
RAID Support	RAID 0, 1, 10
Memory Slots	4
PCIe x1 Slots	1
Storage Interface	6 x SATA3
M.2 Slots	1
LAN	Realtek RTL8111H
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
