ASROCK B550M-C R2.0 User Manual

English
48

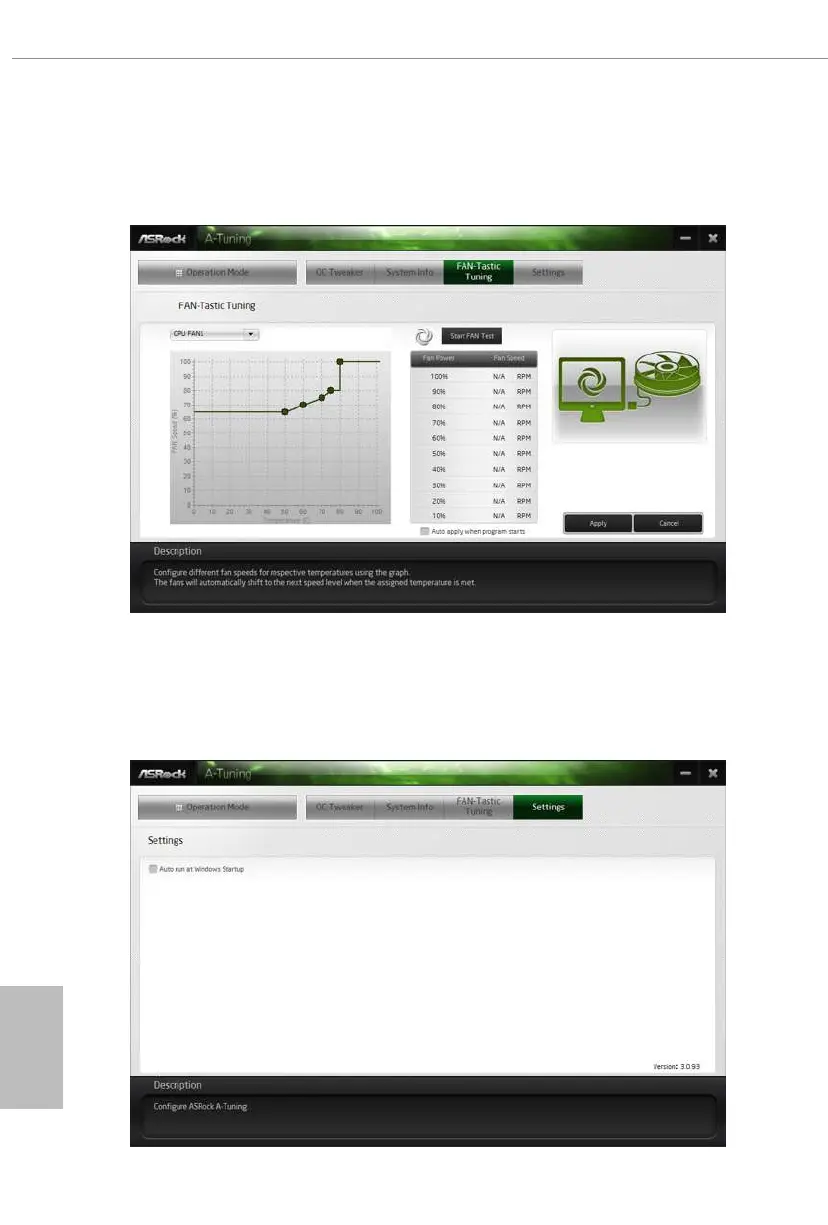

FAN-Tastic Tuning
Congure up to ve dierent fan speeds using the graph. e fans will automatically shi
to the next speed level when the assigned temperature is met.
Settings
Congure ASRock ASRock Motherboard Utility (A-Tuning). Click to select "Auto
run at Windows Startup" if you want ASRock Motherboard Utility (A-Tuning) to
be launched when you start up the Windows operating system.

ASROCK B550M-C R2.0 Specifications

General

Form Factor	Micro ATX
Chipset	AMD B550
Socket	AM4
Max Memory	128GB
Memory Speed	DDR4 4733+(OC)
PCIe x16 Slots	1
USB 3.2 Gen1 (Rear)	4
USB 2.0 (Rear)	2
USB 3.2 Gen1 (Front)	2
USB 2.0 (Front)	2
RAID Support	RAID 0, 1, 10
Memory Slots	4
PCIe x1 Slots	1
Storage Interface	6 x SATA3
M.2 Slots	1
LAN	Realtek RTL8111H
Audio	7.1 CH HD Audio (Realtek ALC897 Audio Codec)
