ASROCK B560 PRO4 - Page 31

23
English
B560 Pro4

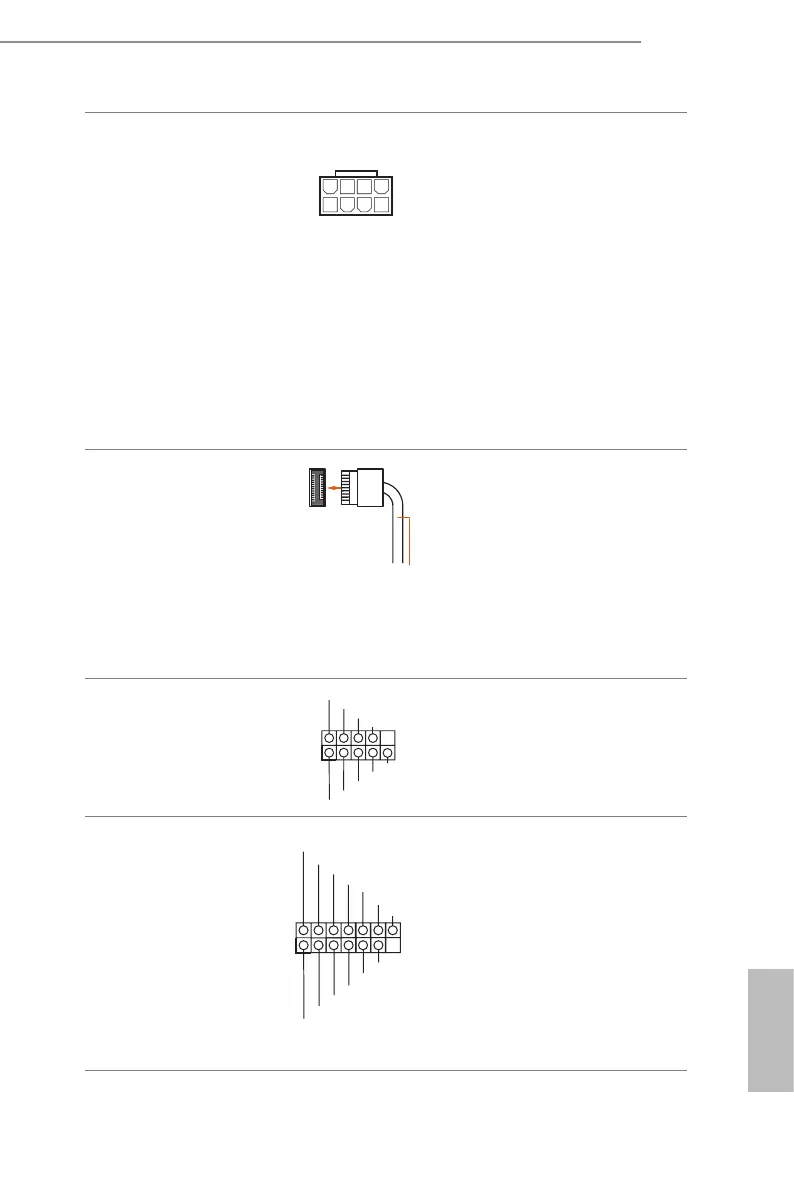

ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.7, No. 1)
is motherboard provides
an 8-pin ATX 12V power
connector. To use a 4-pin
ATX power supply, please
plug it along Pin 1 and Pin
5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics card.
Do not plug the PCIe pow-
er cable to this connector.
Front Panel Type C USB
3.2 Gen1 Header
(20-pin USB31_TC_1)
(see p.7, No. 10)
USB Type-C Cable
ere is one Front
Panel Type C USB 3.2
Gen1 Header on this
motherboard. is header
is used for connecting a
USB 3.2 Gen1 module for
additional USB 3.2 Gen1
ports.
Serial Port Header
(9-pin COM1)
(see p.7, No. 30)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
is COM1 header
supports a serial port
module.
SPI TPM Header
(13-pin SPI_TPM_J1)
(see p.7, No. 19)
1
SPI_DQ3
+3.3V
SPI_DQ2
SPI_CS0
TPM_Present
CLK
SPI_MISO
SPI_MOSI
GND
SPI_TPM_CS#
RST#
RSMRST#
TPM_PIRQ
is connector supports SPI
Trusted Platform Module (TPM)
system, which can securely
store keys, digital certicates,
passwords, and data. A TPM
system also helps enhance
network security, protects digital
identities, and ensures platform
integrity.
4
1
8 5
