ASROCK B560 PRO4 - 2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)

28
English
No. 1 2 3
Nut Location A B C
PCB Length 4.2cm 6cm 8cm
Module Type Type2242 Type 2260 Type2280
2.9 M.2_SSD (NGFF) Module Installation Guide (M2_1)
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Hyper M.2
Socket (M2_1) supports M Key type 2242/2260/2280 M.2 PCI Express module up to
Gen4x4 (64 Gb/s) (Only supported with 11
th
Gen Intel® Core
TM
Processors).
Installing the M.2_SSD (NGFF) Module

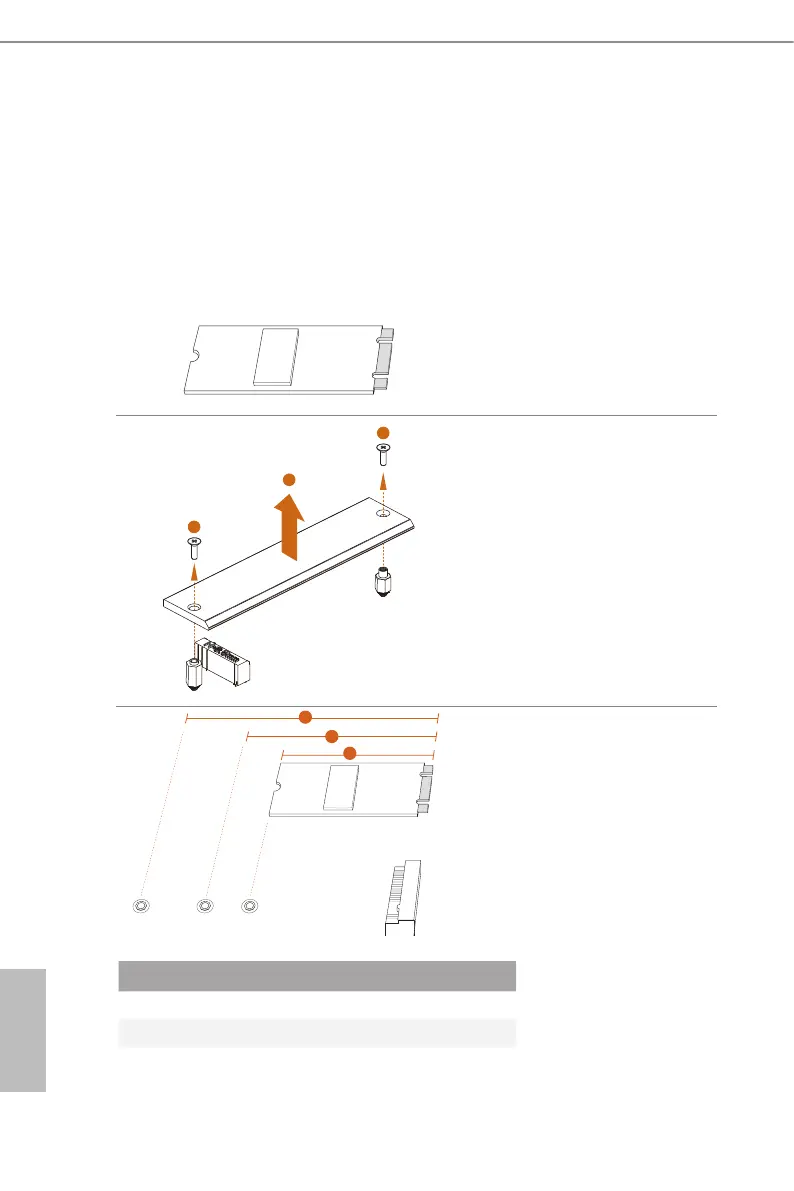

Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
1
2
1
Step 2
Before installing a M.2 (NGFF)
SSD module, please loosen
the screws to remove the M.2
heatsink.
*Please remove the protective
lms on the bottom side of the
M.2 heatsink before you install
a M.2 SSD module.
1
2
3
ABC
Step 3
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
