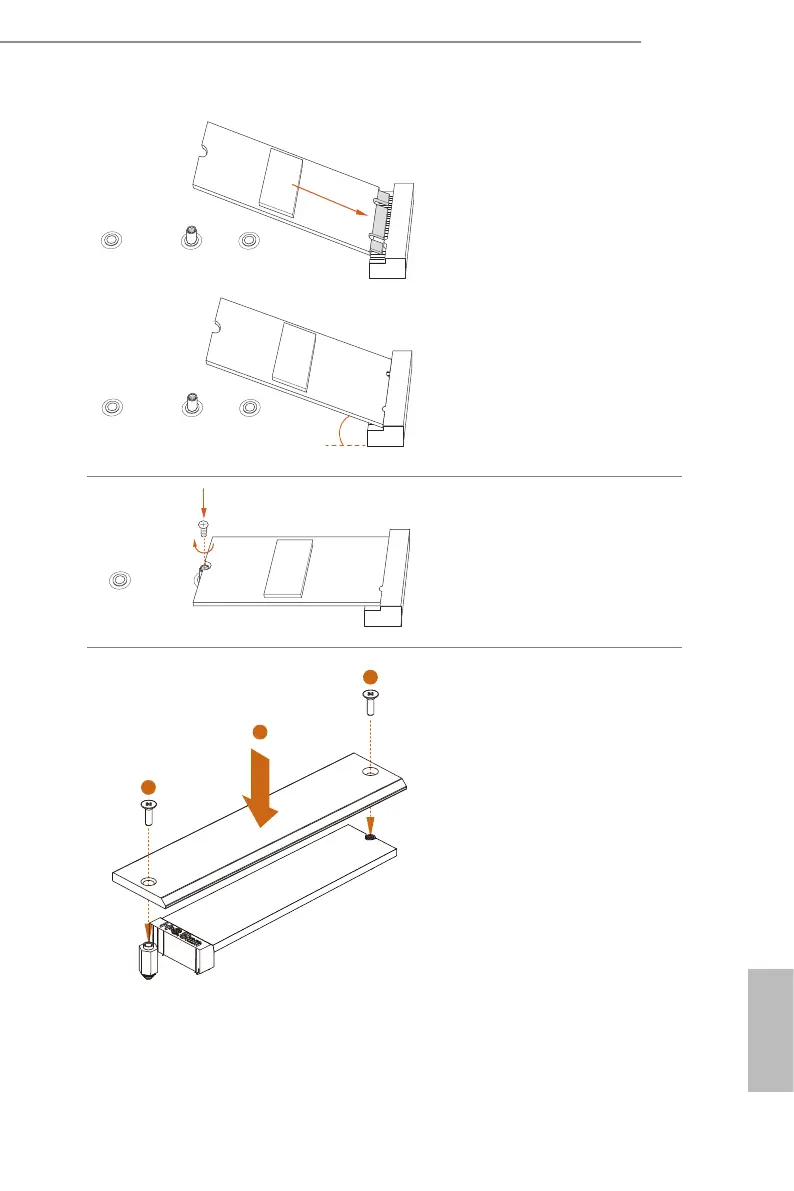

Step 4
Prepare the M.2 stando that comes
with the package. en hand tighten
the stando into the desired nut
location on the motherboard. Align
and gently insert the M.2 (NGFF)
SSD module into the M.2 slot. Please
be aware that the M.2 (NGFF) SSD
module only ts in one orientation.
NUT1NUT2
C
Step 5
Tighten the screw that comes with
the package with a screwdriver to
secure the module into place.
2
1
2
Step 6
Tighten the screw with a screwdriver
to secure the module and M.2
heatsink into place. Please do
not overtighten the screw as this
might damage the module and M.2
heatsink.
